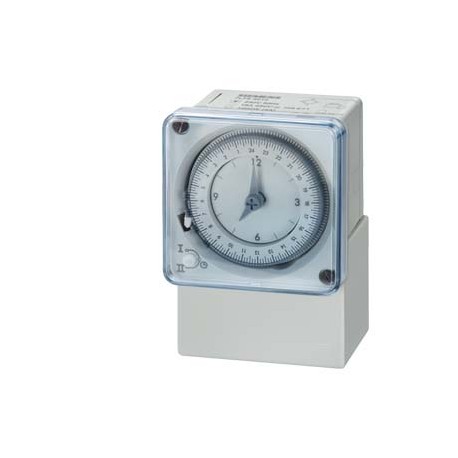

SIEMENS 7LF5301-0 7LF5301-0 SIEMENS Synchronous time switch Day 1 change-over contact 230V/50Hz Surface-mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7LF5301-0 SIEMENS Synchronous time switch Day 1 change-over contact 230V/50Hz Surface-mounting

7LF5301-0

53010

SIEMENS

1 Pcs.

Synchronous time switch Day 1 change-over contact 230V/50Hz Surface-mounting Mechanical time switch w/synchronous motor, daily dial, 1 switched contact, 230V/50Hz, 16A, p/surface mount. Cancelations and returns limited. Consult conditions.

Automation > Analogous time switch for distribution board
Other Modular Systems

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Technical data

Synchronous time switch Day 1 change-over contact 230V/50Hz Surface-mounting
Model
product brand nameSENTRON
product designationTimers
design of the productDay
design of the switching functionCO contact
General technical data
principle of operation
● line-synchronousYes
● quartz-controlledNo
shortest switching time interval / of channel 130 min
Supply voltage
supply voltage / initial value230 V
supply voltage / full-scale value230 V
type of voltage / of the supply voltageAC
supply voltage frequency
● minimum50 Hz
● maximum50 Hz
Protection class
protection class IPIP20
Switching capacity
switching capacity current / at AC / at 250 V / rated value16 A
Product details
product feature / floating switching contactYes
Product function
product function
● 60 min time programNo
● automatic daylight-saving adjustmentNo
● direct operationYes
● annual time programNo
● switching preselectionYes
● 24 hr time programYes
● weekly time programNo
Number
number of channels1
Mechanical Design
height110 mm
width69 mm
depth34 mm
fastening methodothers
net weight196 g

Downloads and manuals

General Product ApprovalDeclaration of Conformityother

Confirmation

VDE

EAC

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Miscellaneous

other

Environmental Confirmations

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications
Date
5/8/2022


Additional data

Product
Article Number (Market Facing Number)7LF5301-0
Product DescriptionSynchronous time switch Day 1 change-over contact 230V/50Hz Surface-mounting
Product family7LF5 Mechanical Time Switches
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group13D / 1BK
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works1 Day/Days
Net Weight (kg)0,198 Kg
Packaging Dimension74,00 x 110,00 x 63,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869335704
UPCNot available
Commodity Code91070000
LKZ_FDB/ CatalogIDLV10.1
Product Group5523
Group CodeP310
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-20-01-09
eClass7.127-20-01-09
eClass827-20-01-09
eClass927-20-01-09
eClass9.127-20-01-09
ETIM5EC002304
ETIM6EC002304
ETIM7EC002304
ETIM8EC002304

ETIM data

ETIM: EC002304 - Analogous time switch for distribution board

Value Unit
Mounting method (EF000003) Other
Number of channels (EF000259) 1
Supply voltage (EF004127) ['230', '230']V
Voltage type of supply voltage (EF002991) AC
Frequency supply voltage (EF004687) ['50', '50']Hz
Autonomy in hours (EF004721) -
Autonomy in years (EF004720) -
Accuracy per day (EF006325) -s
60 min. program (EF002964) false
24 h program (EF002965) true
Weekly program (EF001184) false
Annual program (EF001185) false
Mains synchronous (EF002973) true
Quartz controlled (EF002974) false
Contact type (EF001587) Change-over contact
Shortest switching time channel 1 (EF004855) 30.0min
Program shift divide 1 (EF005181) 10.0min
Automatic switching summer-/winter time (EF002977) false
Manual operation (EF002978) true
Switching preselection (EF002979) true
Nominal switching current at 250 V AC (EF005126) 16A
Potential free switch contact (EF003626) true
Degree of protection (IP) (EF005474) IP20
Width in number of modular spacings (EF002950) -
Width (EF000008) 69.0mm
Height (EF000040) 110.0mm
Depth (EF000049) 34.0mm
Shortest switching time channel 2 (EF004856) -min
Program shift divide 2 (EF005182) -min
