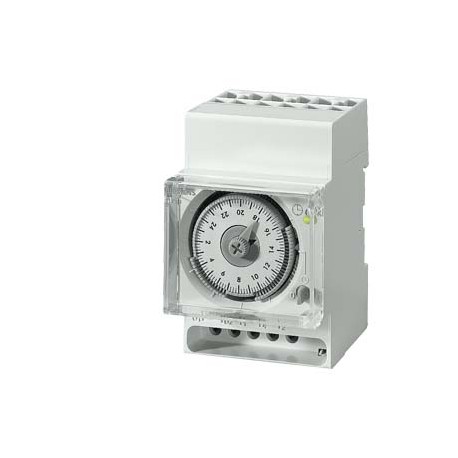

7LF5300-5 SIEMENS Synchronous time switch Day 1 change-over contact 230V/50Hz 3 MW
7LF5300-5
53005
SIEMENS
1 Pcs.
Automation > Analogous time switch for distribution board
Other Modular Systems
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 7LF5300-5 SIEMENS Synchronous time switch Day 1 change-over contact 230V/50Hz 3 MW is a line-synchronous time switch designed to control electrical loads on a daily schedule within industrial enclosures. Engineers utilize synchronous time switches to govern equipment cycles where mains frequency ensures precise long-term timekeeping. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- product designation: Timers
- design of the product: Days
- design of the switching function: CO contact
- ● line-synchronous: Yes
- ● quartz-controlled: No
- shortest switching time interval / of channel 1: 30 min
- Supply voltage supply voltage / initial value: 230 V
- supply voltage / full-scale value: 230 V
- type of voltage / of the supply voltage: AC
- ● minimum: 50 Hz
- ● maximum: 50 Hz
- Protection class protection class IP: IP20
- Product details product feature / floating switching contact: Yes
- ● 60 min time program: No
- ● automatic daylight-saving adjustment: No
- ● direct operation: Yes
More info
▲Technical data
Additional data
| Product | |||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 7LF5300-5 | ||||||||||||||||||||||||||||||
| Product Description | Synchronous time switch Day 1 change-over contact 230V/50Hz 3 MW | ||||||||||||||||||||||||||||||
| Product family | 7LF5 Mechanical Time Switches | ||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 13D / 1BK | ||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||
| Standard lead time ex-works | 1 Day/Days | ||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,147 Kg | ||||||||||||||||||||||||||||||
| Packaging Dimension | 56,00 x 97,00 x 83,00 | ||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||
| EAN | 4001869335742 | ||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||
| Commodity Code | 91070000 | ||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | ||||||||||||||||||||||||||||||
| Product Group | 5523 | ||||||||||||||||||||||||||||||
| Group Code | P310 | ||||||||||||||||||||||||||||||
| Country of origin | Germany | ||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 | ||||||||||||||||||||||||||||||
| Product class | B: return restricted, please contact your Siemens partner/contact | ||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||
ETIM data
ETIM: EC002304 - Analogous time switch for distribution board
| Value | Unit | |
|---|---|---|
| Mounting method (EF000003) | DIN rail | |
| Number of channels (EF000259) | 1 | |
| Supply voltage (EF004127) | ['230', '230'] | V |
| Voltage type of supply voltage (EF002991) | AC | |
| Frequency supply voltage (EF004687) | ['50', '50'] | Hz |
| Autonomy in hours (EF004721) | - | |
| Autonomy in years (EF004720) | - | |
| Accuracy per day (EF006325) | - | s |
| 60 min. program (EF002964) | false | |
| 24 h program (EF002965) | true | |
| Weekly program (EF001184) | false | |
| Annual program (EF001185) | false | |
| Mains synchronous (EF002973) | true | |
| Quartz controlled (EF002974) | false | |
| Contact type (EF001587) | Change-over contact | |
| Shortest switching time channel 1 (EF004855) | 30.0 | min |
| Program shift divide 1 (EF005181) | 15.0 | min |
| Automatic switching summer-/winter time (EF002977) | false | |
| Manual operation (EF002978) | true | |
| Switching preselection (EF002979) | true | |
| Nominal switching current at 250 V AC (EF005126) | 16 | A |
| Potential free switch contact (EF003626) | true | |
| Degree of protection (IP) (EF005474) | IP20 | |
| Width in number of modular spacings (EF002950) | 3 | |
| Width (EF000008) | 53.0 | mm |
| Height (EF000040) | 83.0 | mm |
| Depth (EF000049) | 64.0 | mm |
| Shortest switching time channel 2 (EF004856) | - | min |
| Program shift divide 2 (EF005182) | - | min |
