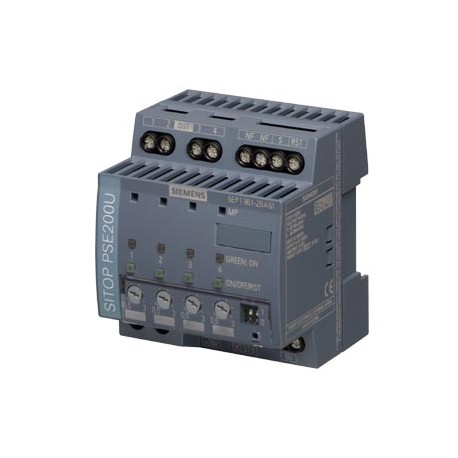

6EP1961-2BA61 SIEMENS SITOP PSE200U 3 A NEC CLASS 2 Selectivity module 4-channel input: DC 24 V/12 A output:..
6EP1961-2BA61
19612
SIEMENS
1 Pcs.
Automation > Current monitoring relay
Power supplies
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Siemens SITOP selectivity module (6EP1961-2BA61) partitions 24V DC power supply outputs into multiple protected paths, preventing a single short circuit or overload from disabling an entire automation network. Panel builders utilize these modules to enhance system availability and selectively disconnect faulty load circuits while maintaining power to unaffected machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Product Article Number (Market Facing Number): 6EP1961-2BA61
- Product family: Selectivity module
- Product Lifecycle (PLM): PM300:Active Product
- Delivery information Export Control Regulations: AL : N / ECCN : N
- Standard lead time ex-works: 200 Day/Days
- Net Weight (kg): 0,170 Kg
- Packaging Dimension: 8,20 x 8,80 x 7,70
- Package size unit of measure: CM
- Quantity Unit: 1 Piece
- Packaging Quantity: 1
- Additional Product Information EAN: 4025515154921
- UPC: 804766370915
- Commodity Code: 85363010
- LKZ_FDB/ CatalogID: KT10-PE
- Product Group: 4214
- Group Code: R315
More info
▲Additional data
| Product | |||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 6EP1961-2BA61 | ||||||||||||||||||||||||||||||
| Product Description | SITOP PSE200U 3 A NEC Class 2 Selectivity module 4-channel input: 24 V DC/12 A output: 24 V/4x 3 A NEC class 2 threshold value adjustable 0.5-3 A with status message for each output *Ex approval no longer available* | ||||||||||||||||||||||||||||||
| Product family | Selectivity module | ||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 586 / 586 | ||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||
| Standard lead time ex-works | 200 Day/Days | ||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,170 Kg | ||||||||||||||||||||||||||||||
| Packaging Dimension | 8,20 x 8,80 x 7,70 | ||||||||||||||||||||||||||||||
| Package size unit of measure | CM | ||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||
| EAN | 4025515154921 | ||||||||||||||||||||||||||||||
| UPC | 804766370915 | ||||||||||||||||||||||||||||||
| Commodity Code | 85363010 | ||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | KT10-PE | ||||||||||||||||||||||||||||||
| Product Group | 4214 | ||||||||||||||||||||||||||||||
| Group Code | R315 | ||||||||||||||||||||||||||||||
| Country of origin | Austria | ||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 16.12.2016 | ||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||
ETIM data
ETIM: EC001440 - Current monitoring relay
| Value | Unit | |
|---|---|---|
| Current measurement range (EF000417) | - | A |
| Type of electric connection (EF003961) | Screw connection | |
| With detachable clamps (EF003340) | false | |
| Single-phase under current possible (EF003405) | - | |
| Three-phase under current possible (EF003406) | - | |
| Single-phase over current possible (EF003407) | - | |
| Three-phase over current possible (EF003408) | - | |
| Single-phase hysteresis possible (EF003394) | - | |
| Three-phase hysteresis possible (EF003395) | - | |
| Contains function DC-voltage under current (EF003409) | false | |
| Contains function DC-voltage over current (EF003410) | true | |
| Function DC-current hysteresis (EF003411) | true | |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['-', '-'] | V |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['-', '-'] | V |
| Rated control supply voltage Us at DC (EF003980) | ['22', '30'] | V |
| Voltage type for actuating (EF008242) | DC | |
| Min. adjustable delay-on energization time (EF008190) | - | s |
| Max. permitted delay-on energization time (EF008189) | 5.0 | s |
| Min. adjustable off-delay time (EF008192) | - | s |
| Max. permitted off-delay time (EF008191) | - | s |
| Number of contacts as normally closed contact (EF008255) | 0 | |
| Number of contacts as normally open contact (EF008256) | 0 | |
| Number of contacts as change-over contact (EF008257) | 0 | |
| External current transformer (EF001923) | - | |
| Width (EF000008) | 72.0 | mm |
| Height (EF000040) | 80.0 | mm |
| Depth (EF000049) | 72.0 | mm |
