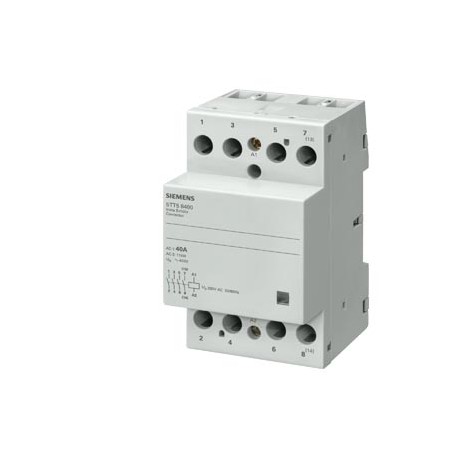

SIEMENS 5TT5853-2 5TT5853-2 SIEMENS INSTA contactor with 4 NC contacts Contact for 230 V AC, 400V 63A Control 24 V AC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

5TT5853-2 SIEMENS INSTA contactor with 4 NC contacts Contact for 230 V AC, 400V 63A Control 24 V AC

5TT5853-2

58532

SIEMENS

1 Pcs.

INSTA contactor with 4 NC contacts Contact for 230 V AC, 400V 63A Control 24 V AC Installation contactor, 70 mm, 4NC contacts, 24V AC drive, 63A, s/manual control. Cancelations and returns limited. Consult conditions.

Automation > Installation contactor for distribution board
Other Modular Systems

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Additional data

Product
Article Number (Market Facing Number)5TT5853-2
Product DescriptionINSTA contactor with 4 NC contacts Contact for 230 V AC, 400V 63A Control 24 V AC
Product family5TT5 Insta Contactors, AC Technology
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group12F / 1BK
Surcharge for Raw MaterialsNone
Metal FactorL-P-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works5 Day/Days
Net Weight (kg)0,396 Kg
Packaging Dimension94,00 x 57,00 x 82,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869344218
UPCNot available
Commodity Code85362010
LKZ_FDB/ CatalogIDLV10.1
Product Group5528
Group CodeP310
Country of originSlovenia
Compliance with the substance restrictions according to RoHS directiveSince: 01.01.2006
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-14-23-08
eClass7.127-14-23-08
eClass827-14-23-08
eClass927-14-23-08
eClass9.127-14-23-08
ETIM5EC001653
ETIM6EC001653
ETIM7EC001653
ETIM8EC001653

ETIM data

ETIM: EC001653 - Installation contactor for distribution board

Value Unit
Rated operating voltage (EF001435) ['440', '440']V
Rated operation current (EF007679) 63.0A
Utility category (EF004723) -
Rated excitation voltage (EF008409) ['24', '24']V
Voltage type (operating voltage) (EF005294) AC
Voltage type (excitation voltage) (EF005293) AC
Number of contacts as normally open contact (EF008256) 0
Number of contacts as normally closed contact (EF008255) 4
Max. incandescent lamp load (EF004952) 5000W
Max. load fluorescent lamp (EF004971) -VA
Max. load fluorescent lamp (Duo circuit) (EF004972) -VA
Max. load fluorescent lamp (parallel compensated) (EF004973) -VA
Slider for hand switch (EF005240) false
Number of modular spacings (EF004443) 3
Built-in depth (EF000218) 64.0mm
Additional equipment possible (EF008148) true
Degree of protection (IP) (EF005474) IP20
