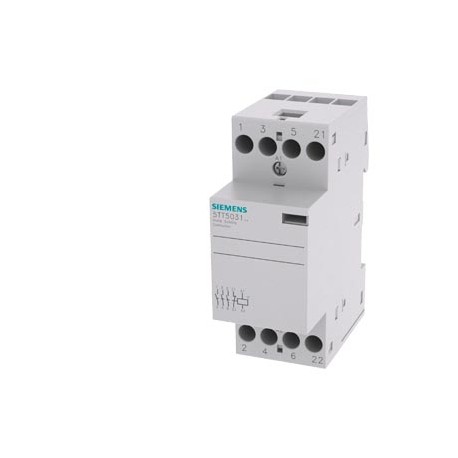

5TT5831-2 SIEMENS INSTA contactor with 3 NO contacts and 1 NC Contact for 230 V AC, 400V 25A Control 24 V AC
5TT5831-2
58312
SIEMENS
1 Pcs.
INSTA contactor with 3 NO contacts and 1 NC Contact for 230 V AC, 400V 25A Control 24 V AC
Installation contactor, 70 mm, contacts 3NA+1NC, drive 24V AC, 25A, s/manual control. Manufactured to order. Non-Cancelable Non-Returnable.
Automation > Installation contactor for distribution board
Other Modular Systems
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Siemens 5TT5831-2 Insta contactor functions as an electrically controlled switch commonly integrated into modular panels to automate building services like lighting circuits and power distribution.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- product designation: Insta contactor
- design of the product: 3 NO contacts 1 NC contact
- type of voltage / of the operating voltage: AC
- type of voltage / of the operating voltage / for actuation: AC
- ● minimum: 440 V
- ● maximum: 440 V
- Protection class protection class IP: IP20
- Current operational current / at AC / rated value: 25 A
- ● rated value: 24 V
- ● rated value / maximum: 24 V
- number of NC contacts: 1
- number of NO contacts: 3
- product extension / installable / supplementary devices: Yes
- Mechanical Design height: 90 mm
- width: 36 mm
- depth: 71 mm
More info
▲Technical data
Additional data
| Product | |||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 5TT5831-2 | ||||||||||||||||||||||||||||||
| Product Description | INSTA contactor with 3 NO contacts and 1 NC Contact for 230 V AC, 400V 25A Control 24 V AC | ||||||||||||||||||||||||||||||
| Product family | 5TT5 Insta Contactors, AC Technology | ||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 12F / 1BK | ||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||
| Metal Factor | L-P----- | ||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||
| Standard lead time ex-works | 5 Day/Days | ||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,262 Kg | ||||||||||||||||||||||||||||||
| Packaging Dimension | 94,00 x 40,00 x 82,00 | ||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||
| EAN | 4001869344010 | ||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||
| Commodity Code | 85362010 | ||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | ||||||||||||||||||||||||||||||
| Product Group | 5528 | ||||||||||||||||||||||||||||||
| Group Code | P310 | ||||||||||||||||||||||||||||||
| Country of origin | Slovenia | ||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 | ||||||||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | ||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||
ETIM data
ETIM: EC001653 - Installation contactor for distribution board
| Value | Unit | |
|---|---|---|
| Rated operating voltage (EF001435) | ['440', '440'] | V |
| Rated operation current (EF007679) | 25.0 | A |
| Utility category (EF004723) | - | |
| Rated excitation voltage (EF008409) | ['24', '24'] | V |
| Voltage type (operating voltage) (EF005294) | AC | |
| Voltage type (excitation voltage) (EF005293) | AC | |
| Number of contacts as normally open contact (EF008256) | 3 | |
| Number of contacts as normally closed contact (EF008255) | 1 | |
| Max. incandescent lamp load (EF004952) | 2000 | W |
| Max. load fluorescent lamp (EF004971) | - | VA |
| Max. load fluorescent lamp (Duo circuit) (EF004972) | - | VA |
| Max. load fluorescent lamp (parallel compensated) (EF004973) | - | VA |
| Slider for hand switch (EF005240) | false | |
| Number of modular spacings (EF004443) | 2 | |
| Built-in depth (EF000218) | 64.0 | mm |
| Additional equipment possible (EF008148) | true | |
| Degree of protection (IP) (EF005474) | IP20 |
