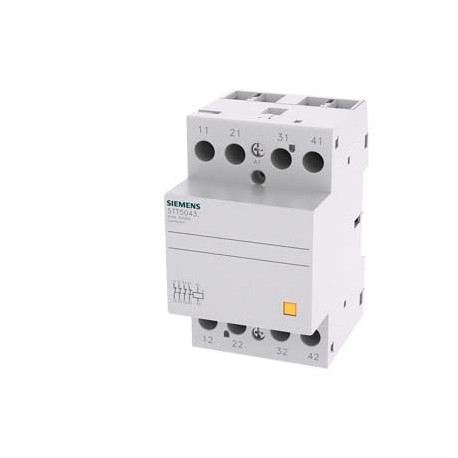

5TT5043-2 SIEMENS INSTA contactor with 4 NC contacts Contact for 230 V AC, 400V 40A Control AC/24 V DC
5TT5043-2
50432
SIEMENS
1 Pcs.
INSTA contactor with 4 NC contacts Contact for 230 V AC, 400V 40A Control AC/24 V DC
INSTALLATION CONTACTOR WITH 4 NC CONTACTS FOR AC 230, 400V 40A ACTIVIATION ACDC24V. Cancelations and returns limited. Consult conditions.
Automation > Installation contactor for distribution board
Other Modular Systems
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Siemens 5TT5043-2 Insta contactor acts as a remote-controlled switching device deployed in electrical distribution boards to manage heavy electrical loads in response to automated control signals.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- product designation: Insta contactor
- design of the product: 4 NC contacts
- type of voltage / of the operating voltage: AC
- type of voltage / of the operating voltage / for actuation: AC/DC
- ● minimum: 400 V
- ● maximum: 400 V
- Protection class protection class IP: IP20
- Current operational current / at AC / rated value: 40 A
- ● rated value: 24 V
- ● rated value / maximum: 24 V
- ● at DC / rated value: 24 V
- number of NC contacts: 4
- number of NO contacts: 0
- product extension / installable / supplementary devices: Yes
- Mechanical Design height: 90 mm
- width: 53.5 mm
More info
▲Technical data
Additional data
| Product | |||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 5TT5043-2 | ||||||||||||||||||||||||||||||
| Product Description | INSTA contactor with 4 NC contacts Contact for 230 V AC, 400V 40A Control AC/24 V DC | ||||||||||||||||||||||||||||||
| Product family | 5TT5 Insta Contactors, AC/DC Technology | ||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 12F / 1BK | ||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||
| Metal Factor | L-B----- | ||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||
| Standard lead time ex-works | 2 Day/Days | ||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,443 Kg | ||||||||||||||||||||||||||||||
| Packaging Dimension | 82,00 x 94,00 x 57,00 | ||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||
| EAN | 4001869435251 | ||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||
| Commodity Code | 85362010 | ||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | ||||||||||||||||||||||||||||||
| Product Group | 5528 | ||||||||||||||||||||||||||||||
| Group Code | P310 | ||||||||||||||||||||||||||||||
| Country of origin | Slovenia | ||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.02.2011 | ||||||||||||||||||||||||||||||
| Product class | B: return restricted, please contact your Siemens partner/contact | ||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||
ETIM data
ETIM: EC001653 - Installation contactor for distribution board
| Value | Unit | |
|---|---|---|
| Rated operating voltage (EF001435) | ['400', '400'] | V |
| Rated operation current (EF007679) | 40.0 | A |
| Utility category (EF004723) | - | |
| Rated excitation voltage (EF008409) | ['24', '24'] | V |
| Voltage type (operating voltage) (EF005294) | AC | |
| Voltage type (excitation voltage) (EF005293) | AC/DC | |
| Number of contacts as normally open contact (EF008256) | 0 | |
| Number of contacts as normally closed contact (EF008255) | 4 | |
| Max. incandescent lamp load (EF004952) | - | W |
| Max. load fluorescent lamp (EF004971) | - | VA |
| Max. load fluorescent lamp (Duo circuit) (EF004972) | - | VA |
| Max. load fluorescent lamp (parallel compensated) (EF004973) | - | VA |
| Slider for hand switch (EF005240) | false | |
| Number of modular spacings (EF004443) | 3 | |
| Built-in depth (EF000218) | 64.0 | mm |
| Additional equipment possible (EF008148) | true | |
| Degree of protection (IP) (EF005474) | IP20 |
