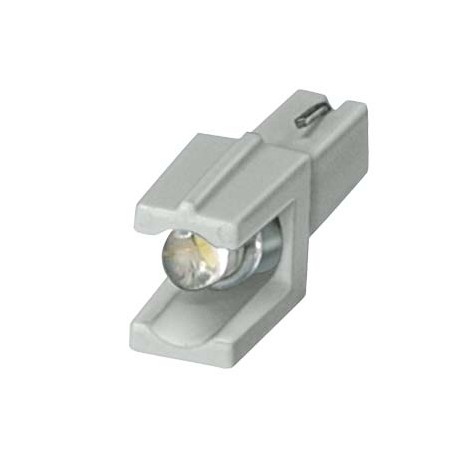

SIEMENS 5TG8058-0 5TG8058-0 SIEMENS LED lamp White 230 V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

5TG8058-0 SIEMENS LED lamp White 230 V

5TG8058-0

80580

SIEMENS

5 Pcs.

LED lamp White 230 V WHITE LED LAMP 230 V ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 5 Units ** ). Cancelations and returns limited. Consult conditions.

Automation > Lamp holder block for control circuit devices
Other Modular Systems

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Technical data

LED lamp White 230 V
Model
product brand nameSENTRON
product designationLED lamp
type of light sourceLED
socket designothers
type of voltage / of the operating voltage / for actuationAC
Supply voltage
operating voltage
● at AC / at 50 Hz / rated value / minimum230 V
● at AC / at 50 Hz / rated value / maximum230 V
● at AC / at 60 Hz / rated value / minimum230 V
● at AC / at 60 Hz / rated value / maximum230 V
Appearance
color / of the light sourceclear
Product details
product component
● diodeYes
● lamp transformerNo
● light sourceYes
● series resistorNo
Connections
type of electrical connection / for auxiliary circuitothers
Mechanical Design
fastening methodothers
net weight5 g

Downloads and manuals

General Product ApprovalDeclaration of Conformityother

Confirmation

EAC

EC/EU-Declaration of Conformity

UK Declaration of Conformity

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications
Date
5/15/2022


Additional data

Product
Article Number (Market Facing Number)5TG8058-0
Product DescriptionLED lamp White 230 V
Product familySENTRON 5TE4 Pushbuttons
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group12E / 1BK
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works15 Day/Days
Net Weight (kg)0,004 Kg
Packaging Dimension29,00 x 93,00 x 80,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Minimum order quantity5
Additional Product Information
EAN4001869396897
UPCNot available
Commodity Code85414100
LKZ_FDB/ CatalogIDLV10.1
Product Group5520
Group CodeP310
Country of originRomania
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2008
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-12-09
eClass7.127-37-12-09
eClass827-37-12-09
eClass927-37-12-09
eClass9.127-37-12-09
ETIM5EC000204
ETIM6EC000204
ETIM7EC000204
ETIM8EC000204
IDEA44771
UNSPSC1539-12-15-44

ETIM data

ETIM: EC000204 - Lamp holder block for control circuit devices

Value Unit
Transformer integrated (EF001358) false
With integrated voltage decreasing resistor (EF001399) false
With light source (EF005905) true
With integrated diode (EF001400) true
Lamp holder (EF000048) Other
Rated voltage Ue at AC 50 Hz (EF007029) ['230', '230']V
Rated voltage Ue at AC 60 Hz (EF007030) ['230', '230']V
Rated voltage Ue at DC (EF007031) ['-', '-']V
Voltage type for actuating (EF008242) AC
Lamp type (EF002423) LED
Connection type auxiliary circuit (EF006820) Other
Colour lamp (EF001402) Clear
Type of fastening (EF002442) Other
