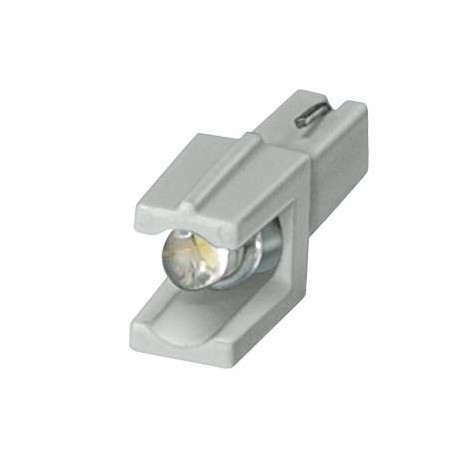

5TG8057-0 SIEMENS LED lamp White 115 V
5TG8057-0
80570
SIEMENS
5 Pcs.
Automation > Lamp holder block for control circuit devices
Other Modular Systems
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Siemens LED lamp provides durable, energy-efficient illumination for pilot lights and operator panels across commercial and industrial facilities. These indicator lamps are installed within control stations to confirm power status or operational cycles. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- LED lamp White 115 V Model product brand name: SENTRON
- product designation: LED lamp
- type of light source: LED
- socket design: others
- type of voltage / of the operating voltage / for actuation: AC/DC
- ● at AC / at 50 Hz / rated value / minimum: 115 V
- ● at AC / at 50 Hz / rated value / maximum: 115 V
- ● at AC / at 60 Hz / rated value / maximum: 115 V
- ● at AC / at 60 Hz / rated value / minimum: 115 V
- ● at DC / rated value / minimum: 115 V
- ● at DC / rated value / maximum: 115 V
- Appearance color / of the light source: clear
- ● diode: Yes
- ● lamp transformer: No
- ● light source: Yes
- ● series resistor: No
More info
▲Technical data
Additional data
| Product | |||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 5TG8057-0 | ||||||||||||||||||||||||||||||||||||
| Product Description | LED lamp White 115 V | ||||||||||||||||||||||||||||||||||||
| Product family | SENTRON 5TE4 Pushbuttons | ||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 12E / 1BK | ||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 15 Day/Days | ||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,005 Kg | ||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 29,00 x 93,00 x 80,00 | ||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
| Minimum order quantity | 5 | ||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||
| EAN | 4001869396842 | ||||||||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||||||||
| Commodity Code | 85414100 | ||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | ||||||||||||||||||||||||||||||||||||
| Product Group | 5520 | ||||||||||||||||||||||||||||||||||||
| Group Code | P310 | ||||||||||||||||||||||||||||||||||||
| Country of origin | Romania | ||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2008 | ||||||||||||||||||||||||||||||||||||
| Product class | B: return restricted, please contact your Siemens partner/contact | ||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000204 - Lamp holder block for control circuit devices
| Value | Unit | |
|---|---|---|
| Transformer integrated (EF001358) | false | |
| With integrated voltage decreasing resistor (EF001399) | false | |
| With light source (EF005905) | true | |
| With integrated diode (EF001400) | true | |
| Lamp holder (EF000048) | Other | |
| Rated voltage Ue at AC 50 Hz (EF007029) | ['115', '115'] | V |
| Rated voltage Ue at AC 60 Hz (EF007030) | ['115', '115'] | V |
| Rated voltage Ue at DC (EF007031) | ['115', '115'] | V |
| Voltage type for actuating (EF008242) | AC/DC | |
| Lamp type (EF002423) | LED | |
| Connection type auxiliary circuit (EF006820) | Other | |
| Colour lamp (EF001402) | Clear | |
| Type of fastening (EF002442) | Other |
