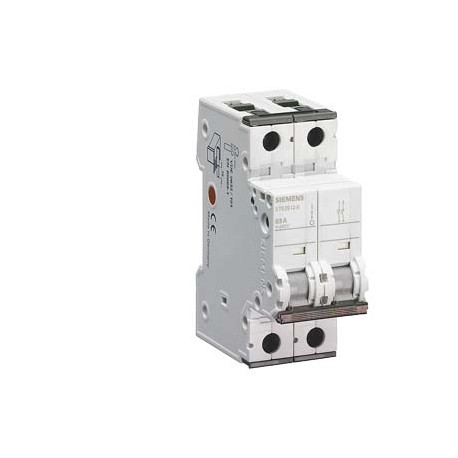

5TE2812-0 SIEMENS Switch 400V 2-pole 125 A
5TE2812-0
28120
SIEMENS
1 Pcs.
Connectors > Switch disconnector
Other Modular Systems
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Operated via a toggle handle, the 5TE2812-0 SIEMENS Switch 400V 2-pole 125 A acts as a crucial mechanical switching unit for power management inside distribution boards. These modular units facilitate straightforward ON and OFF operational control across commercial and industrial electrical distribution setups.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Switch 400V 2-pole 125 A Model product brand name: SENTRON
- product designation: ON and OFF switch
- design of the actuating element: toggle handle
- type of the driving mechanism / motor drive: No
- General technical data number of poles: 2
- Protection class protection class IP: IP20
- Main circuit operational current / rated value: 125 A
- number of NC contacts / for auxiliary contacts: 0
- number of NO contacts / for auxiliary contacts: 2
- Suitability suitability for integration / distribution board: Yes
- ● main switch: No
- ● switch disconnector: Yes
- ● EMERGENCY OFF switch: No
- ● safety switch: No
- ● maintenance/repair switch: No
- Product details product feature / interlock: No
More info
▲Technical data
Additional data
| Product | |||
| Article Number (Market Facing Number) | 5TE2812-0 | ||
| Product Description | Switch 400V 2-pole 125 A | ||
| Product family | Not available | ||
| Product Lifecycle (PLM) | PM300:Active Product | ||
| Price data | |||
| Region Specific PriceGroup / Headquarter Price Group | 13D / 1BK | ||
| Surcharge for Raw Materials | None | ||
| Metal Factor | L-P----- | ||
| Delivery information | |||
| Export Control Regulations | ECCN : N / AL : N | ||
| Standard lead time ex-works | 15 Day/Days | ||
| Net Weight (kg) | 0,489 Kg | ||
| Packaging Dimension | 96,00 x 59,00 x 84,00 | ||
| Package size unit of measure | MM | ||
| Quantity Unit | 1 Piece | ||
| Packaging Quantity | 1 | ||
| Additional Product Information | |||
| EAN | 4001869304953 | ||
| UPC | Not available | ||
| Commodity Code | 85362090 | ||
| LKZ_FDB/ CatalogID | LV10.1 | ||
| Product Group | 5520 | ||
| Group Code | P310 | ||
| Country of origin | Turkey | ||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 | ||
| Product class | B: return restricted, please contact your Siemens partner/contact | ||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||
| Classifications | |||
| Not available | |||
ETIM data
ETIM: EC000216 - Switch disconnector
| Value | Unit | |
|---|---|---|
| Colour control element (EF007167) | - | |
| Suitable for intermediate mounting (EF007264) | - | |
| Suitable for floor mounting (EF007243) | - | |
| Rated operating voltage (EF001435) | - | V |
| Number of switches (EF005586) | - | |
| Rated permanent current at AC-23, 400 V (EF011777) | - | A |
| Rated short-time withstand current lcw (EF007050) | - | kA |
| Suitable for distribution board installation (EF007262) | - | |
| Suitable for front mounting 4-hole (EF007247) | - | |
| Conditioned rated short-circuit current Iq (EF001444) | - | kA |
| Suitable for front mounting centre (EF007248) | - | |
| Rated operation power at AC-3, 400 V (EF001364) | - | kW |
| Rated permanent current at AC-21, 400 V (EF009165) | - | A |
| Version as reversing switch (EF009408) | - | |
| Switching power at 400 V (EF009166) | - | kW |
| Degree of protection (NEMA) (EF011959) | - | |
| Version as main switch (EF006981) | false | |
| Version as maintenance-/service switch (EF006986) | false | |
| Version as safety switch (EF006985) | false | |
| Version as emergency stop installation (EF006959) | false | |
| Max. rated operation voltage Ue AC (EF007355) | 400 | V |
| Rated permanent current Iu (EF001389) | 125.0 | A |
| Number of poles (EF001391) | 2 | |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 | |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 | |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 | |
| Motor drive optional (EF007386) | false | |
| Motor drive integrated (EF006697) | false | |
| Voltage release optional (EF007491) | false | |
| Device construction (EF008240) | Complete device in housing | |
| Type of control element (EF006976) | Rocker lever | |
| Interlockable (EF006281) | false | |
| Type of electrical connection of main circuit (EF006819) | Screw connection | |
| Degree of protection (IP), front side (EF003118) | IP20 | |
| Rated operation power at AC-23, 400 V (EF007027) | - | kW |
