View larger
Images are for illustrative purposes only. Please refer to data sheet for details

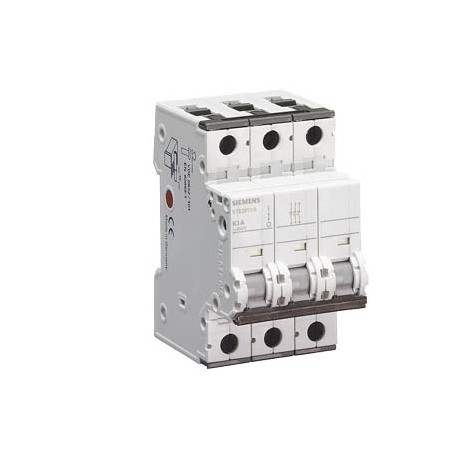

5TE2513-0 SIEMENS Switch 400V 3-pole 63 A
5TE2513-0
25130
SIEMENS
1 Pcs.
Switch 400V 3-pole 63 A
SWITCH 400V 3POLOS 63A, T=70MM. Manufactured to order. Non-Cancelable Non-Returnable.
Connectors > Switch disconnector
Other Modular Systems
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Additional data
| Product | ||
| Article Number (Market Facing Number) | 5TE2513-0 | |
| Product Description | Switch 400V 3-pole 63 A | |
| Product family | Not available | |
| Product Lifecycle (PLM) | PM300:Active Product | |
| Price data | ||
| Region Specific PriceGroup / Headquarter Price Group | 13D / 1BK | |
| Surcharge for Raw Materials | None | |
| Metal Factor | L-P----- | |
| Delivery information | ||
| Export Control Regulations | ECCN : N / AL : N | |
| Standard lead time ex-works | 40 Day/Days | |
| Net Weight (kg) | 0,410 Kg | |
| Packaging Dimension | 58,00 x 94,00 x 84,00 | |
| Package size unit of measure | MM | |
| Quantity Unit | 1 Piece | |
| Packaging Quantity | 1 | |
| Additional Product Information | ||
| EAN | 4001869187648 | |
| UPC | Not available | |
| Commodity Code | 85362010 | |
| LKZ_FDB/ CatalogID | LV10.1 | |
| Product Group | 5520 | |
| Group Code | P310 | |
| Country of origin | Germany | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 | |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |
| Classifications | ||
| Not available | ||
ETIM data
ETIM: EC000216 - Switch disconnector
| Value | Unit | |
|---|---|---|
| Suitable for front mounting centre (EF007248) | - | |
| Suitable for intermediate mounting (EF007264) | - | |
| Version as reversing switch (EF009408) | - | |
| Switching power at 400 V (EF009166) | - | kW |
| Number of switches (EF005586) | - | |
| Rated permanent current at AC-23, 400 V (EF011777) | - | A |
| Rated short-time withstand current lcw (EF007050) | - | kA |
| Rated operation power at AC-3, 400 V (EF001364) | - | kW |
| Rated operating voltage (EF001435) | - | V |
| Rated permanent current at AC-21, 400 V (EF009165) | - | A |
| Colour control element (EF007167) | - | |
| Degree of protection (NEMA) (EF011959) | - | |
| Suitable for floor mounting (EF007243) | - | |
| Suitable for distribution board installation (EF007262) | - | |
| Conditioned rated short-circuit current Iq (EF001444) | - | kA |
| Suitable for front mounting 4-hole (EF007247) | - | |
| Version as main switch (EF006981) | false | |
| Version as maintenance-/service switch (EF006986) | false | |
| Version as safety switch (EF006985) | false | |
| Version as emergency stop installation (EF006959) | false | |
| Max. rated operation voltage Ue AC (EF007355) | 400 | V |
| Rated permanent current Iu (EF001389) | 63.0 | A |
| Number of poles (EF001391) | 3 | |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 | |
| Number of auxiliary contacts as normally open contact (EF001376) | 3 | |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 | |
| Motor drive optional (EF007386) | false | |
| Motor drive integrated (EF006697) | false | |
| Voltage release optional (EF007491) | false | |
| Device construction (EF008240) | Complete device in housing | |
| Type of control element (EF006976) | Rocker lever | |
| Interlockable (EF006281) | false | |
| Type of electrical connection of main circuit (EF006819) | Screw connection | |
| Degree of protection (IP), front side (EF003118) | IP20 | |
| Rated operation power at AC-23, 400 V (EF007027) | - | kW |
