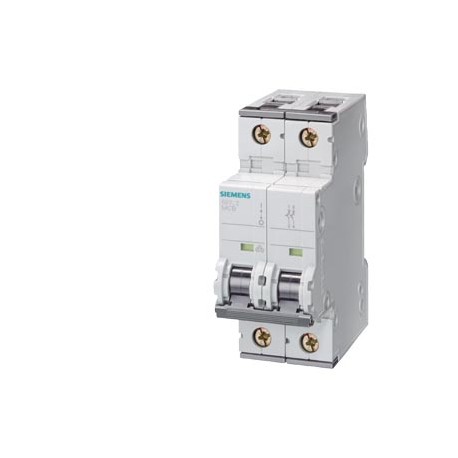

5SY8563-8 SIEMENS Miniature circuit breaker 230 V D 70 mm 25 kA according to EN 60947-2, 1P+N, D63
5SY8563-8
85638
SIEMENS
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Industrial circuit breakers from 6 kA
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for advanced electrical protection, the Siemens 5SY8563-8 miniature circuit breaker delivers reliable interruption performance under high fault current conditions. Industrial facilities rely on these robust switching devices to protect specialized machinery and complex power distribution networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Product Article Number (Market Facing Number): 5SY8563-8
- Product Description: Miniature circuit breaker 230 V D=70 mm 25 kA according to EN 60947-2, 1P+N, D63
- Product family: Basic Devices
- Product Lifecycle (PLM): PM300:Active Product
- Metal Factor: L-O-----
- Delivery information Export Control Regulations: AL : N / ECCN : N
- Standard lead time ex-works: 95 Day/Days
- Net Weight (kg): 0,336 Kg
- Packaging Dimension: 40,00 x 92,00 x 84,00
- Package size unit of measure: MM
- Quantity Unit: 1 Piece
- Packaging Quantity: 1
- Additional Product Information EAN: 4001869264691
- UPC: Not available
- Commodity Code: 85362010
- LKZ_FDB/ CatalogID: LV10.1
More info
▲Additional data
| Product | |||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 5SY8563-8 | ||||||||||||||||||||||||||||||||||||
| Product Description | Miniature circuit breaker 230 V D=70 mm 25 kA according to EN 60947-2, 1P+N, D63 | ||||||||||||||||||||||||||||||||||||
| Product family | Basic Devices | ||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 12C / 1AA | ||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
| Metal Factor | L-O----- | ||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 95 Day/Days | ||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,336 Kg | ||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 40,00 x 92,00 x 84,00 | ||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||
| EAN | 4001869264691 | ||||||||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||||||||
| Commodity Code | 85362010 | ||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | ||||||||||||||||||||||||||||||||||||
| Product Group | 5526 | ||||||||||||||||||||||||||||||||||||
| Group Code | P310 | ||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | ||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2006 | ||||||||||||||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | ||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000042 - Miniature circuit breaker (MCB)
| Value | Unit | |
|---|---|---|
| Rated insulation voltage Ui (EF001366) | - | V |
| Rated impulse withstand voltage Uimp (EF011980) | - | kV |
| Release characteristic (EF000889) | D | |
| Number of poles (total) (EF008618) | 2 | |
| Number of protected poles (EF005548) | 1P+N | |
| Rated current (EF000227) | 63 | A |
| Rated voltage (EF000228) | 230 | V |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V (EF009557) | 20.0 | kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V (EF009558) | 20.0 | kA |
| Voltage type (EF000187) | AC/DC | |
| Frequency (EF000416) | ['50.0', '50.0'] | Hz |
| Current limiting class (EF002568) | 3 | |
| Suitable for flush-mounted installation (EF006573) | false | |
| Concurrently switching N-neutral (EF005997) | true | |
| Over voltage category (EF002569) | 3 | |
| Pollution degree (EF002570) | 3 | |
| Additional equipment possible (EF008148) | true | |
| Width in number of modular spacings (EF002950) | 2 | |
| Built-in depth (EF000218) | 70.0 | mm |
| Degree of protection (IP) (EF005474) | IP20 | |
| Ambient temperature during operating (EF007515) | ['-25', '55'] | °C |
| Connectable conductor cross section multi-wired (EF007343) | ['0.75', '35.0'] | mm² |
| Connectable conductor cross section solid-core (EF007337) | ['0.75', '35.0'] | mm² |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V (EF009555) | - | kA |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V (EF009556) | - | kA |
