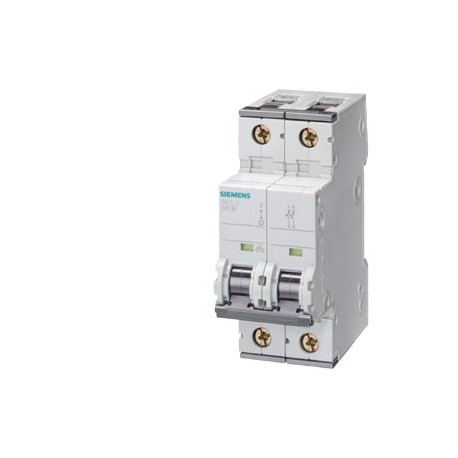

5SY8563-7 SIEMENS Miniature circuit breaker 230 V D 70 mm 25 kA according to EN 60947-2, 1P+N, C63
5SY8563-7
85637
SIEMENS
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Industrial circuit breakers from 6 kA
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 5SY8563-7 SIEMENS Miniature circuit breaker is an advanced switching device built to interrupt electrical currents during overloads and short-circuit faults in commercial and industrial installations.
These standard protective devices mount securely onto distribution boards to safeguard electrical cabling and connected equipment from thermal and magnetic stress. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- product designation: Miniature circuit breaker
- General technical data number of poles: 2
- design of pole: 1P+N
- tripping characteristic class: C
- mechanical service life (switching cycles) / typical: 10 000
- overvoltage category: III
- degree of pollution: 3
- Voltage type of voltage / of the operating voltage: AC
- ● with single-phase operation / at AC / rated value: 250 V
- ● at AC / rated value: 230 V
- value range / of the supply voltage frequency: 50/60 Hz
- operating voltage / at DC / rated value / maximum: 72 V
- Protection class protection class IP: IP20, with connected conductors
- ● at DC / according to IEC 60947-2 / rated value: 15 kA
- ● according to IEC 60947-2 / rated value: 25 kA
- ● at 45 °C / rated value: 63 A
More info
▲Technical data
Additional data
| Product | |||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 5SY8563-7 | ||||||||||||||||||||||||||||||||||||
| Product Description | Miniature circuit breaker 230 V D=70 mm 25 kA according to EN 60947-2, 1P+N, C63 | ||||||||||||||||||||||||||||||||||||
| Product family | Basic Devices | ||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 12B / 1AC | ||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
| Metal Factor | L-O----- | ||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 95 Day/Days | ||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,349 Kg | ||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 40,00 x 92,00 x 84,00 | ||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||
| EAN | 4001869264516 | ||||||||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||||||||
| Commodity Code | 85362010 | ||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | ||||||||||||||||||||||||||||||||||||
| Product Group | 5525 | ||||||||||||||||||||||||||||||||||||
| Group Code | P310 | ||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | ||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2006 | ||||||||||||||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | ||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000042 - Miniature circuit breaker (MCB)
| Value | Unit | |
|---|---|---|
| Rated insulation voltage Ui (EF001366) | - | V |
| Rated impulse withstand voltage Uimp (EF011980) | - | kV |
| Release characteristic (EF000889) | C | |
| Number of poles (total) (EF008618) | 2 | |
| Number of protected poles (EF005548) | 1P+N | |
| Rated current (EF000227) | 63 | A |
| Rated voltage (EF000228) | 230 | V |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V (EF009557) | 25.0 | kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V (EF009558) | 25.0 | kA |
| Voltage type (EF000187) | AC/DC | |
| Frequency (EF000416) | ['50.0', '50.0'] | Hz |
| Current limiting class (EF002568) | 3 | |
| Suitable for flush-mounted installation (EF006573) | false | |
| Concurrently switching N-neutral (EF005997) | true | |
| Over voltage category (EF002569) | 3 | |
| Pollution degree (EF002570) | 3 | |
| Additional equipment possible (EF008148) | true | |
| Width in number of modular spacings (EF002950) | 2 | |
| Built-in depth (EF000218) | 70.0 | mm |
| Degree of protection (IP) (EF005474) | IP20 | |
| Ambient temperature during operating (EF007515) | ['-25', '55'] | °C |
| Connectable conductor cross section multi-wired (EF007343) | ['0.75', '35.0'] | mm² |
| Connectable conductor cross section solid-core (EF007337) | ['0.75', '35.0'] | mm² |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V (EF009555) | - | kA |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V (EF009556) | - | kA |
