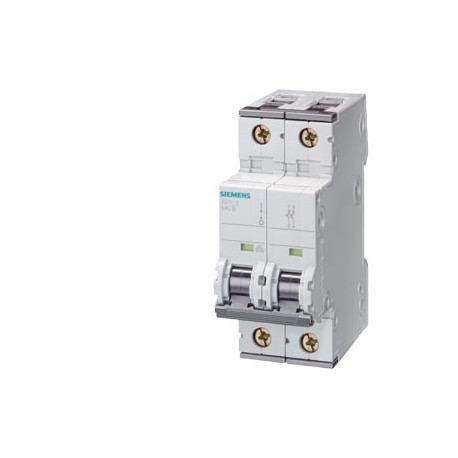

5SY8532-7 SIEMENS Miniature circuit breaker 230 V D 70 mm 25 kA according to EN 60947-2, 1P+N, C32
5SY8532-7
85327
SIEMENS
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Industrial circuit breakers from 6 kA
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Siemens 5SY8532-7 is a miniature circuit breaker built to provide robust protection against electrical faults in high-demand industrial power distribution systems.
Miniature circuit breakers disconnect faulty circuits rapidly to prevent damage to electrical infrastructure and connected machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- product designation: Miniature circuit breaker
- General technical data number of poles: 2
- design of pole: 1P+N
- tripping characteristic class: C
- mechanical service life (switching cycles) / typical: 10 000
- overvoltage category: III
- degree of pollution: 3
- Voltage type of voltage / of the operating voltage: AC
- ● with single-phase operation / at AC / rated value: 250 V
- ● at AC / rated value: 230 V
- value range / of the supply voltage frequency: 50/60 Hz
- operating voltage / at DC / rated value / maximum: 72 V
- Protection class protection class IP: IP20, with connected conductors
- ● at DC / according to IEC 60947-2 / rated value: 15 kA
- ● at DC / according to IEC 60947-2 / rated value: 30 kA
- ● at 45 °C / rated value: 32 A
More info
▲Technical data
Additional data
| Product | |||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 5SY8532-7 | ||||||||||||||||||||||||||||||||||||
| Product Description | Miniature circuit breaker 230 V D=70 mm 25 kA according to EN 60947-2, 1P+N, C32 | ||||||||||||||||||||||||||||||||||||
| Product family | Basic Devices | ||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 12B / 1AC | ||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
| Metal Factor | L-O----- | ||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 95 Day/Days | ||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,318 Kg | ||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 40,00 x 92,00 x 84,00 | ||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||
| EAN | 4001869264486 | ||||||||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||||||||
| Commodity Code | 85362010 | ||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | ||||||||||||||||||||||||||||||||||||
| Product Group | 5525 | ||||||||||||||||||||||||||||||||||||
| Group Code | P310 | ||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | ||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2006 | ||||||||||||||||||||||||||||||||||||
| Product class | B: return restricted, please contact your Siemens partner/contact | ||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000042 - Miniature circuit breaker (MCB)
| Value | Unit | |
|---|---|---|
| Rated impulse withstand voltage Uimp (EF011980) | - | kV |
| Rated insulation voltage Ui (EF001366) | - | V |
| Release characteristic (EF000889) | C | |
| Number of poles (total) (EF008618) | 2 | |
| Number of protected poles (EF005548) | 1P+N | |
| Rated current (EF000227) | 32 | A |
| Rated voltage (EF000228) | 230 | V |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V (EF009557) | 30.0 | kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V (EF009558) | 30.0 | kA |
| Voltage type (EF000187) | AC/DC | |
| Frequency (EF000416) | ['50.0', '50.0'] | Hz |
| Current limiting class (EF002568) | 3 | |
| Suitable for flush-mounted installation (EF006573) | false | |
| Concurrently switching N-neutral (EF005997) | true | |
| Over voltage category (EF002569) | 3 | |
| Pollution degree (EF002570) | 3 | |
| Additional equipment possible (EF008148) | true | |
| Width in number of modular spacings (EF002950) | 2 | |
| Built-in depth (EF000218) | 70.0 | mm |
| Degree of protection (IP) (EF005474) | IP20 | |
| Ambient temperature during operating (EF007515) | ['-25', '55'] | °C |
| Connectable conductor cross section multi-wired (EF007343) | ['0.75', '35.0'] | mm² |
| Connectable conductor cross section solid-core (EF007337) | ['0.75', '35.0'] | mm² |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V (EF009555) | - | kA |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V (EF009556) | - | kA |
