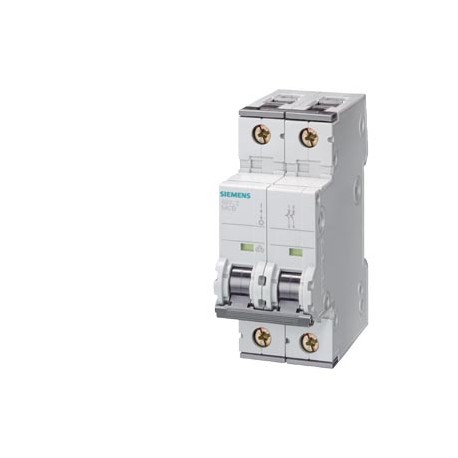

5SY7505-7 SIEMENS Miniature circuit breaker 230 V 15kA, 1+N-pole, C, 0.5 A, D 70M
5SY7505-7
75057
SIEMENS
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Industrial circuit breakers from 6 kA
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Siemens 5SY7505-7 miniature circuit breaker delivers reliable electrical protection for sensitive single-phase and neutral circuit configurations. These devices automatically trip upon detecting excessive current, preventing damage to downstream machinery and wiring.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- product designation: Miniature circuit breaker
- General technical data number of poles: 2
- design of pole: 1P+N
- tripping characteristic class: C
- mechanical service life (switching cycles) / typical: 10 000
- overvoltage category: III
- degree of pollution: 3
- Voltage type of voltage / of the operating voltage: AC
- ● with single-phase operation / at AC / rated value: 250 V
- ● at AC / rated value: 230 V
- value range / of the supply voltage frequency: 50/60 Hz
- operating voltage / at DC / rated value / maximum: 72 V
- Protection class protection class IP: IP20, with connected conductors
- ● at DC / according to IEC 60947-2 / rated value: 15 kA
- ● according to EN 60898 / rated value: 15 kA
- ● according to IEC 60947-2 / rated value: 50 kA
More info
▲Technical data
Additional data
| Product | |||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 5SY7505-7 | ||||||||||||||||||||||||||||||||||||
| Product Description | Miniature circuit breaker 230 V 15kA, 1+N-pole, C, 0.5 A, D=70M | ||||||||||||||||||||||||||||||||||||
| Product family | Basic Devices | ||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 12B / 1AC | ||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
| Metal Factor | L-O----- | ||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 95 Day/Days | ||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,323 Kg | ||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 40,00 x 92,00 x 84,00 | ||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||
| EAN | 4001869191676 | ||||||||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||||||||
| Commodity Code | 85362010 | ||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | ||||||||||||||||||||||||||||||||||||
| Product Group | 5525 | ||||||||||||||||||||||||||||||||||||
| Group Code | P310 | ||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | ||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2006 | ||||||||||||||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | ||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000042 - Miniature circuit breaker (MCB)
| Value | Unit | |
|---|---|---|
| Rated impulse withstand voltage Uimp (EF011980) | - | kV |
| Rated insulation voltage Ui (EF001366) | - | V |
| Release characteristic (EF000889) | C | |
| Number of poles (total) (EF008618) | 2 | |
| Number of protected poles (EF005548) | 1P+N | |
| Rated current (EF000227) | 0.5 | A |
| Rated voltage (EF000228) | 230 | V |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V (EF009556) | 15.0 | kA |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V (EF009555) | 15.0 | kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V (EF009557) | 50.0 | kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V (EF009558) | 50.0 | kA |
| Voltage type (EF000187) | AC/DC | |
| Frequency (EF000416) | ['50.0', '50.0'] | Hz |
| Current limiting class (EF002568) | 3 | |
| Suitable for flush-mounted installation (EF006573) | false | |
| Concurrently switching N-neutral (EF005997) | true | |
| Over voltage category (EF002569) | 3 | |
| Pollution degree (EF002570) | 3 | |
| Additional equipment possible (EF008148) | true | |
| Width in number of modular spacings (EF002950) | 2 | |
| Built-in depth (EF000218) | 70.0 | mm |
| Degree of protection (IP) (EF005474) | IP20 | |
| Ambient temperature during operating (EF007515) | ['-25', '55'] | °C |
| Connectable conductor cross section multi-wired (EF007343) | ['0.75', '35.0'] | mm² |
| Connectable conductor cross section solid-core (EF007337) | ['0.75', '35.0'] | mm² |
