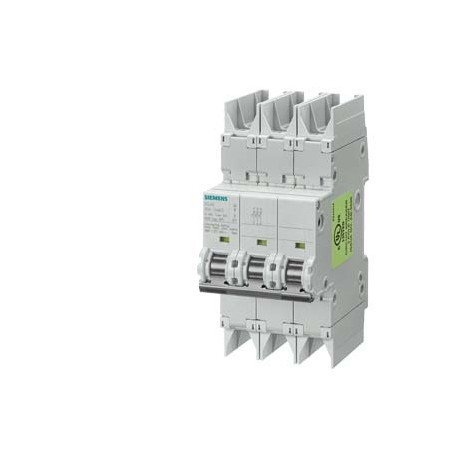

SIEMENS 5SY4335-7 5SY4335-7 SIEMENS Miniature circuit breaker 400 V 10kA, 3-pole, C, 35 A, D 70 mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

5SY4335-7 SIEMENS Miniature circuit breaker 400 V 10kA, 3-pole, C, 35 A, D 70 mm

5SY4335-7

43357

SIEMENS

1 Pcs.

Miniature circuit breaker 400 V 10kA, 3-pole, C, 35 A, D=70 mm INTERR. PROTEC. SELECT. 400V 10KA, 3POLOS, 35A, P=70MM. Cancelations and returns limited. Consult conditions.

Automation > Miniature circuit breaker (MCB)
Industrial circuit breakers from 6 kA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

ETIM: EC000042 - Miniature circuit breaker (MCB)

Value Unit
Rated insulation voltage Ui (EF001366) -V
Rated impulse withstand voltage Uimp (EF011980) -kV
Release characteristic (EF000889) C
Number of poles (total) (EF008618) 3
Number of protected poles (EF005548) 3P
Rated current (EF000227) 35A
Rated voltage (EF000228) 400V
Rated short-circuit breaking capacity Icn EN 60898 at 230 V (EF009556) 10.0kA
Rated short-circuit breaking capacity Icn EN 60898 at 400 V (EF009555) 10.0kA
Voltage type (EF000187) AC/DC
Frequency (EF000416) ['50.0', '50.0']Hz
Current limiting class (EF002568) 3
Suitable for flush-mounted installation (EF006573) false
Concurrently switching N-neutral (EF005997) false
Over voltage category (EF002569) 3
Pollution degree (EF002570) 3
Additional equipment possible (EF008148) true
Width in number of modular spacings (EF002950) 3
Built-in depth (EF000218) 70.0mm
Degree of protection (IP) (EF005474) IP20
Ambient temperature during operating (EF007515) ['-25', '55']°C
Connectable conductor cross section multi-wired (EF007343) ['0.75', '35.0']mm²
Connectable conductor cross section solid-core (EF007337) ['0.75', '35.0']mm²
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V (EF009557) -kA
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V (EF009558) -kA


Miniature circuit breaker 400 V 10kA, 3-pole, C, 35 A, D=70 mm
Model
product brand nameSENTRON
Product designationMiniature circuit breaker
General technical data
number of poles3
Number of poles / Note3P
Tripping characteristic classC
circuit-breaker / Design5SY4
Mechanical service life (switching cycles) / typical10 000
overvoltage categoryIII
Degree of pollution3
Voltage
Insulation voltage
● with single-phase operation / at AC / rated value440 V
● with multi-phase operation / at AC / rated value440 V
Supply voltage
type of voltageAC
Operating current / at AC / rated value35 A
Supply voltage
● at AC / rated value400 V
Operating voltage
● at DC / rated value / maximum72 V
Supply voltage frequency
● rated value50/60 Hz
Protection class
Protection class IPIP20, with connected conductors
Switching capacity
Switching capacity current
● at DC / acc. to IEC 60947-2 / rated value15 kA
● acc. to EN 60898 / rated value10 kA
● acc. to IEC 60947-2 / rated value15 kA
Energy limiting class3
Dissipation
Power loss [W] / for rated value of the current / at AC / in hot operating state / per pole2.6 W
Current
Tripping residual / rated value / derated current / at 40 Cel33.32 A
Suitability for operationMechanical engineering / industry
Product details
Product function / neutral conductor switchingNo
Product feature / Touch protectionYes
Product component
● combined terminal topYes
● combined terminal bottomYes
● Product feature / Properties for main switches in accordance with EN 60204-1Yes
● product feature / halogen-freeYes
● Product feature / sealableYes
● product feature / silicon-freeYes
Product extension / can be installed / supplementary devicesYes
Short circuit
Breaking capacity short-circuit current (Icn)
● at AC / acc. to UL 1077 and CSA C22.2 No.2355 kA
Connections
connectable conductor cross-section / solid
● minimum0.75 mm²
● maximum35 mm²
Connectable conductor cross-section / stranded
● minimum0.75 mm²
● maximum35 mm²
connectable conductor cross-section / finely stranded / with core end processing
● minimum0.75 mm²
● maximum25 mm²
AWG number / as coded connectable conductor cross section
● minimum18
● maximum4
Tightening torque [lbf·in] / with screw-type terminals
● minimum22 lbf·in
● maximum31 lbf·in
Tightening torque / with screw-type terminals
● minimum2.5 N·m
● maximum3.5 N·m
Position / of power supply cordAny
Mechanical Design
Height90 mm
Width54 mm
Depth76 mm
installation depth70 mm
number of width units3
Mounting typeQuick assembly system
mounting positionany
net weight452 g
Environmental conditions
influence of the surrounding temperaturemax. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C
Ambient temperature
● minimum-40 °C
● maximum70 °C
Ambient temperature / during storage
● minimum-40 °C
● maximum75 °C
Number of test cycles / for environmental testing / acc. to IEC 60068-2-306
Certificates
● reference code / acc. to DIN EN 61346-2F
● Reference code / acc. to DIN EN 81346-2F
General Product Approval

CCC

UR

VDE

CB-Testreport

RCM

Miscellaneous

Test CertificatesShipping ApprovalRailway

Miscellaneous

Special Test Certificate

ABS (American Bureau of Shipping)

BV / Bureau Veritas

LR (Lloyds Register)

Confirmation

Railway

Vibration and Shock

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications


Product
Article Number (Market Facing Number)5SY4335-7
Product DescriptionMiniature circuit breaker 400 V 10kA, 3-pole, C, 35 A, D=70 mm
Product familyBasic Devices
Product Lifecycle (PLM)PM300:Active Product
Price data
Price Group11B
Surcharge for Raw MaterialsNone
Metal FactorL-O-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works30 Day/Days
Net Weight (kg)0,470 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension93,00 x 216,00 x 82,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869309866
UPC754554889412
Commodity Code85362010
LKZ_FDB/ CatalogIDLV10.1
Product Group5505
Group CodeP310
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2006
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
