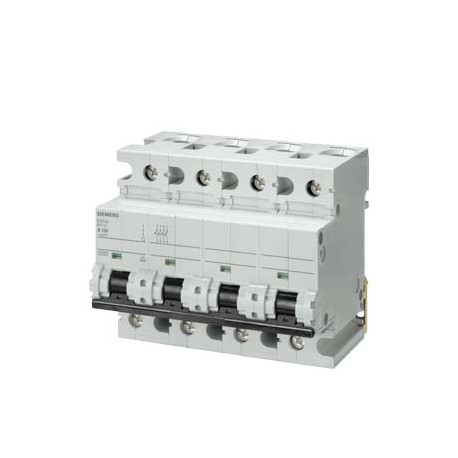

5SP4480-8 SIEMENS Miniature circuit breaker 400 V 10kA, 4-pole, D, 80 A, D 70 mm
5SP4480-8
44808
SIEMENS
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Industrial circuit breakers from 6 kA
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Heavy electrical loads are effectively managed and protected by the Siemens 5SP4480-8 miniature circuit breaker, which interrupts excessive currents to prevent system failures. This four-pole protective device is widely utilized in industrial power distribution panels.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- product designation: Miniature circuit breaker
- design of the product: 5SP Miniature circuit breakers
- General technical data number of poles: 4
- tripping characteristic class: D
- mechanical service life (switching cycles) / typical: 10 000
- overvoltage category: 3
- degree of pollution: 3
- Voltage type of voltage / of the operating voltage: AC
- ● at AC / rated value: 440 V
- ● with multi-phase operation / at AC / rated value: 440 V
- Supply voltage supply voltage / at AC / rated value: 400 V
- Protection class protection class IP: IP20 with connected conductors, IP40 in the area of the handle with distribution cover
- ● according to EN 60898 / rated value: 10 kA
- ● at 30 °C / rated value: 80 A
- ● at 40 °C / rated value: 76 A
- ● at 45 °C / rated value: 73.6 A
More info
▲Technical data
Additional data
| Product | |||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 5SP4480-8 | ||||||||||||||||||||||||||||||||||||
| Product Description | Miniature circuit breaker 400 V 10kA, 4-pole, D, 80 A, D=70 mm | ||||||||||||||||||||||||||||||||||||
| Product family | Basic Devices | ||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 12C / 1AA | ||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
| Metal Factor | L-O----- | ||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 30 Day/Days | ||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 1,026 Kg | ||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 92,00 x 112,00 x 82,00 | ||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||
| EAN | 4001869195681 | ||||||||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||||||||
| Commodity Code | 85362090 | ||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | ||||||||||||||||||||||||||||||||||||
| Product Group | 5517 | ||||||||||||||||||||||||||||||||||||
| Group Code | P310 | ||||||||||||||||||||||||||||||||||||
| Country of origin | Turkey | ||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2006 | ||||||||||||||||||||||||||||||||||||
| Product class | B: return restricted, please contact your Siemens partner/contact | ||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000042 - Miniature circuit breaker (MCB)
| Value | Unit | |
|---|---|---|
| Rated impulse withstand voltage Uimp (EF011980) | - | kV |
| Release characteristic (EF000889) | D | |
| Number of poles (total) (EF008618) | 4 | |
| Number of protected poles (EF005548) | 4P | |
| Rated current (EF000227) | 80 | A |
| Rated voltage (EF000228) | 400 | V |
| Rated insulation voltage Ui (EF001366) | 440 | V |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V (EF009556) | 10.0 | kA |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V (EF009555) | 10.0 | kA |
| Voltage type (EF000187) | AC | |
| Frequency (EF000416) | ['50.0', '50.0'] | Hz |
| Current limiting class (EF002568) | - | |
| Suitable for flush-mounted installation (EF006573) | false | |
| Concurrently switching N-neutral (EF005997) | false | |
| Over voltage category (EF002569) | 3 | |
| Pollution degree (EF002570) | 3 | |
| Additional equipment possible (EF008148) | true | |
| Width in number of modular spacings (EF002950) | 6 | |
| Built-in depth (EF000218) | 70.0 | mm |
| Degree of protection (IP) (EF005474) | IP20 | |
| Ambient temperature during operating (EF007515) | ['-25', '55'] | °C |
| Connectable conductor cross section multi-wired (EF007343) | ['25.0', '50.0'] | mm² |
| Connectable conductor cross section solid-core (EF007337) | ['25.0', '50.0'] | mm² |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V (EF009557) | - | kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V (EF009558) | - | kA |
