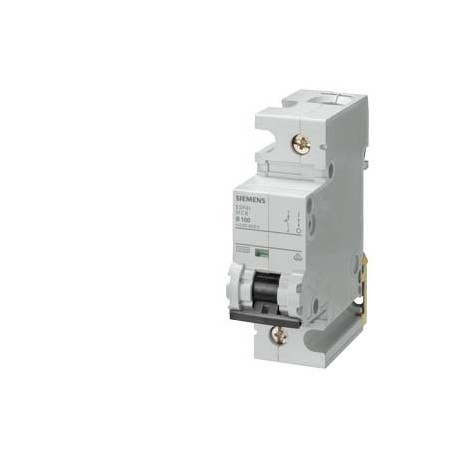

5SP4191-7 SIEMENS Miniature circuit breaker 230/400 V 10kA, 1-pole, C, 100 A, D 70 mm
5SP4191-7
41917
SIEMENS
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Industrial circuit breakers from 6 kA
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Siemens 5SP4191-7 miniature circuit breaker provides robust current-limiting protection for high-capacity industrial electrical networks and distribution boards. Power systems rely on single-pole breakers of this caliber to safely disconnect circuits during overload and short-circuit conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- product designation: Miniature circuit breaker
- design of the product: 5SP Miniature circuit breakers
- General technical data number of poles: 1
- tripping characteristic class: C
- mechanical service life (switching cycles) / typical: 10 000
- overvoltage category: 3
- degree of pollution: 3
- Voltage type of voltage / of the operating voltage: AC
- ● at AC / rated value: 440 V
- ● with single-phase operation / at AC / rated value: 250 V
- ● with multi-phase operation / at AC / rated value: 440 V
- Supply voltage supply voltage / at AC / rated value: 400 V
- Protection class protection class IP: IP20 with connected conductors, IP40 in the area of the handle with distribution cover
- ● according to EN 60898 / rated value: 10 kA
- ● at 30 °C / rated value: 100 A
- ● at 40 °C / rated value: 92.5 A
More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 5SP4191-7 | |||||||||||||||||||||||||||||||||||||||
| Product Description | Miniature circuit breaker 230/400 V 10kA, 1-pole, C, 100 A, D=70 mm | |||||||||||||||||||||||||||||||||||||||
| Product family | Basic Devices | |||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 11B / 1AC | |||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
| Metal Factor | L-O----- | |||||||||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 30 Day/Days | |||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,259 Kg | |||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 74,00 x 169,00 x 101,00 | |||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4001869195094 | |||||||||||||||||||||||||||||||||||||||
| UPC | Not available | |||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85362090 | |||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | |||||||||||||||||||||||||||||||||||||||
| Product Group | 5505 | |||||||||||||||||||||||||||||||||||||||
| Group Code | P310 | |||||||||||||||||||||||||||||||||||||||
| Country of origin | Turkey | |||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 | |||||||||||||||||||||||||||||||||||||||
| Product class | B: return restricted, please contact your Siemens partner/contact | |||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000042 - Miniature circuit breaker (MCB)
| Value | Unit | |
|---|---|---|
| Rated impulse withstand voltage Uimp (EF011980) | - | kV |
| Release characteristic (EF000889) | C | |
| Number of poles (total) (EF008618) | 1 | |
| Number of protected poles (EF005548) | 1P | |
| Rated current (EF000227) | 100 | A |
| Rated voltage (EF000228) | 400 | V |
| Rated insulation voltage Ui (EF001366) | 440 | V |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V (EF009556) | 10.0 | kA |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V (EF009555) | 10.0 | kA |
| Voltage type (EF000187) | AC | |
| Frequency (EF000416) | ['50.0', '50.0'] | Hz |
| Current limiting class (EF002568) | - | |
| Suitable for flush-mounted installation (EF006573) | false | |
| Concurrently switching N-neutral (EF005997) | false | |
| Over voltage category (EF002569) | 3 | |
| Pollution degree (EF002570) | 3 | |
| Additional equipment possible (EF008148) | true | |
| Width in number of modular spacings (EF002950) | 1.5 | |
| Built-in depth (EF000218) | 70.0 | mm |
| Degree of protection (IP) (EF005474) | IP20 | |
| Ambient temperature during operating (EF007515) | ['-25', '55'] | °C |
| Connectable conductor cross section multi-wired (EF007343) | ['25.0', '50.0'] | mm² |
| Connectable conductor cross section solid-core (EF007337) | ['25.0', '50.0'] | mm² |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V (EF009557) | - | kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V (EF009558) | - | kA |
