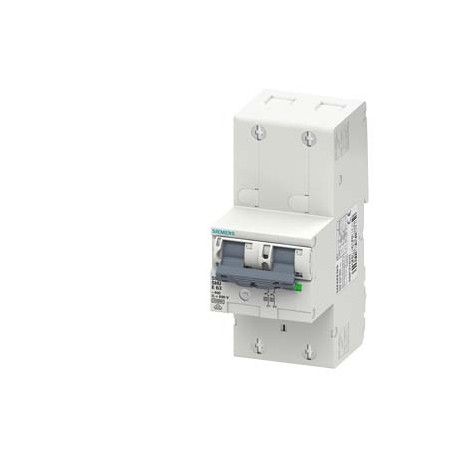

5SP3235-3 SIEMENS Main miniature circuit breaker (SHU), 2-pole, E 35, 400V

5SP3235-3

32353

SIEMENS

1 Pcs.

Main miniature circuit breaker (SHU), 2-pole, E 35, 400V INT. AUT. MAGNETERMICO PPAL. (SHU), 2 POLES, E 35, 400V. Cancelations and returns limited. Consult conditions.

Automation > Selective main line circuit breaker
Industrial circuit breakers from 6 kA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Siemens 5SP3235-3 is a 2-pole main miniature circuit breaker (SHU) engineered to protect critical electrical distribution architectures. These devices prevent potential damage by interrupting fault currents promptly and maintaining system selectivity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • product designation: Miniature circuit breaker
  • design of the product: Main miniature circuit breaker
  • design of the locking device: Integrated locking slide, lockable by means of a lock, wire seal and cable ties
  • General technical data number of poles: 2
  • tripping characteristic class: E
  • mechanical service life (switching cycles) / typical: 20 000
  • overvoltage category: IV
  • degree of pollution: 3
  • Voltage insulation voltage (Ui) / rated value: 690 V
  • surge voltage resistance / rated value: 6 kV
  • Supply voltage supply voltage / at AC / rated value: 400 V
  • ● minimum: 110 V
  • ● maximum: 440 V
  • supply voltage frequency / rated value: 50 Hz
  • Protection class protection class IP: IP40, with connected conductors
  • ● rated value: 25 kA

More info

▲

Technical data

Main miniature circuit breaker (SHU), 2-pole, E 35, 400V
Model
product brand nameSENTRON
product designationMiniature circuit breaker
design of the productMain miniature circuit breaker
design of the locking deviceIntegrated locking slide, lockable by means of a lock, wire seal and cable ties
General technical data
number of poles2
tripping characteristic classE
mechanical service life (switching cycles) / typical20 000
overvoltage categoryIV
degree of pollution3
Voltage
insulation voltage (Ui) / rated value690 V
surge voltage resistance / rated value6 kV
Supply voltage
supply voltage / at AC / rated value400 V
operating voltage / rated value
● minimum110 V
● maximum440 V
supply voltage frequency / rated value50 Hz
Protection class
protection class IPIP40, with connected conductors
Switching capacity
switching capacity current
● rated value25 kA
● according to EN 60898 / rated value25 kA
Dissipation
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole6.9 W
Current
operational current
● at 30 °C / rated value35 A
● at 40 °C / rated value33.25 A
● at 45 °C / rated value32.375 A
● at 50 °C / rated value31.5 A
● at 55 °C / rated value30.625 A
● at AC / rated value35 A
suitability for operationResidential buildings/infrastructure
Product details
product component
● infeed at box terminalYes
● saddle terminalsYes
product feature
● properties for main switches in accordance with EN 60204-1Yes
● sealableYes
Display and operation
display version / for switch position indicatorOFF = green, ON = red
Connections
connectable conductor cross-section / of the box terminal
● solid / minimum2.5 mm²
● solid / maximum50 mm²
● stranded / minimum2.5 mm²
● stranded / maximum50 mm²
connectable conductor cross-section / solid
● minimum2.5 mm²
● maximum50 mm²
connectable conductor cross-section / stranded
● minimum2.5 mm²
● maximum50 mm²
connectable conductor cross-section / finely stranded / with core end processing
● minimum2.5 mm²
● maximum50 mm²
position / of power supply cordAny
Mechanical Design
height128 mm
depth76.3 mm
depth / of the enclosure76.3 mm
number of modular width units3
fastening methodstandard rail
net weight700 g
Environmental conditions
shock resistance30 g, at least 3 impacts, impact duration 11 ms
vibration resistance / according to IEC 60068-2-62 g, 20 frequency cycles 5 to 150 to 15 Hz
ambient temperature / during operation
● minimum-25 °C
● maximum55 °C
ambient temperature / during storage
● minimum-40 °C
● maximum70 °C
Certificates
reference code
● according to EN 61346-2F
● according to IEC 81346-2F

Downloads and manuals

General Product ApprovalDeclaration of Conformityother

Confirmation

VDE

EAC

EC/EU-Declaration of Conformity

UK Declaration of Conformity

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications
Date
5/2/2022


Additional data

Product
Article Number (Market Facing Number)5SP3235-3
Product DescriptionMain miniature circuit breaker (SHU), 2-pole, E 35, 400V
Product familyBasic Devices
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group12D / 1AE
Surcharge for Raw MaterialsNone
Metal FactorL-A-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works5 Day/Days
Net Weight (kg)0,753 Kg
Packaging Dimension130,00 x 145,00 x 157,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869496825
UPCNot available
Commodity Code85362010
LKZ_FDB/ CatalogIDLV10.1
Product Group5508
Group CodeP310
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.01.2014
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-14-19-03
eClass7.127-14-19-03
eClass827-14-19-03
eClass927-14-19-03
eClass9.127-14-19-03
ETIM5EC001047
ETIM6EC001047
ETIM7EC001047
ETIM8EC001047

ETIM data

ETIM: EC001047 - Selective main line circuit breaker

Value Unit
Release characteristic (EF000889) E
Number of poles (EF001391) 2
Rated current (EF000227) 35A
Rated voltage (EF000228) 400V
Rated insulation voltage Ui (EF001366) 690V
Rated switching capacity (EF002563) 25.0kA
Concurrently switching N-neutral (EF005997) false
Frequency (EF000034) 50Hz
Over voltage category (EF002569) 4
Pollution degree (EF002570) 3
Rated surge voltage invariability (EF002578) 6.0kV
Construction size (according to DIN 43880) (EF002565) -
Mounting method (EF000003) DIN rail
Degree of protection (IP) (EF005474) IP40



Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
