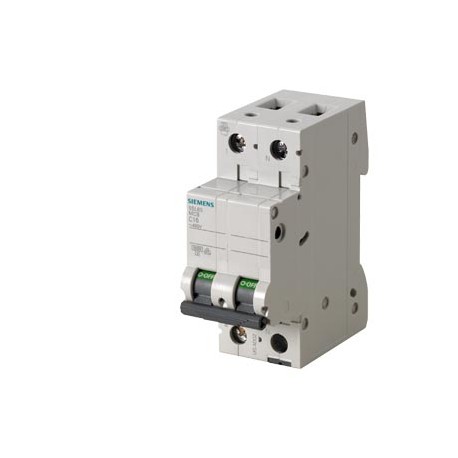

SIEMENS 5SL6502-7 5SL6502-7 SIEMENS Miniature circuit breaker 230 V 6kA, 1+N-pole, C, 2A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

5SL6502-7 SIEMENS Miniature circuit breaker 230 V 6kA, 1+N-pole, C, 2A

5SL6502-7

65027

SIEMENS

1 Pcs.

Miniature circuit breaker 230 V 6kA, 1+N-pole, C, 2A Circuit Breaker 70mm, 6kA, curve C, 1 pole+N, 2A. Cancelations and returns limited. Consult conditions.

Automation > Miniature circuit breaker (MCB)
Tertiary circuit breakers up to 6 Ka

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Additional data

Product
Article Number (Market Facing Number)5SL6502-7
Product DescriptionMiniature circuit breaker 230 V 6kA, 1+N-pole, C, 2A
Product familyBasic Devices
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group12B / 1AC
Surcharge for Raw MaterialsNone
Metal FactorL-O-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works30 Day/Days
Net Weight (kg)0,255 Kg
Packaging Dimension40,00 x 92,00 x 84,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869389257
UPCNot available
Commodity Code85362010
LKZ_FDB/ CatalogIDLV10.1
Product Group3803
Group CodeP310
Country of originRomania
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2006
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-14-19-01
eClass7.127-14-19-01
eClass827-14-19-01
eClass927-14-19-01
eClass9.127-14-19-01
ETIM5EC000042
ETIM6EC000042
ETIM7EC000042
ETIM8EC000042
UNSPSC1439-12-16-01
UNSPSC1539-12-16-03

ETIM data

ETIM: EC000042 - Miniature circuit breaker (MCB)

Value Unit
Rated insulation voltage Ui (EF001366) -V
Rated impulse withstand voltage Uimp (EF011980) -kV
Release characteristic (EF000889) C
Number of poles (total) (EF008618) 2
Number of protected poles (EF005548) 1P+N
Rated current (EF000227) 2A
Rated voltage (EF000228) 230V
Rated short-circuit breaking capacity Icn EN 60898 at 230 V (EF009556) 6.0kA
Rated short-circuit breaking capacity Icn EN 60898 at 400 V (EF009555) 6.0kA
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V (EF009557) 6.0kA
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V (EF009558) 6.0kA
Voltage type (EF000187) AC
Frequency (EF000416) ['50.0', '50.0']Hz
Current limiting class (EF002568) 3
Suitable for flush-mounted installation (EF006573) false
Concurrently switching N-neutral (EF005997) true
Over voltage category (EF002569) 3
Pollution degree (EF002570) 2
Additional equipment possible (EF008148) true
Width in number of modular spacings (EF002950) 2
Built-in depth (EF000218) 70.0mm
Degree of protection (IP) (EF005474) IP20
Ambient temperature during operating (EF007515) ['-25', '45']°C
Connectable conductor cross section multi-wired (EF007343) ['0.75', '25.0']mm²
Connectable conductor cross section solid-core (EF007337) ['0.75', '25.0']mm²
