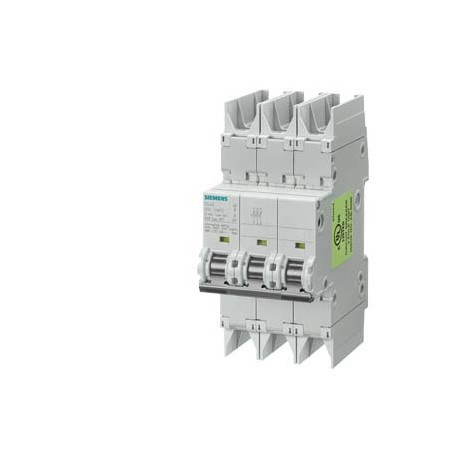

5SL4305-8 SIEMENS Miniature circuit breaker 400 V 10kA, 3-pole, D, 0.5A
5SL4305-8
43058
SIEMENS
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Tertiary circuit breakers from 6 kA
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Siemens miniature circuit breaker delivers automatic fault protection by disconnecting electrical circuits when excessive current or short circuits occur. These protective switching devices are commonly integrated into distribution boards to prevent equipment damage and electrical hazards.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Product Article Number (Market Facing Number): 5SL4305-8
- Product Description: Miniature circuit breaker 400 V 10kA, 3-pole, D, 0.5A
- Product family: Basic Devices
- Product Lifecycle (PLM): PM300:Active Product
- Metal Factor: L-A-----
- Delivery information Export Control Regulations: AL : N / ECCN : N
- Standard lead time ex-works: 30 Day/Days
- Net Weight (kg): 0,465 Kg
- Packaging Dimension: 58,00 x 93,00 x 84,00
- Package size unit of measure: MM
- Quantity Unit: 1 Piece
- Packaging Quantity: 1
- Additional Product Information EAN: 4001869441511
- UPC: Not available
- Commodity Code: 85362010
- LKZ_FDB/ CatalogID: LV10.1
More info
▲Additional data
| Product | |||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 5SL4305-8 | ||||||||||||||||||||||||||||||||||||
| Product Description | Miniature circuit breaker 400 V 10kA, 3-pole, D, 0.5A | ||||||||||||||||||||||||||||||||||||
| Product family | Basic Devices | ||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 12C / 1AA | ||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
| Metal Factor | L-A----- | ||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 30 Day/Days | ||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,465 Kg | ||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 58,00 x 93,00 x 84,00 | ||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||
| EAN | 4001869441511 | ||||||||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||||||||
| Commodity Code | 85362010 | ||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | ||||||||||||||||||||||||||||||||||||
| Product Group | 3806 | ||||||||||||||||||||||||||||||||||||
| Group Code | P310 | ||||||||||||||||||||||||||||||||||||
| Country of origin | Romania | ||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2013 | ||||||||||||||||||||||||||||||||||||
| Product class | B: return restricted, please contact your Siemens partner/contact | ||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000042 - Miniature circuit breaker (MCB)
| Value | Unit | |
|---|---|---|
| Rated impulse withstand voltage Uimp (EF011980) | - | kV |
| Rated insulation voltage Ui (EF001366) | - | V |
| Release characteristic (EF000889) | D | |
| Number of poles (total) (EF008618) | 3 | |
| Number of protected poles (EF005548) | 3P | |
| Rated current (EF000227) | 0.5 | A |
| Rated voltage (EF000228) | 400 | V |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V (EF009556) | 10.0 | kA |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V (EF009555) | 10.0 | kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V (EF009557) | 10.0 | kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V (EF009558) | 10.0 | kA |
| Voltage type (EF000187) | AC | |
| Frequency (EF000416) | ['50.0', '50.0'] | Hz |
| Current limiting class (EF002568) | 3 | |
| Suitable for flush-mounted installation (EF006573) | false | |
| Concurrently switching N-neutral (EF005997) | false | |
| Over voltage category (EF002569) | 3 | |
| Pollution degree (EF002570) | 2 | |
| Additional equipment possible (EF008148) | true | |
| Width in number of modular spacings (EF002950) | 3 | |
| Built-in depth (EF000218) | 70.0 | mm |
| Degree of protection (IP) (EF005474) | IP20 | |
| Ambient temperature during operating (EF007515) | ['-25', '55'] | °C |
| Connectable conductor cross section multi-wired (EF007343) | ['0.75', '25.0'] | mm² |
| Connectable conductor cross section solid-core (EF007337) | ['0.75', '25.0'] | mm² |
