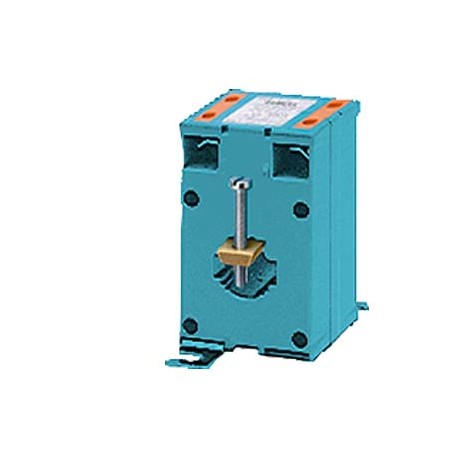

4NC5112-2BC20 SIEMENS Window-type current transformer, Class 3 50 A/5 A, 2.5 VA
4NC5112-2BC20
51122
SIEMENS
1 Pcs.
Window-type current transformer, Class 3 50 A/5 A, 2.5 VA
Automation > Current transformer
SITOR Extra-fast Fuses
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Siemens 4NC5112-2BC20 window-type current transformer steps down primary electrical currents to standardized secondary values for safe integration with industrial switchboard meters.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Primary rated current (EF007405): 50
- Secondary rated current (EF007471): 5
- Secondary rated apparent power (EF007470): 2.5
- Accuracy class (EF001532): class 3
- Over current limiting factor (EF007511): FS 10
- With shock protection (EF008186): true
- Opening diameter (EF005153): 17.5
- Secondary connection (EF007469): Screw connection
- Number of primary inputs (EF006947): 1
- Product designation: Window-type current transformers
- Operating apparent output / rated value: 2.5 V·A
- Protection class Protection class IP: IP20
- ● Ratio of input current/output current: 50/5 A
- ● Current / at output / rated value: 5 A
- ● Current / at input / rated value: 50 A
- Accuracy class / of the current transformer: class 3
More info
▲ETIM: EC002048 - Current transformer
| Value | Unit | |
|---|---|---|
| Model (EF000010) | Other | |
| Primary rated current (EF007405) | 50 | A |
| Secondary rated current (EF007471) | 5 | A |
| Secondary rated apparent power (EF007470) | 2.5 | VA |
| Accuracy class (EF001532) | class 3 | |
| Over current limiting factor (EF007511) | FS 10 | |
| Calibrated (EF003706) | - | |
| With shock protection (EF008186) | true | |
| Opening diameter (EF005153) | 17.5 | mm |
| Snap mounting (EF007462) | - | |
| With copper rail (EF007380) | - | |
| Secondary connection (EF007469) | Screw connection | |
| Number of primary inputs (EF006947) | 1 | |
| Height opening (EF004778) | - | mm |
| Width opening (EF004565) | - | mm |
| Product | ||
| Article Number (Market Facing Number) | 4NC5112-2BC20 | |
| Product Description | Window-type current transformer, Class 3 50 A/5 A, 2.5 VA | |
| Product family | Not available | |
| Product Lifecycle (PLM) | PM490:Start of final year of support | |
| PLM Effective Date | Product discontinued since: 01.10.2018 | |
| Notes | Product is no longer available Sucessor:4NC5112-2CB21. Please note: different dimensions, Cl. 1, 1.2 VA If you need assistance please contact our local Siemens office | |
| Price data | ||
| Price Group | 12R | |
| Surcharge for Raw Materials | None | |
| Metal Factor | L-P----- | |
| Delivery information | ||
| Export Control Regulations | ECCN : N / AL : N | |
| Standard lead time ex-works | 2 Day/Days | |
| Net Weight (kg) | 0,420 Kg | |
| Product Dimensions (W x L x H) | Not available | |
| Packaging Dimension | 65,00 x 90,00 x 59,00 | |
| Package size unit of measure | MM | |
| Quantity Unit | 1 Piece | |
| Packaging Quantity | 1 | |
| Additional Product Information | ||
| EAN | 4011209071506 | |
| UPC | 754554666587 | |
| Commodity Code | 85043129 | |
| LKZ_FDB/ CatalogID | LV10.1 | |
| Product Group | 5891 | |
| Group Code | P360 | |
| Country of origin | Brazil | |
| Compliance with the substance restrictions according to RoHS directive | Given | |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |
| Classifications | ||
| Not available | ||
