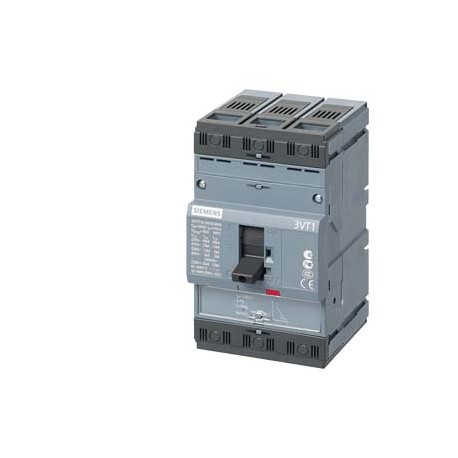

3VT1710-2DB36-0AA0 SIEMENS circuit breaker 3VT1 standard breaking capacity Icu 25kA, 415V AC 3-pole starter ..
3VT1710-2DB36-0AA0
17102
SIEMENS
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Serving as a Siemens standard breaking capacity circuit breaker, this unit provides reliable overload and short-circuit protection for motor starter applications and general power distribution. It is engineered to disconnect fault currents swiftly in industrial control panels.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 100.0
- Overload release current setting (EF002336): ['-', '-']
- Adjustment range undelayed short-circuit release (EF007131): ['500', '1000']
- Integrated earth fault protection (EF007296): false
- Type of electrical connection of main circuit (EF006819): Frame clamp
- Device construction (EF008240): Built-in device fixed built-in technique
- Suitable for DIN rail (top hat rail) mounting (EF007250): true
- DIN rail (top hat rail) mounting optional (EF008904): true
- With switched-off indicator (EF007006): false
- With under voltage release (EF007518): false
- Number of poles (EF001391): 3
- Position of connection for main current circuit (EF006671): Front side
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): true
- Motor drive integrated (EF006697): false
- Motor drive optional (EF007386): true
More info
▲ETIM: EC000228 - Power circuit-breaker for trafo/generator/installation protection
| Value | Unit | |
|---|---|---|
| Rated voltage (EF003977) | - | V |
| Rated permanent current Iu (EF001389) | 100.0 | A |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (EF007048) | 25.0 | kA |
| Overload release current setting (EF002336) | ['-', '-'] | A |
| Adjustment range short-term delayed short-circuit release (EF007129) | ['-', '-'] | A |
| Adjustment range undelayed short-circuit release (EF007131) | ['500', '1000'] | A |
| Integrated earth fault protection (EF007296) | false | |
| Type of electrical connection of main circuit (EF006819) | Frame clamp | |
| Device construction (EF008240) | Built-in device fixed built-in technique | |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | true | |
| DIN rail (top hat rail) mounting optional (EF008904) | true | |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 | |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 | |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 | |
| With switched-off indicator (EF007006) | false | |
| With under voltage release (EF007518) | false | |
| Number of poles (EF001391) | 3 | |
| Position of connection for main current circuit (EF006671) | Front side | |
| Type of control element (EF006976) | Rocker lever | |
| Complete device with protection unit (EF008906) | true | |
| Motor drive integrated (EF006697) | false | |
| Motor drive optional (EF007386) | true | |
| Degree of protection (IP) (EF005474) | IP40 |
| Product | ||
| Article Number (Market Facing Number) | 3VT1710-2DB36-0AA0 | |
| Product Description | circuit breaker 3VT1 standard breaking capacity Icu=25kA, 415V AC 3-pole; starter combination trip unit TM, LIN In=100A rated current II=500...1000A, short-circuit protection without auxiliary release without auxiliary/alarm switch | |
| Product family | Not available | |
| Product Lifecycle (PLM) | PM410:Product cancellation | |
| PLM Effective Date | Product is cancelled since: 01.10.2019 | |
| Notes | Sucessor:Successor portfolio 3VA; further information via www.siemens.com/3VA | |
| Price data | ||
| Price Group | 193 | |
| Surcharge for Raw Materials | None | |
| Metal Factor | LCP----- | |
| Delivery information | ||
| Export Control Regulations | ECCN : N / AL : N | |
| Standard lead time ex-works | 15 Day/Days | |
| Net Weight (kg) | 1,054 Kg | |
| Product Dimensions (W x L x H) | Not available | |
| Packaging Dimension | 102,00 x 135,00 x 84,00 | |
| Package size unit of measure | MM | |
| Quantity Unit | 1 Piece | |
| Packaging Quantity | 1 | |
| Additional Product Information | ||
| EAN | 4011209762275 | |
| UPC | Not available | |
| Commodity Code | 85362090 | |
| LKZ_FDB/ CatalogID | LV10.1 | |
| Product Group | 3749 | |
| Group Code | P360 | |
| Country of origin | Czech Republic | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.11.2007 | |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |
| Classifications | ||
