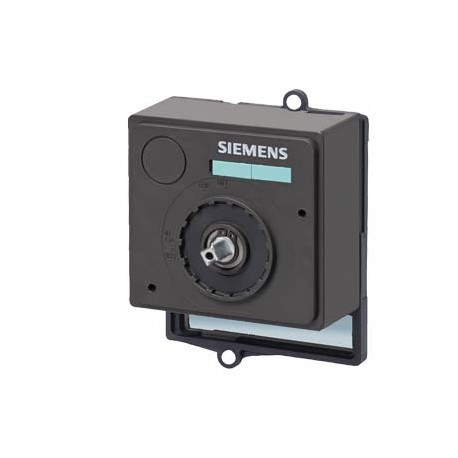

SIEMENS 3VL9600-3MS00 3VL9600-3MS00 SIEMENS accessory for VL630, VL800, mot. op. mech. w/ strd en. mech 60V AC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3VL9600-3MS00 SIEMENS accessory for VL630, VL800, mot. op. mech. w/ strd en. mech 60V AC/DC

3VL9600-3MS00

96003

SIEMENS

1 Pcs.

accessory for VL630, VL800, mot. op. mech. w/ strd en. mech 60V AC/DC

Automation > Accessories/spare parts for low-voltage switch technology
Moulded Case Circuit Breakers 3VL SENTRON

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

ETIM: EC002498 - Accessories/spare parts for low-voltage switch technology

Value Unit
Type of accessory/spare part (EF000215) Other


accessory for VL630, VL800, mot. op. mech. w/ strd en. mech 60V AC/DC
Model
product brand nameSENTRON
Product designationMotorized operating mechanism with stored energy mechanism
Design of the productAccessories for VL630; VL800
Type of the driving mechanismMotorized operating mechanism with spring energy store
General technical data
Break time / typical5 s
Pulse duration / minimum50 ms
Operating frequency / maximum60 1/h
Voltage
Fuse protection type / for external auxiliary power supply / requiredNEOZED fuse (gL/gG): 4 A / miniature circuit breaker, C char.: 4 A
operating range factor control supply voltage rated value
● at DC / initial value0.85
● at DC / full-scale value1.1
● at AC / at 50 Hz / initial value0.85
● at AC / at 50 Hz / full-scale value1.1
● at AC / at 60 Hz / initial value0.85
● at AC / at 60 Hz / full-scale value1.1
Protection class
Protection class IPIP30
Current
Make time / typical0.1 s
Control current
Operating apparent output250 V·A
Control supply voltage
● at DC / rated value / minimum60 V
● at DC / rated value / maximum60 V
● at AC / at 50 Hz / rated value / minimum60 V
● at AC / at 50 Hz / rated value / maximum60 V
● at AC / at 60 Hz / rated value / minimum60 V
● at AC / at 60 Hz / rated value / maximum60 V
Accessories
AccessoriesAccessories for VL630; VL800
Connections
Wire stripping length10 mm
connectable conductor cross-section / solid
● minimum0.75 mm²
● maximum1.5 mm²
Connectable conductor cross-section / stranded
● minimum0.75 mm²
● maximum1.5 mm²
connectable conductor cross-section / finely stranded / with core end processing
● minimum0.75 mm²
● maximum1.5 mm²
Tightening torque
● maximum1 N·m
Mechanical Design
Height190 mm
Width173 mm
Depth160 mm
net weight5 662 g
Environmental conditions
Ambient temperature / during operation
● minimum-25 °C
● maximum70 °C
Ambient temperature / during storage
● minimum-40 °C
● maximum80 °C
Certificates
● reference code / acc. to DIN EN 61346-2M
● Reference code / acc. to DIN EN 81346-2M
General Product ApprovalEMCDeclaration of ConformityTest CertificatesShipping Approval

Miscellaneous

C-TICK

EC/EU-Declaration of Conformity

Special Test Certificate

BV / Bureau Veritas

PRS / Polski Rejestr Statkow

Shipping Approvalother

RINA / Registro Italiano Navale

RMRS / Russian Maritime Register

Confirmation

Environmental Confirmations

Miscellaneous

Manufacturer Declaration

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications


Product
Article Number (Market Facing Number)3VL9600-3MS00
Product Descriptionaccessory for VL630, VL800, mot. op. mech. w/ strd en. mech 60V AC/DC
Product familyNot available
Product Lifecycle (PLM)PM410:Product cancellation
PLM Effective DateProduct is cancelled since: 01.10.2019
Notes
Sucessor:Further information about local contact: www.siemens.com/lowvoltage/contact
This product is a Spare Part, please visit the Spares & Service section for more information
If you need assistance please contact our local Siemens office
Price data
Price Group12N
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsECCN : EAR99 / AL : N
Standard lead time ex-works5 Day/Days
Net Weight (kg)5,662 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension255,00 x 310,00 x 225,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209476363
UPC887621172688
Commodity Code85389099
LKZ_FDB/ CatalogIDLV10.1
Product Group3740
Group CodeP360
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationNo
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
