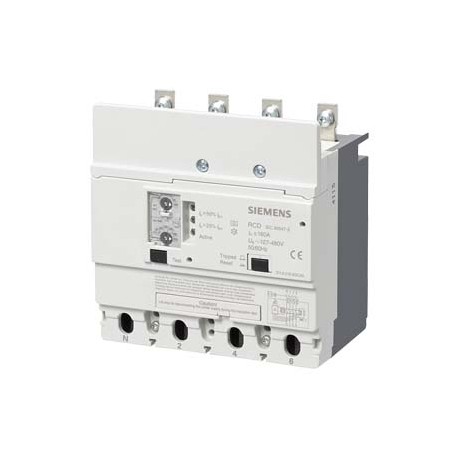

3VL9440-5GH40 SIEMENS accessory for VL400, RCD module (RCD) In 400A Ue 230...690V, 4-pole
3VL9440-5GH40
94405
SIEMENS
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Moulded Case Circuit Breakers 3VL SENTRON
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Siemens 3VL9440-5GH40 is an accessory for VL400, RCD module (RCD) In 400A Ue 230...690V, 4-pole designed to provide residual current earth-fault protection for compatible molded case circuit breakers. RCD add-on blocks monitor electrical leakage currents to safeguard personnel and equipment against insulation breakdown and ground faults.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Product designation: DI block (RCD)
- General technical data number of poles: 4
- circuit-breaker / Design: 3VL9
- Supply voltage Operating current / at AC / rated value: 400 A
- Supply voltage / at AC / rated value: 690 V
- Supply voltage frequency / rated value: 60 Hz
- Accessories Accessories: ACCESSORIES FOR VL400
- Certificates General Product Approval: EMC
- Product Article Number (Market Facing Number): 3VL9440-5GH40
- Product Description: accessory for VL400, RCD module (RCD) In=400A Ue=230...690V, 4-pole
- Product family: Not available
- Product Lifecycle (PLM): PM410:Product cancellation
- PLM Effective Date: Product is cancelled since: 01.10.2019
- Price data Price Group: 12N
- Metal Factor: L-P-----
- Delivery information Export Control Regulations: ECCN : EAR99 / AL : N
More info
▲ETIM: EC002498 - Accessories/spare parts for low-voltage switch technology
| Value | Unit | |
|---|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Product | ||
| Article Number (Market Facing Number) | 3VL9440-5GH40 | |
| Product Description | accessory for VL400, RCD module (RCD) In=400A Ue=230...690V, 4-pole | |
| Product family | Not available | |
| Product Lifecycle (PLM) | PM410:Product cancellation | |
| PLM Effective Date | Product is cancelled since: 01.10.2019 | |
| Notes | Sucessor:Further information about local contact: www.siemens.com/lowvoltage/contact This product is a Spare Part, please visit the Spares & Service section for more information If you need assistance please contact our local Siemens office | |
| Price data | ||
| Price Group | 12N | |
| Surcharge for Raw Materials | None | |
| Metal Factor | L-P----- | |
| Delivery information | ||
| Export Control Regulations | ECCN : EAR99 / AL : N | |
| Standard lead time ex-works | 2 Day/Days | |
| Net Weight (kg) | 3,325 Kg | |
| Product Dimensions (W x L x H) | Not available | |
| Packaging Dimension | 206,00 x 220,00 x 155,00 | |
| Package size unit of measure | MM | |
| Quantity Unit | 1 Piece | |
| Packaging Quantity | 1 | |
| Additional Product Information | ||
| EAN | 4011209472631 | |
| UPC | 887621172473 | |
| Commodity Code | 85363090 | |
| LKZ_FDB/ CatalogID | LV10.1 | |
| Product Group | 3740 | |
| Group Code | P360 | |
| Country of origin | Germany | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 | |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |
| Classifications | ||
| Not available | ||
