View larger
3VL9205-7DC30 SIEMENS ETU VL160 3-pole, line protection thermal-magnetic, LI IR 40...50A, overload protectio..
3VL9205-7DC30
92057
SIEMENS
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Moulded Case Circuit Breakers 3VL SENTRON
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

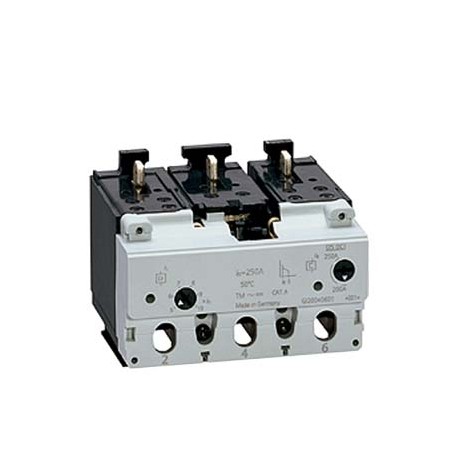

A Siemens ETU VL160 3-pole, line protection thermal-magnetic, LI IR 40...50A, overload protectio.. (3VL9205-7DC30) functions as an electronic trip unit module that provides precise overcurrent and short-circuit protection for industrial power distribution systems. Such interchangeable trip units monitor phase currents continuously to trip circuit breakers safely during fault conditions.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Accessories Accessories: Accessories for VL160
- Mechanical Design net weight: 0.68 kg
- Certificates General Product Approval: EMC
- Product Article Number (Market Facing Number): 3VL9205-7DC30
- Product family: Not available
- Product Lifecycle (PLM): PM410:Product cancellation
- PLM Effective Date: Product is cancelled since: 01.10.2019
- Price data Price Group: 12N
- Metal Factor: L-P-----
- Delivery information Export Control Regulations: ECCN : N / AL : N
- Standard lead time ex-works: 10 Day/Days
- Net Weight (kg): 0,682 Kg
- Product Dimensions (W x L x H): Not available
- Packaging Dimension: 105,00 x 125,00 x 87,00
- Package size unit of measure: MM
- Quantity Unit: 1 Piece
More info
▲ETIM: EC002498 - Accessories/spare parts for low-voltage switch technology
| Value | Unit | |
|---|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Product | ||
| Article Number (Market Facing Number) | 3VL9205-7DC30 | |
| Product Description | ETU VL160 3-pole, line protection thermal-magnetic, LI IR=40...50A, overload protection II=250...500A, short-circuit protection box terminal/screw terminal connection in scope of supply of sw. unit | |
| Product family | Not available | |
| Product Lifecycle (PLM) | PM410:Product cancellation | |
| PLM Effective Date | Product is cancelled since: 01.10.2019 | |
| Notes | Sucessor:Futher information about local contact: www.siemens.com/lowvoltage/contact This product is a Spare Part, please visit the Spares & Service section for more information If you need assistance please contact our local Siemens office | |
| Price data | ||
| Price Group | 12N | |
| Surcharge for Raw Materials | None | |
| Metal Factor | L-P----- | |
| Delivery information | ||
| Export Control Regulations | ECCN : N / AL : N | |
| Standard lead time ex-works | 10 Day/Days | |
| Net Weight (kg) | 0,682 Kg | |
| Product Dimensions (W x L x H) | Not available | |
| Packaging Dimension | 105,00 x 125,00 x 87,00 | |
| Package size unit of measure | MM | |
| Quantity Unit | 1 Piece | |
| Packaging Quantity | 1 | |
| Additional Product Information | ||
| EAN | 4011209686311 | |
| UPC | 040892190939 | |
| Commodity Code | 85363030 | |
| LKZ_FDB/ CatalogID | LV10.1 | |
| Product Group | 3740 | |
| Group Code | P360 | |
| Country of origin | Germany | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 | |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |
| Classifications | ||
| Not available | ||
