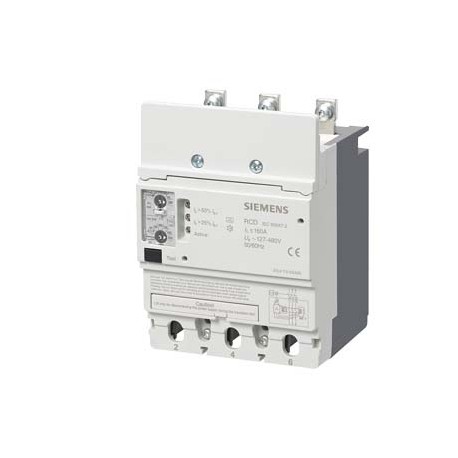

3VL9112-5GA30 SIEMENS accessory for VL160X, RCD module, mounting on bottom In 160A Ue 127...480V 3-pole
3VL9112-5GA30
91125
SIEMENS
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Moulded Case Circuit Breakers 3VL SENTRON
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Siemens 3VL9112-5GA30 residual current device module is designed to provide earth leakage protection in industrial power distribution networks. It mounts beneath compatible circuit breakers to detect residual currents and trip the system safely during insulation faults.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Product designation: DI block (RCD)
- Number of poles: 3
- Operating current / at AC / rated value: 160 A
- Supply voltage / at AC / rated value: 480 V
- Supply voltage frequency / rated value: 60 Hz
- Product Article Number (Market Facing Number): 3VL9112-5GA30
- Product Description: accessory for VL160X, RCD module, mounting on bottom In=160A Ue=127...480V 3-pole
- Product Lifecycle (PLM): PM410:Product cancellation
- PLM Effective Date: Product is cancelled since: 01.10.2019
- Price Group: 12N
- Export Control Regulations: ECCN : EAR99H / AL : N
- Standard lead time ex-works: 5 Day/Days
More info
▲ETIM: EC002498 - Accessories/spare parts for low-voltage switch technology
| Value | Unit | |
|---|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Product | ||
| Article Number (Market Facing Number) | 3VL9112-5GA30 | |
| Product Description | accessory for VL160X, RCD module, mounting on bottom In=160A Ue=127...480V 3-pole | |
| Product family | Not available | |
| Product Lifecycle (PLM) | PM410:Product cancellation | |
| PLM Effective Date | Product is cancelled since: 01.10.2019 | |
| Notes | Sucessor:Futher information about local contact: www.siemens.com/lowvoltage/contact This product is a Spare Part, please visit the Spares & Service section for more information If you need assistance please contact our local Siemens office | |
| Price data | ||
| Price Group | 12N | |
| Surcharge for Raw Materials | None | |
| Metal Factor | None | |
| Delivery information | ||
| Export Control Regulations | ECCN : EAR99H / AL : N | |
| Standard lead time ex-works | 5 Day/Days | |
| Net Weight (kg) | 1,500 Kg | |
| Product Dimensions (W x L x H) | Not available | |
| Packaging Dimension | 155,00 x 170,00 x 120,00 | |
| Package size unit of measure | MM | |
| Quantity Unit | 1 Piece | |
| Packaging Quantity | 1 | |
| Additional Product Information | ||
| EAN | 4011209472518 | |
| UPC | 887621171261 | |
| Commodity Code | 85363090 | |
| LKZ_FDB/ CatalogID | LV10.1 | |
| Product Group | 3740 | |
| Group Code | P360 | |
| Country of origin | Germany | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 | |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |
| Classifications | ||
| Not available | ||
