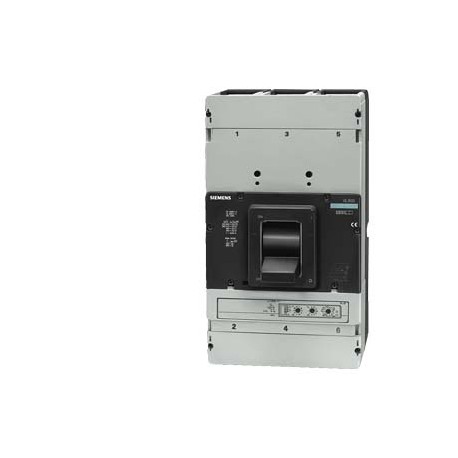

SIEMENS 3VL6780-2UH36-0AA0 3VL6780-2UH36-0AA0 SIEMENS circuit breaker VL800H high breaking capacity Icu 70kA, 415V AC 3-pole, line prot.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3VL6780-2UH36-0AA0 SIEMENS circuit breaker VL800H high breaking capacity Icu 70kA, 415V AC 3-pole, line prot..

3VL6780-2UH36-0AA0

67802

SIEMENS

1 Pcs.

circuit breaker VL800H high breaking capacity Icu=70kA, 415V AC 3-pole, line protection trip unit LCD ETU40, LI/LS/LSI In=800A, rated current IR=320...800A, overload protection, ISD=1.5 to 7 xIR, II=8 xIN short-circuit protection without auxiliary release without auxiliary/alarm switch

Automation > Power circuit-breaker for trafo/generator/installation protection
Moulded Case Circuit Breakers 3VL SENTRON

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

ETIM: EC000228 - Power circuit-breaker for trafo/generator/installation protection

Value Unit
Type of control element (EF006976) -
Rated voltage (EF003977) -V
Rated permanent current Iu (EF001389) 800.0A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (EF007048) 70.0kA
Overload release current setting (EF002336) ['320', '800']A
Adjustment range short-term delayed short-circuit release (EF007129) ['1200', '5600']A
Adjustment range undelayed short-circuit release (EF007131) ['1000', '6400']A
Integrated earth fault protection (EF007296) false
Type of electrical connection of main circuit (EF006819) Screw connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) true
DIN rail (top hat rail) mounting optional (EF008904) true
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
With switched-off indicator (EF007006) false
With under voltage release (EF007518) false
Number of poles (EF001391) 3
Position of connection for main current circuit (EF006671) Front side
Complete device with protection unit (EF008906) true
Motor drive integrated (EF006697) false
Motor drive optional (EF007386) true
Degree of protection (IP) (EF005474) IP20


Product
Article Number (Market Facing Number)3VL6780-2UH36-0AA0
Product Descriptioncircuit breaker VL800H high breaking capacity Icu=70kA, 415V AC 3-pole, line protection trip unit LCD ETU40, LI/LS/LSI In=800A, rated current IR=320...800A, overload protection, ISD=1.5 to 7 xIR, II=8 xIN short-circuit protection without auxiliary release without auxiliary/alarm switch
Product familyNot available
Product Lifecycle (PLM)PM400:Phase Out Started
PLM Effective DateProduct phase-out since: 01.10.2019
Notes
Sucessor:Further information about local contact: www.siemens.com/lowvoltage/contact
Price data
Price Group12N
Surcharge for Raw MaterialsNone
Metal FactorLAP-----
Delivery information
Export Control RegulationsECCN : EAR99 / AL : N
Standard lead time ex-works5 Day/Days
Net Weight (kg)16,236 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension258,00 x 490,00 x 180,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209887831
UPCNot available
Commodity Code85362090
LKZ_FDB/ CatalogIDLV10.1
Product Group3740
Group CodeP360
Country of originMexico
Compliance with the substance restrictions according to RoHS directiveSince: 18.01.2011
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationNo
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-04-09
eClass7.127-37-04-09
eClass827-37-04-09
eClass927-37-04-09
eClass9.127-37-04-09
ETIM4EC000228
ETIM5EC000228
ETIM6EC000228
ETIM7EC000228
UNSPSC1439-12-16-01
UNSPSC1539-12-16-01

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
