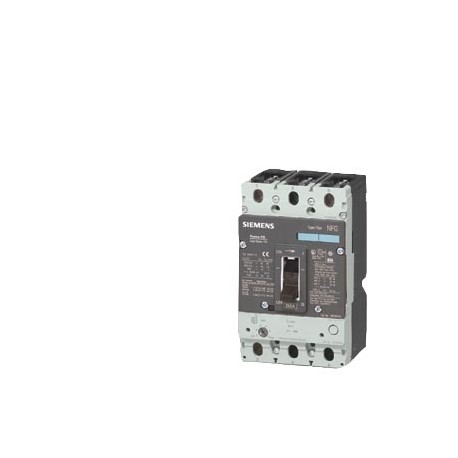

3VL3122-3KN30-0AA0 SIEMENS circuit breaker VL250 UL type FG (cat no. LFX3B225) non-interchangeable frame, wi..
3VL3122-3KN30-0AA0
31223
SIEMENS
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Moulded Case Circuit Breakers 3VL SENTRON
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Siemens 3VL3122-3KN30-0AA0 is a robust circuit breaker designed to safeguard industrial electrical distribution circuits against overcurrents and short circuits. Molded case breakers like this unit interrupt fault currents safely to protect connected equipment and machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 225.0
- Overload release current setting (EF002336): ['225', '225']
- Adjustment range undelayed short-circuit release (EF007131): ['1250', '2500']
- Integrated earth fault protection (EF007296): false
- Device construction (EF008240): Built-in device fixed built-in technique
- Suitable for DIN rail (top hat rail) mounting (EF007250): true
- DIN rail (top hat rail) mounting optional (EF008904): true
- With switched-off indicator (EF007006): false
- With under voltage release (EF007518): false
- Number of poles (EF001391): 3
- Position of connection for main current circuit (EF006671): Front side
- Complete device with protection unit (EF008906): true
- Motor drive integrated (EF006697): false
- Motor drive optional (EF007386): true
- Degree of protection (IP) (EF005474): IP20
- Product Article Number (Market Facing Number): 3VL3122-3KN30-0AA0
More info
▲ETIM: EC000228 - Power circuit-breaker for trafo/generator/installation protection
| Value | Unit | |
|---|---|---|
| Type of control element (EF006976) | - | |
| Rated voltage (EF003977) | - | V |
| Rated permanent current Iu (EF001389) | 225.0 | A |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (EF007048) | 100.0 | kA |
| Overload release current setting (EF002336) | ['225', '225'] | A |
| Adjustment range short-term delayed short-circuit release (EF007129) | ['-', '-'] | A |
| Adjustment range undelayed short-circuit release (EF007131) | ['1250', '2500'] | A |
| Integrated earth fault protection (EF007296) | false | |
| Type of electrical connection of main circuit (EF006819) | Other | |
| Device construction (EF008240) | Built-in device fixed built-in technique | |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | true | |
| DIN rail (top hat rail) mounting optional (EF008904) | true | |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 | |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 | |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 | |
| With switched-off indicator (EF007006) | false | |
| With under voltage release (EF007518) | false | |
| Number of poles (EF001391) | 3 | |
| Position of connection for main current circuit (EF006671) | Front side | |
| Complete device with protection unit (EF008906) | true | |
| Motor drive integrated (EF006697) | false | |
| Motor drive optional (EF007386) | true | |
| Degree of protection (IP) (EF005474) | IP20 |
| Product | ||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3VL3122-3KN30-0AA0 | |||||||||||||||||||||||||||||||||
| Product Description | circuit breaker VL250 UL; type FG (cat no. LFX3B225) non-interchangeable frame, with circuit breaker approval acc. to UL 489 very high breaking capacity 3-pole, NEMA rating 100kA/480V, (molded case circuit breaker) Electronic Trip Unit TM, LI TA=40°C In=< 225A, rated current II=1250...2500A short-circuit protection IR=225A Electronic Trip Unit for line protection without connection accessories without auxiliary release without auxiliary/alarm switch | |||||||||||||||||||||||||||||||||
| Product family | Not available | |||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM400:Phase Out Started | |||||||||||||||||||||||||||||||||
| PLM Effective Date | Product phase-out since: 01.04.2019 | |||||||||||||||||||||||||||||||||
| Notes | Sucessor:Successor portfolio 3VA; further information via www.siemens.com/3VA | |||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||
| Price Group | 12N | |||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||
| Metal Factor | LBO----- | |||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||
| Export Control Regulations | ECCN : EAR99 / AL : N | |||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 5 Day/Days | |||||||||||||||||||||||||||||||||
| Net Weight (kg) | 2,300 Kg | |||||||||||||||||||||||||||||||||
| Product Dimensions (W x L x H) | Not available | |||||||||||||||||||||||||||||||||
| Packaging Dimension | Not available | |||||||||||||||||||||||||||||||||
| Package size unit of measure | Not available | |||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||
| EAN | 4011209685260 | |||||||||||||||||||||||||||||||||
| UPC | Not available | |||||||||||||||||||||||||||||||||
| Commodity Code | 85362010 | |||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | |||||||||||||||||||||||||||||||||
| Product Group | 3742 | |||||||||||||||||||||||||||||||||
| Group Code | P360 | |||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 25.09.2006 | |||||||||||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||
