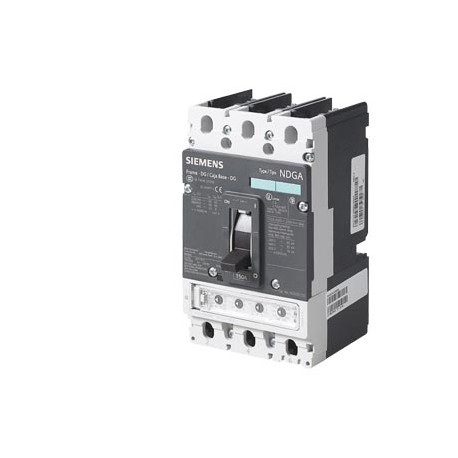

SIEMENS 3VL2515-3PD30-0AA0 3VL2515-3PD30-0AA0 SIEMENS circuit breaker VL150 UL type DG (cat no. LDK3W150) non-interchangeable frame, wi.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3VL2515-3PD30-0AA0 SIEMENS circuit breaker VL150 UL type DG (cat no. LDK3W150) non-interchangeable frame, wi..

3VL2515-3PD30-0AA0

25153

SIEMENS

1 Pcs.

circuit breaker VL150 UL type DG (cat no. LDK3W150) non-interchangeable frame, with circuit breaker approval acc. to UL 489 very high breaking capacity 3-pole; NEMA rating 100KA@480V and 18KA@600/347V (molded case circuit breaker) Electronic Trip Unit ETU, LIG TA=40°C 3 phases/4 lines In=150A, rated current II=1.25-11 xIN, short-circuit protection Ir=60-150A Electronic Trip Unit for line protection without connection accessories without auxiliary/alarm switch

Automation > Power circuit-breaker for trafo/generator/installation protection
Moulded Case Circuit Breakers 3VL SENTRON

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

ETIM: EC000228 - Power circuit-breaker for trafo/generator/installation protection

Value Unit
Rated voltage (EF003977) -V
Adjustment range undelayed short-circuit release (EF007131) -A
Adjustment range short-term delayed short-circuit release (EF007129) -A
Type of control element (EF006976) -
Overload release current setting (EF002336) -A
Rated permanent current Iu (EF001389) 150.0A
Integrated earth fault protection (EF007296) true
Type of electrical connection of main circuit (EF006819) Other
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) true
DIN rail (top hat rail) mounting optional (EF008904) true
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
With switched-off indicator (EF007006) false
With under voltage release (EF007518) false
Number of poles (EF001391) 3
Position of connection for main current circuit (EF006671) Front side
Complete device with protection unit (EF008906) true
Motor drive integrated (EF006697) false
Motor drive optional (EF007386) true
Degree of protection (IP) (EF005474) IP20
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (EF007048) -kA


Product
Article Number (Market Facing Number)3VL2515-3PD30-0AA0
Product Descriptioncircuit breaker VL150 UL type DG (cat no. LDK3W150) non-interchangeable frame, with circuit breaker approval acc. to UL 489 very high breaking capacity 3-pole; NEMA rating 100KA@480V and 18KA@600/347V (molded case circuit breaker) Electronic Trip Unit ETU, LIG TA=40°C 3 phases/4 lines In=150A, rated current II=1.25-11 xIN, short-circuit protection Ir=60-150A Electronic Trip Unit for line protection without connection accessories without auxiliary/alarm switch
Product familyNot available
Product Lifecycle (PLM)PM400:Phase Out Started
PLM Effective DateProduct phase-out since: 01.04.2019
Notes
Sucessor:Successor portfolio 3VA; further information via www.siemens.com/3VA
Price data
Price Group12N
Surcharge for Raw MaterialsNone
Metal FactorLBO-----
Delivery information
Export Control RegulationsECCN : EAR99 / AL : N
Standard lead time ex-works5 Day/Days
Net Weight (kg)2,400 Kg
Product Dimensions (W x L x H)Not available
Packaging DimensionNot available
Package size unit of measureNot available
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EANNot available
UPC887621131319
Commodity Code85362090
LKZ_FDB/ CatalogIDLV10.1
Product Group3742
Group CodeP360
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 06.09.2011
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-04-09
eClass7.127-37-04-09
eClass827-37-04-09
eClass927-37-04-09
eClass9.127-37-04-09
ETIM4EC000228
ETIM5EC000228
ETIM6EC000228
ETIM7EC000228
UNSPSC1439-12-16-01
UNSPSC1539-12-16-01

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
