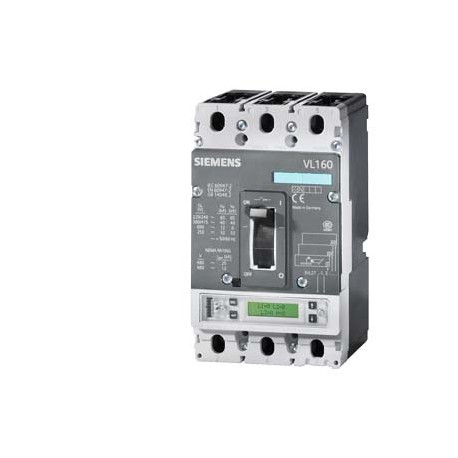

SIEMENS 3VL1110-2KE30-0AA0 3VL1110-2KE30-0AA0 SIEMENS circuit breaker VL150X UL, type CG (cat no. HCS3S100) non-interchangeable frame, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3VL1110-2KE30-0AA0 SIEMENS circuit breaker VL150X UL, type CG (cat no. HCS3S100) non-interchangeable frame, ..

3VL1110-2KE30-0AA0

11102

SIEMENS

1 Pcs.

circuit breaker VL150X UL, type CG (cat no. HCS3S100) non-interchangeable frame, with circuit breaker approval acc. to UL 489 high breaking capacity 3-pole, NEMA rating 65kA/480V (molded case switch) trip unit, magnetic TA=40°C In=<100A rated current II=1800A short-circuit protection without connection accessories without auxiliary release without auxiliary/alarm switch

Automation > Power circuit-breaker for trafo/generator/installation protection
Moulded Case Circuit Breakers 3VL SENTRON

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

ETIM: EC000228 - Power circuit-breaker for trafo/generator/installation protection

Value Unit
Rated voltage (EF003977) -V
Type of control element (EF006976) -
Rated permanent current Iu (EF001389) 100.0A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (EF007048) 70.0kA
Overload release current setting (EF002336) ['-', '-']A
Adjustment range short-term delayed short-circuit release (EF007129) ['-', '-']A
Adjustment range undelayed short-circuit release (EF007131) ['1800', '1800']A
Integrated earth fault protection (EF007296) false
Type of electrical connection of main circuit (EF006819) Other
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) true
DIN rail (top hat rail) mounting optional (EF008904) true
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
With switched-off indicator (EF007006) false
With under voltage release (EF007518) false
Number of poles (EF001391) 3
Position of connection for main current circuit (EF006671) Front side
Complete device with protection unit (EF008906) true
Motor drive integrated (EF006697) false
Motor drive optional (EF007386) true
Degree of protection (IP) (EF005474) IP20


Product
Article Number (Market Facing Number)3VL1110-2KE30-0AA0
Product Descriptioncircuit breaker VL150X UL, type CG (cat no. HCS3S100) non-interchangeable frame, with circuit breaker approval acc. to UL 489 high breaking capacity 3-pole, NEMA rating 65kA/480V (molded case switch) trip unit, magnetic TA=40°C In=<100A rated current II=1800A short-circuit protection without connection accessories without auxiliary release without auxiliary/alarm switch
Product familyNot available
Product Lifecycle (PLM)PM400:Phase Out Started
PLM Effective DateProduct phase-out since: 01.04.2019
Notes
Sucessor:Successor portfolio 3VA; further information via www.siemens.com/3VA
Price data
Price Group12N
Surcharge for Raw MaterialsNone
Metal FactorLCP-----
Delivery information
Export Control RegulationsECCN : EAR99 / AL : N
Standard lead time ex-works5 Day/Days
Net Weight (kg)2,000 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension116,00 x 186,00 x 134,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209713024
UPC040892914061
Commodity Code85362010
LKZ_FDB/ CatalogIDLV10.1
Product Group3742
Group CodeP360
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-04-09
eClass7.127-37-04-09
eClass827-37-04-09
eClass927-37-04-09
eClass9.127-37-04-09
ETIM4EC000228
ETIM5EC000228
ETIM6EC000228
ETIM7EC000228
IDEA44813
UNSPSC1439-12-16-01
UNSPSC1539-12-16-01
