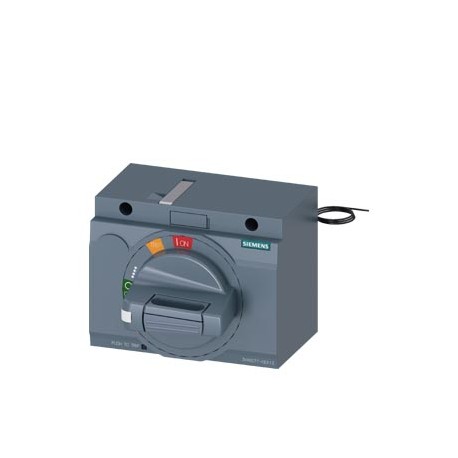

SIEMENS 3VA9277-0FK47 3VA9277-0FK47 SIEMENS door mounted rotary operator emergency-off NEMA type 4, 4X with door interlock 24V DC .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3VA9277-0FK47 SIEMENS door mounted rotary operator emergency-off NEMA type 4, 4X with door interlock 24V DC ..

3VA9277-0FK47

92770

SIEMENS

1 Pcs.

door mounted rotary operator emergency-off NEMA type 4, 4X with door interlock 24V DC lighting kit and door open position accessory for: 3VA6 150/250 3VA5 250

Automation > Accessories/spare parts for low-voltage switch technology
Moulded Case Circuit Breakers 3VA SENTRON

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

ETIM: EC002498 - Accessories/spare parts for low-voltage switch technology

Value Unit
Type of accessory/spare part (EF000215) Other


door mounted rotary operator emergency-off NEMA type 4, 4X with door interlock 24V DC lighting kit and door open position accessory for: 3VA6 150/250 3VA5 250
Model
Product brand nameSENTRON
Product designationAccessories
Product versionDoor-coupling rotary operating mechanism
AccessoriesDoor-coupling rotary operating mechanisms
General technical data
Degree of protection NEMA ratingNEMA 4, 4X
Protection class IPIP65
Mechanical Design
Height82 mm
Width105 mm
Net weight653 g
Certificates
General Product ApprovalEMCDeclaration of Conformity

CSA

UL

Miscellaneous

EAC

RCM

EC/EU-Declaration of Conformity

Shipping Approvalother

LR (Lloyds Register)

Manufacturer Declaration

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications
last modified:08/08/2020


Product
Article Number (Market Facing Number)3VA9277-0FK47
Product Descriptiondoor mounted rotary operator emergency-off NEMA type 4, 4X with door interlock 24V DC lighting kit and door open position accessory for: 3VA6 150/250 3VA5 250
Product familyNot available
Product Lifecycle (PLM)PM490:Start of final year of support
PLM Effective DateProduct discontinued since: 23.10.2018
Notes
Product is no longer available. Successor:3VA9277-0FK37
Successor information
Successor3VA9277-0FK37
Successor Descriptiondoor mounted rotary operator emergency-off NEMA type 1, 3R, 12 4/4X with door interlock 24V DC lighting kit and door open position accessory for: 3VA6 150/250 3VA5 250
Price data
Price Group12P
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsECCN : N / AL : N
Standard lead time ex-works2 Day/Days
Net Weight (kg)0,653 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension110,00 x 115,00 x 450,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4042949015291
UPC804766324628
Commodity Code85389099
LKZ_FDB/ CatalogIDLV10
Product Group5386
Group CodeP360
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.01.2016
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationNo
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
Not available
