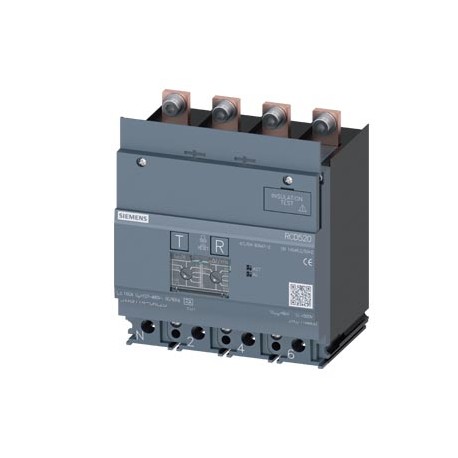

SIEMENS 3VA9114-0RL20 3VA9114-0RL20 SIEMENS residual current device RCD520 basic RCD type A loadside mounted rated resid. current .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3VA9114-0RL20 SIEMENS residual current device RCD520 basic RCD type A loadside mounted rated resid. current ..

3VA9114-0RL20

91140

SIEMENS

1 Pcs.

residual current device RCD520 basic RCD type A loadside mounted rated resid. current 0.03...5 A at 50/60 Hz adjustable tv 0...3000 ms 4-pole In=160 A Ue=100-480 V accessory for: 3VA1 PROTEC UNIT. DIFFERENTIAL RCD520 BASIC RCD TYPE A MOUNTED DOWN SENSITIVITY ASSIGNED 0,03...5A WITH 50/60HZ EINSTELLBARER TV 0...1000MSEK 4- POLIG IN=160A UE=100-480V ACCESSORY FOR: 3VA1. Cancelations and returns limited. Consult conditions.

Automation > Accessories/spare parts for low-voltage switch technology
Moulded Case Circuit Breakers 3VA SENTRON

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Product
Article Number (Market Facing Number)3VA9114-0RL20
Product Descriptionresidual current device RCD520 basic RCD type A loadside mounted rated resid. current 0.03...5 A at 50/60 Hz adjustable tv 0...3000 ms 4-pole In=160 A Ue=100-480 V accessory for: 3VA1
Product familyAccessories and Spare Parts 3VA9, for IEC Circuit Breakers up to 1250A
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group12P / 53M
Surcharge for Raw MaterialsNone
Metal FactorL-A-----
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99
Standard lead time ex-works3 Day/Days
Net Weight (kg)0,899 Kg
Packaging Dimension116,00 x 134,00 x 117,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4042949002024
UPC804766449185
Commodity Code85363090
LKZ_FDB/ CatalogIDLV10.1
Product Group5376
Group CodeP360
Country of originChina
Compliance with the substance restrictions according to RoHS directiveSince: 01.04.2014
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number
Classifications
VersionClassification
eClass1227-37-13-92
eClass1427-37-13-92
eClass627-37-92-01
eClass7.127-37-92-01
eClass827-37-92-01
eClass927-37-92-01
eClass9.127-37-92-01
ETIM10EC002498
ETIM7EC002498
ETIM8EC002498
ETIM9EC002498
UNSPSC1539-12-11-03

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
