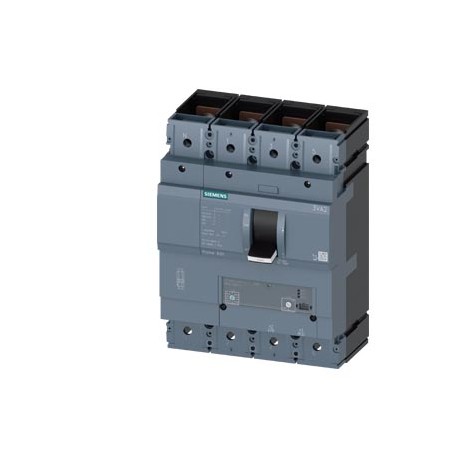

circuit breaker 3VA2 IEC frame 630 breaking capacity class H Icu=85kA @ 415V 4-pole, line protection ETU350, LSI, In=400A overload protection Ir=160A...400A short-circuit protection Isd=1.5...10 x Ir, Ii=12 x In N conductor protection adjustable (OFF, 50%, 100%) nut keeper kit CIRCUIT SWITCH 3VA2 IEC SIZE 630 CUTTING POWER CLASS H ICU=85KA @ 415 V 4 POLES, PROTEC. ETU350, LSI, IN=400A OVERLOAD PROTECTION IR=160A ... 400A SHORT CIRCUIT PROTECTION ISD=1.5... 10 X IR, II=12 X IN ADJUSTABLE NEUTRAL PROTECTION (OFF, 50%,100%) FLAT CONNECTION WITH SCREW. Manufactured to order. Non-Cancelable Non-Returnable.

Automation > Power circuit-breaker for trafo/generator/installation protection
Moulded Case Circuit Breakers 3VA SENTRON

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Technical data

circuit breaker 3VA2 IEC frame 630 breaking capacity class H Icu=85kA @ 415V 4-pole, line protection ETU350, LSI, In=400A overload protection Ir=160A...400A short-circuit protection Isd=1.5...10 x Ir, Ii=12 x In N conductor protection adjustable (OFF, 50%, 100%) nut keeper kit
Model
product brand nameSENTRON
product designationMolded case circuit breaker
Product versionLine protection
design of the overcurrent releaseETU350
protection function of the overcurrent releaseLSI
number of poles4
General technical data
rated insulation voltage Ui800 V
power loss [W] / maximum63.5 W
Active power loss / for rated value of the current / at AC / in hot operating state / per pole21.17 W
mechanical service life (switching cycles) / typical20 000
Electrical endurance (switching cycles) / at AC-1 / at 380/415 V 50/60 Hz5 000
Electrical endurance (switching cycles) / at AC-1 / at 690 V 50/60 Hz3 500
Neutral conductors / upgradeable/retrofittableNo
ground-fault monitoring versionWithout
product function
● communication functionNo
● other measurement functionNo
Net Weight6.115 kg
Current
Max. rated operational current of the frame size630 A
Courant permanent assigné Iu400 A
short-time withstand current (Icw)
● limited to 1 s5 kA
operational current
● at 40 °C400 A
● at 45 °C400 A
● at 50 °C400 A
● at 55 °C400 A
● at 60 °C400 A
● at 65 °C400 A
● at 70 °C400 A
Switching capacity according to IEC 60947
switching capacity class of the circuit breakerH
breaking capacity maximum short-circuit current (Icu)
● at 240 V110 kA
● at 415 V85 kA
● at 440 V85 kA
● at 500 V55 kA
● at 690 V6 kA
breaking capacity operating short-circuit current (Ics)
● at 240 V110 kA
● at 415 V85 kA
● at 440 V85 kA
● at 500 V55 kA
● at 690 V6 kA
short-circuit current making capacity (Icm)
● at 240 V242 kA
● at 415 V187 kA
● at 440 V187 kA
● at 500 V121 kA
● at 690 V9 kA
Adjustable parameters
Adjustable response value current / li min.4 800 A
Adjustable response value current / li max.4 800 A
design of the N-conductor protectionadjustable OFF; 50%; 100%
Ground fault protection / tripping switchable / I2t=ON/OFFNo
Mechanical Design
height [in]9.76 in
Height248 mm
width [in]7.24 in
Width184 mm
depth [in]4.33 in
depth110 mm
Connections
arrangement of electrical connectors / for main current circuitFront terminal
type of electrical connection / for main current circuiton both sides nut keeper kit
Type of connectable conductor cross-section, connection screw, width x thickness , min.20 x 1 mm
Type of connectable conductor cross-section, connection screw, width x thickness , max.35 x 10 mm
Auxiliary circuit
product component
● undervoltage releaseNo
● voltage triggerNo
● trip indicatorNo
number of CO contacts / for auxiliary contacts0
Accessories
product extension / optional / motor driveYes
Environmental conditions
protection class IP / on the frontIP40
ambient temperature
● during operation / minimum-25 °C
● during operation / maximum70 °C
● during storage / minimum-40 °C
● during storage / maximum80 °C
Certificates
reference code / according to IEC 81346-2Q

Downloads and manuals

General Product ApprovalEMC

CCC

Confirmation

VDE

Miscellaneous

EAC

RCM

Declaration of ConformityTest CertificatesMarine / Shipping

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Type Test Certificates/Test Report

Miscellaneous

Special Test Certificate

ABS (American Bureau of Shipping)

Marine / Shippingother

BV / Bureau Veritas

DNV / Det Norske Veritas

LR (Lloyds Register)

RMRS / Russian Maritime Register

CCS / China Classification Society

Miscellaneous

other

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications
last modified:6/11/2021
Date
5/16/2022


Additional data

Product
Article Number (Market Facing Number)3VA2440-6HN42-0AA0
Product Descriptioncircuit breaker 3VA2 IEC frame 630 breaking capacity class H Icu=85kA @ 415V 4-pole, line protection ETU350, LSI, In=400A overload protection Ir=160A...400A short-circuit protection Isd=1.5...10 x Ir, Ii=12 x In N conductor protection adjustable (OFF, 50%, 100%) nut keeper kit
Product family3VA Molded Case Circuit Breakers up to 1600 A, IEC
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group12P / 1CB
Surcharge for Raw MaterialsNone
Metal FactorLOA-----
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99
Standard lead time ex-works20 Day/Days
Net Weight (kg)6,115 Kg
Packaging Dimension210,00 x 265,00 x 170,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4042948808023
UPC804766432873
Commodity Code85362090
LKZ_FDB/ CatalogIDLV10.1
Product Group5374
Group CodeP360
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.04.2014
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Silicic acid, lead salt

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-04-09
eClass7.127-37-04-09
eClass827-37-04-09
eClass927-37-04-09
eClass9.127-37-04-09
ETIM5EC000228
ETIM6EC000228
ETIM7EC000228
ETIM8EC000228
IDEA44850
UNSPSC1539-12-16-01

ETIM data

ETIM: EC000228 - Power circuit-breaker for trafo/generator/installation protection

Value Unit
Rated permanent current Iu (EF001389) 400.0A
Rated voltage (EF003977) ['690', '690']V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (EF007048) 85.0kA
Overload release current setting (EF002336) ['160', '400']A
Adjustment range short-term delayed short-circuit release (EF007129) ['600', '4000']A
Adjustment range undelayed short-circuit release (EF007131) ['4800', '4800']A
Integrated earth fault protection (EF007296) false
Type of electrical connection of main circuit (EF006819) Screw connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) true
DIN rail (top hat rail) mounting optional (EF008904) true
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
With switched-off indicator (EF007006) -
With under voltage release (EF007518) -
Number of poles (EF001391) 4
Position of connection for main current circuit (EF006671) Front side
Type of control element (EF006976) Rocker lever
Complete device with protection unit (EF008906) true
Motor drive integrated (EF006697) false
Motor drive optional (EF007386) true
Degree of protection (IP) (EF005474) IP40



Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
