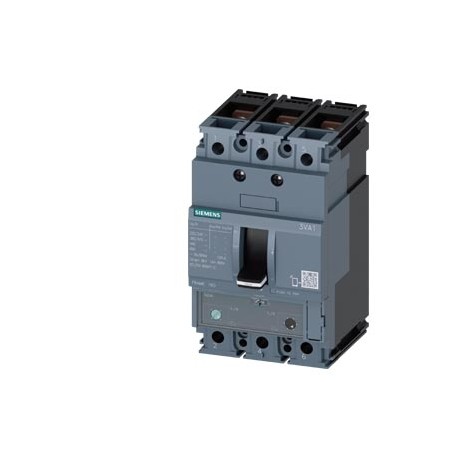

3VA1140-4EF32-0AA0 SIEMENS circuit breaker 3VA1 IEC frame 160 breaking capacity class S Icu 36kA @ 415V 3-po..
3VA1140-4EF32-0AA0
11404
SIEMENS
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Moulded Case Circuit Breakers 3VA SENTRON
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Siemens molded case circuit breaker provides reliable line protection for electrical distribution circuits in industrial and commercial buildings. It is designed to trip during overcurrent events, preventing damage to downstream wiring and connected equipment.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- product designation: Molded case circuit breaker
- Product version: Line protection
- design of the overcurrent release: TM240
- protection function of the overcurrent release: LI
- number of poles: 3
- General technical data rated insulation voltage Ui: 800 V
- Max. rated operational voltage Ue with DC: 500 V
- power loss [W] / maximum: 10.8 W
- mechanical service life (switching cycles) / typical: 20 000
- Neutral conductors / upgradeable/retrofittable: No
- ground-fault monitoring version: Without
- ● communication function: No
- ● other measurement function: No
- Net Weight: 960 g
- Current Max. rated operational current of the frame size: 160 A
- Courant permanent assigné Iu: 40 A
More info
▲Technical data
Additional data
| Product | |||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3VA1140-4EF32-0AA0 | ||||||||||||||||||||||||||||||||||||
| Product Description | circuit breaker 3VA1 IEC frame 160 breaking capacity class S Icu=36kA @ 415V 3-pole, line protection TM240, ATAM, In=40A overload protection Ir=28A...40A short-circuit protection Ii=5...10 x In nut keeper kit | ||||||||||||||||||||||||||||||||||||
| Product family | 3VA Molded Case Circuit Breakers up to 1600 A, IEC | ||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CB | ||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
| Metal Factor | LOA----- | ||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : EAR99 | ||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 2 Day/Days | ||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,960 Kg | ||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 92,00 x 150,00 x 116,00 | ||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||
| EAN | 4042948808672 | ||||||||||||||||||||||||||||||||||||
| UPC | 804766425202 | ||||||||||||||||||||||||||||||||||||
| Commodity Code | 85362010 | ||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | ||||||||||||||||||||||||||||||||||||
| Product Group | 5375 | ||||||||||||||||||||||||||||||||||||
| Group Code | P360 | ||||||||||||||||||||||||||||||||||||
| Country of origin | Czech Republic | ||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.04.2014 | ||||||||||||||||||||||||||||||||||||
| Product class | B: return restricted, please contact your Siemens partner/contact | ||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000228 - Power circuit-breaker for trafo/generator/installation protection
| Value | Unit | |
|---|---|---|
| Rated permanent current Iu (EF001389) | 40.0 | A |
| Rated voltage (EF003977) | ['690', '690'] | V |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (EF007048) | 36.0 | kA |
| Overload release current setting (EF002336) | ['28', '40'] | A |
| Adjustment range short-term delayed short-circuit release (EF007129) | ['-', '-'] | A |
| Adjustment range undelayed short-circuit release (EF007131) | ['200', '400'] | A |
| Integrated earth fault protection (EF007296) | false | |
| Type of electrical connection of main circuit (EF006819) | Screw connection | |
| Device construction (EF008240) | Built-in device fixed built-in technique | |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | true | |
| DIN rail (top hat rail) mounting optional (EF008904) | true | |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 | |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 | |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 | |
| With switched-off indicator (EF007006) | - | |
| With under voltage release (EF007518) | - | |
| Number of poles (EF001391) | 3 | |
| Position of connection for main current circuit (EF006671) | Front side | |
| Type of control element (EF006976) | Rocker lever | |
| Complete device with protection unit (EF008906) | true | |
| Motor drive integrated (EF006697) | false | |
| Motor drive optional (EF007386) | true | |
| Degree of protection (IP) (EF005474) | IP40 |
