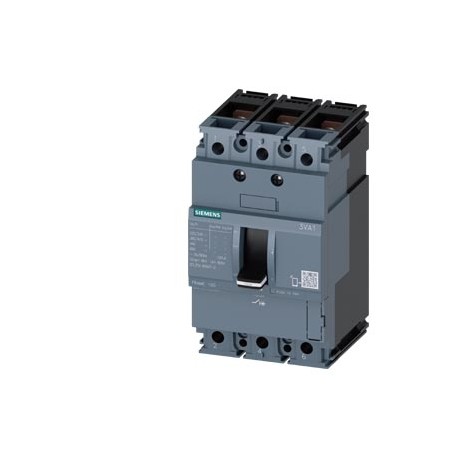

SIEMENS 3VA1032-4ED32-0AA0 3VA1032-4ED32-0AA0 SIEMENS circuit breaker 3VA1 IEC Frame 100 breaking capacity class S Icu 36 kA @ 415 V 3-.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3VA1032-4ED32-0AA0 SIEMENS circuit breaker 3VA1 IEC Frame 100 breaking capacity class S Icu 36 kA @ 415 V 3-..

3VA1032-4ED32-0AA0

10324

SIEMENS

1 Pcs.

circuit breaker 3VA1 IEC Frame 100 breaking capacity class S Icu=36 kA @ 415 V 3-pole, line protection TM210, FTFM, In=32 A overload protection Ir=32 A permanently set short-circuit protection Ii=10 x In nut keeper kit AUTOMATIC SWITCH 3VA1 IEC SIZE 100 CUTTING POWER CLASS S ICU=36KA @ 415 V 3 POLES, PROTEC. TM210, FTFM, IN=32A OVERLOAD PROTECTION IR=32A FIXED ADJUSTMENT SHORT CIRCUIT PROTECTION II=10 X IN FLAT SCREW CONNECTION. Cancelations and returns limited. Consult conditions.

Automation > Power circuit-breaker for trafo/generator/installation protection
Moulded Case Circuit Breakers 3VA SENTRON

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Product
Article Number (Market Facing Number)3VA1032-4ED32-0AA0
Product Descriptioncircuit breaker 3VA1 IEC Frame 100 breaking capacity class S Icu=36 kA @ 415 V 3-pole, line protection TM210, FTFM, In=32 A overload protection Ir=32 A permanently set short-circuit protection Ii=10 x In nut keeper kit
Product family3VA Molded Case Circuit Breakers up to 1600 A, IEC
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group12P / 53J
Surcharge for Raw MaterialsNone
Metal FactorLOA-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works3 Day/Days
Net Weight (kg)0,935 Kg
Packaging Dimension95,00 x 155,00 x 130,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4042948811658
UPC804766431456
Commodity Code85362010
LKZ_FDB/ CatalogIDLV10.1
Product Group5375
Group CodeP360
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.04.2014
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number
Classifications
VersionClassification
eClass1227-37-04-09
eClass1427-37-04-09
eClass627-37-04-09
eClass7.127-37-04-09
eClass827-37-04-09
eClass927-37-04-09
eClass9.127-37-04-09
ETIM10EC000228
ETIM7EC000228
ETIM8EC000228
ETIM9EC000228
IDEA44850
UNSPSC1539-12-16-01

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
