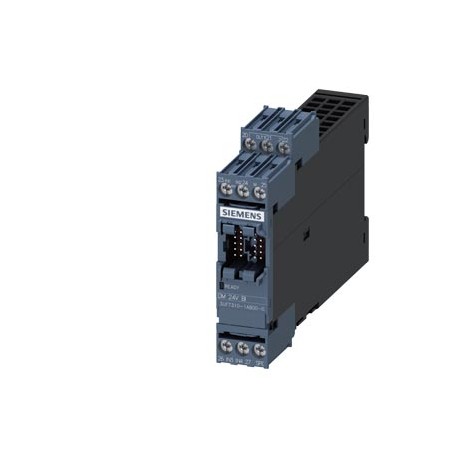

3UF7310-1AB00-0 SIEMENS Digital module, 4 inputs and 2 relay outputs, input voltage 24 V DC, relay outputs b..
3UF7310-1AB00-0
73101
SIEMENS
1 Pcs.
Automation > Extension module for motor management device
AS-Interface switchgear, SIMOCODE
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Siemens digital module, specifically model 3UF7310-1AB00-0, is an expansion component utilized within motor management systems to gather discrete field signals and control auxiliary circuits in automated industrial setups. Such modules extend the input and output capabilities of base controllers, facilitating complex interlocking and status reporting across manufacturing machinery.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- product designation: digital modules
- ● input for thermistor connection: No
- ● digital input: Yes
- ● input for analog temperature sensors: No
- ● input for ground fault detection: No
- ● relay output: Yes
- consumed active power: 0.7 W
- surge voltage resistance rated value: 4 000 V
- protection class IP: IP20
- shock resistance according to IEC 60068-2-27: 15g / 11 ms
- vibration resistance according to IEC 60068-2-6: 1 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2g
- ● at 24 V: 6 A
- ● at 120 V: 6 A
- ● at 230 V: 3 A
- ● at 24 V: 2 A
- ● at 60 V: 0.55 A
More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3UF7310-1AB00-0 | |||||||||||||||||||||||||||||||||||||||
| Product Description | Digital module, 4 inputs and 2 relay outputs, input voltage 24 V DC, relay outputs bistable, max. 2 digital modules, for SIMOCODE pro V basic unit | |||||||||||||||||||||||||||||||||||||||
| Product family | SIMOCODE pro 3UF7 motor management and control devices | |||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 42J / 42J | |||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 1 Day/Days | |||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,149 Kg | |||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 28,00 x 108,50 x 147,00 | |||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4011209606210 | |||||||||||||||||||||||||||||||||||||||
| UPC | 754554901909 | |||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85371098 | |||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | |||||||||||||||||||||||||||||||||||||||
| Product Group | 5836 | |||||||||||||||||||||||||||||||||||||||
| Group Code | R711 | |||||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 | |||||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC002613 - Extension module for motor management device
| Value | Unit | |
|---|---|---|
| Degree of protection (NEMA) (EF011959) | - | |
| Model (EF000010) | Digital module | |
| Switching function (EF000189) | Bistable | |
| Rated control supply voltage Us at DC (EF003980) | ['24', '24'] | V |
| Voltage type for actuating (EF008242) | DC | |
| Number of analogue inputs (EF001994) | 0 | |
| Number of analogue outputs (EF001995) | 0 | |
| Number of outputs, with contact (EF006936) | 2 | |
| Number of electronic outputs (EF006929) | 0 | |
| Number of binary inputs (EF003817) | 4 | |
| Input for thermistor connection (EF007116) | false | |
| Input for earth fault detection (EF007115) | false | |
| Input for analogue temperature sensor (EF007114) | false | |
| Type of electrical connection for auxiliary- and control current circuit (EF006979) | Screw connection | |
| Degree of protection (IP) (EF005474) | IP20 | |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - | V |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - | V |
