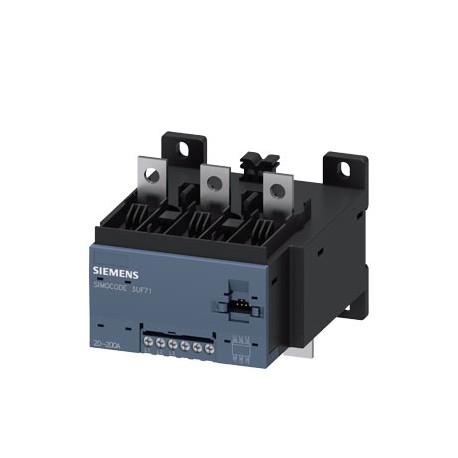

| Current/voltage measuring module V2; Set current 20...200 A, Voltage measurement up to 690 V, Overall width 120 mm, Busbar connection basic unit required pro V PB, pro V MR, pro V PN or pro V EIP |
| product brand name | SIRIUS |
| product designation | Current/voltage measuring module |
| General technical data |
| product function | |
| ● current measurement | Yes |
| ● voltage measurement | Yes |
| ● active power measurement | Yes |
| ● power measurement | Yes |
| ● frequency measurement | Yes |
| measuring procedure for current measurement | TRMS |
| current measuring range extension with external current transformers | No |
| measuring procedure for voltage measurement | TRMS |
| measurable supply voltage between the line conductors at AC maximum rated value | 690 V |
| line conductors and neutral conductors internal resistance for voltage measurement | 1 MΩ; RC-based voltage divider |
| product component | |
| ● input for thermistor connection | No |
| consumed active power | 0.5 W |
| insulation voltage | |
| ● with degree of pollution 3 at AC rated value | 690 V |
| ● for wires of main circuit according to IEC 60947-1 rated value | 6 kV |
| surge voltage resistance rated value | 6 000 V |
| protection class IP | IP00 |
| shock resistance according to IEC 60068-2-27 | 15g / 11 ms; with basic unit snapped on |
| vibration resistance | 1-6 Hz / 15 mm; 6-500 Hz / 2 g; with basic unit snapped on: 1g |
| reference code according to IEC 81346-2 | F |
| Substance Prohibitance (Date) | 05/28/2009 |
| certificate of suitability | |
| ● according to ATEX directive 2014/34/EU | BVS 06 ATEX F001 |
| explosion device group and category according to ATEX directive 2014/34/EU | II (2) G, II (2 ) D, I (M2) |
| Electromagnetic compatibility |
| EMC emitted interference according to IEC 60947-1 | class A |
| EMC immunity according to IEC 60947-1 | corresponds to degree of severity 3 |
| conducted interference | |
| ● due to burst according to IEC 61000-4-4 | 2 kV |
| ● due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| ● due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| Inputs/ Outputs |
| number of outputs as contact-affected switching element | 0 |
| Protective and monitoring functions |
| product function | |
| ● power factor monitoring | Yes |
| ● ground-fault monitoring | Yes |
| ● voltage detection | Yes |
| product function | |
| ● current detection | Yes |
| ● overload protection | Yes |
| Precision |
| measuring precision | |
| ● of frequency measurement | +/- 1,5 %, 15 A ... 1600 A, 0,85 x 110 V ... 1,1 x 690 V (line-to-line voltages), cos phi (0.5...1), 50/60 Hz, 25 °C |
| ● for current measurement 1 | +/- 1.5 %, in range 15 A ... 400 A, in range 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), 50/60 Hz, 25 °C |
| ● for current measurement 2 | +/- 5%, in range 400 A ... 1600 A, in range 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), 50/60 Hz, 25 °C |
| ● for voltage measurement 1 | +/- 1.5 %, in range 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), 50/60 Hz, 25 °C |
| ● at cos phi-measurement 1 | +/- 1.5 %, 15 A ... 400 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos phi (0.5...1), 50/60 Hz, 25 °C |
| ● at cos phi-measurement 2 | +/- 5%, 400 A ... 1600 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos-phi (0.5...1), 50/60 Hz, 25 °C |
| ● at active power measurement 1 | +/- 5%, 15 A ... 400 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos-phi (0.5...1), 50/60 Hz, 25 °C |
| ● at active power measurement 2 | +/- 10%, 400 A ... 1600 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos-phi (0.5...1), 50/60 Hz, 25 °C |
| ● at energy measurement 1 | +/- 5 %, 47 ... 1260 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos phi (0.5...1), 50/60 Hz, 25 °C |
| ● at energy measurement 2 | +/- 10%, 400 A ... 1600 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos-phi (0.5...1), 50/60 Hz, 25 °C |
| ● at apparent power measurement 1 | +/- 3%, 15 A ... 400 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos-phi (0.5...1), 50/60 Hz, 25 °C |
| ● at apparent power measurement 2 | +/- 5 %, 400 A ... 1600 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos phi (0.5...1), 50/60 Hz, 25 °C |
| accuracy of ground-fault monitoring | In the range 30 % .. 120 %/Is: +/- 10 % (Class CI-A), in range 15 % .. 30 % Ie: +/- 25 % (Class CI-B), both values acc. to IEC 60947-1 Annex T |
| temperature drift per °C | 0.01 %/°C; Reference temperature: 25°C |
| measured variable frequency | 45 ... 65 Hz |
| Installation/ mounting/ dimensions |
| mounting position | any |
| fastening method | direct mounting / stand-alone installation |
| height | 119 mm |
| width | 120 mm |
| depth | 145 mm |
| required spacing | |
| ● top | 30 mm |
| ● bottom | 30 mm |
| ● left | 0 mm |
| ● right | 0 mm |
| Connections/ Terminals |
| type of electrical connection at the measurement inputs for voltage | screw-type terminals |
| type of connectable conductor cross-sections at the measurement inputs for voltage | |
| ● finely stranded with core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²) |
| ● solid | 1x (0.5 ... 4 mm²), 2x (0.5 ... 2.5 mm²) |
| ● at AWG cables solid | 1x (20 ... 12), 2x (20 ... 14) |
| ● at AWG cables stranded | 1x (20 ... 14), 2x (20 ... 16) |
| tightening torque at the measurement inputs for voltage | 0.8 ... 1.2 N·m |
| tightening torque [lbf·in] at the measurement inputs for voltage | 7 ... 10.3 lbf·in |
| type of connectable conductor cross-sections at the measurement inputs for current | |
| ● solid with core end processing | 16 mm² ... 95 mm² |
| ● stranded with core end processing | 25 mm² ... 120 mm² |
| ● at AWG cables | 4/0 kcmil ... 250 kcmil |
| design of the thread of the connection screw at the measurement inputs for current | M8 x 25 |
| Ambient conditions |
| installation altitude at height above sea level | |
| ● 1 maximum | 2 000 m |
| ● 2 maximum | 3 000 m; max. +50 °C (no protective separation) |
| ● 3 maximum | 4 000 m; max. +40 °C (no protective separation) |
| ambient temperature | |
| ● during operation | -25 ... +60 °C |
| ● during storage | -40 ... +80 °C |
| ● during transport | -40 ... +80 °C |
| environmental category | |
| ● during operation according to IEC 60721 | 3K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6 |
| ● during storage according to IEC 60721 | 1K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4 |
| ● during transport according to IEC 60721 | 2K2, 2C1, 2S1, 2M2 |
| relative humidity during operation | 10 ... 95 % |
| Short-circuit protection |
| product function short circuit protection | No |
| Galvanic isolation |
| (electrically) protective separation according to IEC 60947-1 | All circuits with protective separation (double creepage paths and clearances), the information in the "Protective Separation" test report, No. A0258, must be observed (link see further information) |
| Main circuit |
| number of poles for main current circuit | 3 |
| adjustable current response value current of the current-dependent overload release | 20 ... 200 A |
| operating voltage | |
| ● at AC | |
| — at 50 Hz rated value | 110 ... 690 V |
| — at 60 Hz rated value | 110 ... 690 V |
| operating frequency rated value | 50 ... 60 Hz |
| Control circuit/ Control |
| type of voltage | AC |
| inrush current maximum | 2 000 A; 10 x Io |
| Certificates/ approvals |
