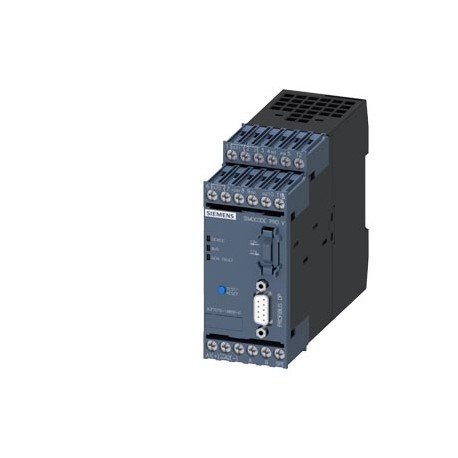

| Basic unit SIMOCODE pro V PB PROFIBUS DP interface 12 Mbit/s, RS 485, 4I/3O freely parameterizable, Us: 24 V DC, input for thermistor connection Monostable relay outputs, expandable by extension modules |
| product brand name | SIRIUS |
| product designation | Motor management system |
| design of the product | basic unit 2 |
| product type designation | SIMOCODE pro V PB |
| General technical data |
| product function | |
| ● bus communication | Yes |
| ● data acquisition function | Yes |
| ● diagnostics function | Yes |
| ● password protection | Yes |
| ● test function | Yes |
| ● maintenance function | Yes |
| product component | |
| ● input for thermistor connection | Yes |
| ● digital input | Yes |
| ● input for analog temperature sensors | No |
| ● input for ground fault detection | No |
| ● relay output | Yes |
| product extension | |
| ● temperature monitoring module | Yes |
| ● current measuring module | Yes |
| ● current/voltage measuring module | Yes |
| ● fail-safe digital I/O module | Yes |
| ● ground-fault monitoring module | Yes |
| ● control unit with display | Yes |
| ● control unit | Yes |
| ● analog I/O module | Yes |
| consumed active power | 2.6 W |
| insulation voltage with degree of pollution 3 at AC rated value | 300 V |
| surge voltage resistance rated value | 4 000 V |
| protection class IP | IP20 |
| shock resistance | |
| ● according to IEC 60068-2-27 | 15g / 11 ms |
| |
| ● vibration resistance | 1-6 Hz / 15 mm; 6-500 Hz / 2 g |
| switching capacity current of the NO contacts of the relay outputs at AC-15 | |
| ● at 24 V | 6 A |
| ● at 120 V | 6 A |
| ● at 230 V | 3 A |
| switching capacity current of the NO contacts of the relay outputs at DC-13 | |
| ● at 24 V | 2 A |
| ● at 60 V | 0.55 A |
| ● at 125 V | 0.25 A |
| mechanical service life (switching cycles) typical | 10 000 000 |
| electrical endurance (switching cycles) typical | 100 000 |
| buffering time in the event of power failure | 0.05 s |
| reference code according to IEC 81346-2 | F |
| continuous current of the NO contacts of the relay outputs | |
| ● at 50 °C | 6 A |
| ● at 60 °C | 5 A |
| type of input characteristic | Type 1 in accordance with EN 61131-2 |
| Substance Prohibitance (Date) | 05/01/2012 |
| certificate of suitability | |
| ● IECEx | Yes; IECEx PTB 18.0004X |
| ● according to ATEX directive 2014/34/EU | BVS 06 ATEX F001, PTB 18 ATEX 5003 X |
| explosion device group and category according to ATEX directive 2014/34/EU | II (2) G, II (2 ) D, I (M2) / I (1G/M2), II (1/2) G, II (1G/2D) |
| Electromagnetic compatibility |
| EMC emitted interference according to IEC 60947-1 | class A |
| EMC immunity according to IEC 60947-1 | corresponds to degree of severity 3 |
| conducted interference | |
| ● due to burst according to IEC 61000-4-4 | 2 kV (power ports) / 1 kV (signal ports) |
| ● due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| ● due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| ● due to high-frequency radiation according to IEC 61000-4-6 | 10 V |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| electrostatic discharge according to IEC 61000-4-2 | 6 kV contact discharge / 8 kV air discharge |
| conducted HF interference emissions according to CISPR11 | corresponds to degree of severity A |
| field-bound HF interference emission according to CISPR11 | corresponds to degree of severity A |
| Inputs/ Outputs |
| product function | |
| ● parameterizable inputs | Yes |
| ● parameterizable outputs | Yes |
| number of inputs | 4 |
| ● for thermistor connection | 1 |
| number of digital inputs with a common reference potential | 4 |
| digital input version type 1 acc. to IEC 61131 | Yes |
| input voltage at digital input at DC rated value | 24 V |
| number of outputs | 3 |
| number of semiconductor outputs | 0 |
| number of outputs as contact-affected switching element | 3 |
| switching behavior | monostable |
| type of relay outputs | Monostable |
| wire length for digital signals maximum | 300 m |
| wire length for thermistor connection | |
| ● with conductor cross-section = 0.5 mm² maximum | 50 m |
| ● with conductor cross-section = 1.5 mm² maximum | 150 m |
| ● with conductor cross-section = 2.5 mm² maximum | 250 m |
| Protective and monitoring functions |
| product function | |
| ● asymmetry detection | Yes |
| ● blocking current evaluation | Yes |
| ● power factor monitoring | Yes |
| ● ground fault detection | Yes |
| ● phase failure detection | Yes |
| ● phase sequence recognition | Yes |
| ● voltage detection | Yes |
| ● monitoring of number of start operations | Yes |
| ● overvoltage detection | Yes |
| ● overcurrent detection 1 phase | Yes |
| ● undervoltage detection | Yes |
| ● undercurrent detection 1 phase | Yes |
| ● active power monitoring | Yes |
| product function | |
| ● current detection | Yes |
| ● overload protection | Yes |
| ● evaluation of thermistor motor protection | Yes |
| total cold resistance number of sensors in series maximum | 1.5 kΩ |
| response value of thermoresistor | 3 400 ... 3 800 Ω |
| ● of the short-circuit control | 9 Ω |
| release value of thermoresistor | 1 500 ... 1 650 Ω |
| Motor control functions |
| product function | |
| ● parameterizable overload relay | Yes |
| ● circuit breaker control | Yes |
| ● direct start | Yes |
| ● reverse starting | Yes |
| ● star-delta circuit | Yes |
| ● star-delta reversing circuit | Yes |
| ● Dahlander circuit | Yes |
| ● Dahlander reversing circuit | Yes |
| ● pole-changing switch circuit | Yes |
| ● pole-changing switch reversing circuit | Yes |
| ● slide control | Yes |
| ● valve control | Yes |
| Communication/ Protocol |
| |
| ● protocol is supported PROFIBUS DP protocol | Yes |
| ● protocol is supported PROFINET IO protocol | No |
| ● protocol is supported PROFIsafe protocol | Yes |
| ● protocol is supported Modbus RTU | No |
| ● protocol is supported EtherNet/IP | No |
| ● protocol is supported OPC UA Server | No |
| ● protocol is supported LLDP | No |
| ● protocol is supported Address Resolution Protocol (ARP) | No |
| ● protocol is supported SNMP | No |
| ● protocol is supported HTTPS | No |
| ● protocol is supported NTP | No |
| ● protocol is supported Media Redundancy Protocol (MRP) | No |
| ● product function is supported Device Level Ring (DLR) | No |
| number of interfaces | |
| ● according to PROFINET | 0 |
| ● according to PROFIBUS | 1 |
| ● according to Ethernet/IP | 0 |
| product function | |
| ● web server | No |
| ● shared device | No |
| ● at the Ethernet interface Autocrossover | No |
| ● at the Ethernet interface Autonegotiation | No |
| ● at the Ethernet interface Autosensing | No |
| ● is supported PROFINET system redundancy | No |
| ● supports PROFIenergy measured values | No |
| ● supports PROFIenergy shutdown | No |
| transfer rate maximum | 12 Mbit/s |
| identification & maintenance function | |
| ● I&M0 - device-specific information | Yes |
| ● I&M1 – higher level designation/location designation | Yes |
| ● I&M2 - installation date | Yes |
| ● I&M3 - comment | Yes |
| type of electrical connection of the communication interface | 9-pin SUB-D socket (12 Mbit) / screw terminal (1.5 Mbit) |
| Installation/ mounting/ dimensions |
| mounting position | any |
| fastening method | screw and snap-on mounting |
| height | 111 mm |
| width | 45 mm |
| depth | 124 mm |
| required spacing | |
| ● top | 40 mm |
| ● bottom | 40 mm |
| ● left | 0 mm |
| ● right | 0 mm |
| Connections/ Terminals |
| product component removable terminal for auxiliary and control circuit | Yes |
| type of connectable conductor cross-sections | |
| ● solid | 1x (0.5 ... 4.0 mm²), 2x (0.5 ... 2.5 mm²) |
| ● finely stranded with core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²) |
| ● at AWG cables solid | 1x (20 ... 12), 2x (20 ... 14) |
| ● at AWG cables stranded | 1x (20 ... 14), 2x (20 ... 16) |
| tightening torque with screw-type terminals | 0.8 ... 1.2 N·m |
| tightening torque [lbf·in] with screw-type terminals | 7 ... 10.3 lbf·in |
| type of connectable conductor cross-sections for PROFIBUS wire | 2x 0.34 mm², AWG 22 |
| Ambient conditions |
| installation altitude at height above sea level | |
| ● 1 maximum | 2 000 m |
| ● 2 maximum | 3 000 m; max. +50 °C (no protective separation) |
| ● 3 maximum | 4 000 m; max. +40 °C (no protective separation) |
| ambient temperature | |
| ● during operation | -25 ... +60 °C |
| ● during storage | -40 ... +80 °C |
| ● during transport | -40 ... +80 °C |
| environmental category | |
| ● during operation according to IEC 60721 | 3K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6 |
| ● during storage according to IEC 60721 | 1K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4 |
| ● during transport according to IEC 60721 | 2K2, 2C1, 2S1, 2M2 |
| relative humidity | |
| ● during operation | 5 ... 95 % |
| contact rating of auxiliary contacts according to UL | B300 / R300 |
| Short-circuit protection |
| design of short-circuit protection per output | Fuse links: gG 6 A, quick-response 10 A (IEC 60947-5-1), miniature circuit-breaker C char.: 1.6 A (IEC 60947-5-1) or 6 A (I_K < 500 A) |
| Safety related data |
| touch protection against electrical shock | finger-safe |
| Galvanic isolation |
| (electrically) protective separation according to IEC 60947-1 | All circuits with protective separation (double creepage paths and clearances), the information in the "Protective Separation" test report, No. A0258, must be observed (link see further information) |
| Control circuit/ Control |
| product function soft starter control | Yes |
| type of voltage of the control supply voltage | DC |
| control supply voltage at DC | |
| ● rated value | 24 V |
| control supply voltage 1 at DC rated value | 24 V |
| operating range factor control supply voltage rated value at DC | |
| ● initial value | 0.8 |
| ● full-scale value | 1.2 |
| inrush current peak | |
| ● at 24 V | 11 A |
| duration of inrush current peak | |
| ● at 24 V | 1.1 ms |
| Certificates/ approvals |
