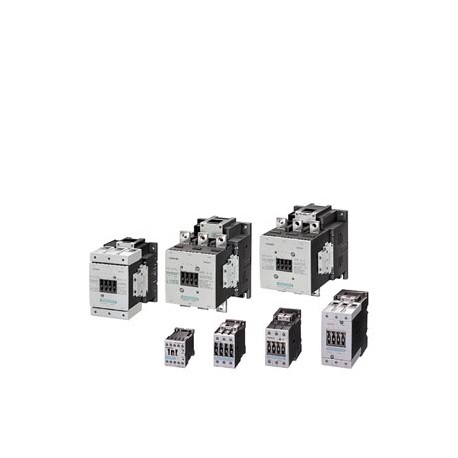

3TX4420-2B SIEMENS Auxiliary switch block, with flat connector terminal for contactor relays and motor conta..
3TX4420-2B
44202
SIEMENS
1 Pcs.
Automation > Auxiliary contact block
Contactor relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Siemens auxiliary switch block mounts onto contactor relays and motor starters to expand secondary control pathways within automated industrial machinery. These blocks ensure reliable switching of low-power instrumentation and control signals. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of fault-signal switches (EF007613): 0
- Protection class IP on the front: IP20
- ● during storage: -55 ... +80 °C
- ● during operation: -25 ... +55 °C
- Mechanical service life (switching cycles) typical: 10 000 000
- Surge voltage resistance rated value: 6 kV
- ● instantaneous contact: 0
- ● lagging switching: 0
- ● instantaneous contact: 2
- ● leading contact: 0
- ● at 24 V: 10 A
- ● at 230 V: 10 A
- ● maximum: 10 A
- — at 125 V: 10 A
- — at 24 V: 10 A
- — at 230 V: 5.6 A
More info
▲ETIM: EC000041 - Auxiliary contact block
| Value | Unit | |
|---|---|---|
| Type of electric connection (EF003961) | - | |
| Number of contacts as normally closed contact (EF008255) | - | |
| Mounting method (EF000003) | - | |
| Rated operation current Ie at AC-15, 230 V (EF001385) | - | A |
| Number of contacts as change-over contact (EF008257) | - | |
| Model (EF000010) | - | |
| Number of contacts as normally open contact (EF008256) | - | |
| Number of fault-signal switches (EF007613) | 0 | |
| Lamp holder (EF000048) | None |
| Product | ||
| Article Number (Market Facing Number) | 3TX4420-2B | |
| Product Description | Auxiliary switch block, with flat connector terminal for contactor relays and motor contactors EN 50005 Ident. no. 20, 2 NO | |
| Product family | Not available | |
| Product Lifecycle (PLM) | PM410:Product cancellation | |
| PLM Effective Date | Product is cancelled since: 01.04.2020 | |
| Price data | ||
| Price Group | 41A | |
| Surcharge for Raw Materials | None | |
| Metal Factor | None | |
| Delivery information | ||
| Export Control Regulations | ECCN : N / AL : N | |
| Standard lead time ex-works | 20 Day/Days | |
| Net Weight (kg) | 0,035 Kg | |
| Product Dimensions (W x L x H) | Not available | |
| Packaging Dimension | 44,00 x 42,00 x 57,00 | |
| Package size unit of measure | MM | |
| Quantity Unit | 1 Piece | |
| Packaging Quantity | 1 | |
| Additional Product Information | ||
| EAN | 4011209173804 | |
| UPC | 754554203102 | |
| Commodity Code | 85365080 | |
| LKZ_FDB/ CatalogID | NSE | |
| Product Group | 5800 | |
| Group Code | R711 | |
| Country of origin | Turkey | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 | |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |
| Classifications | ||
| Not available | ||
