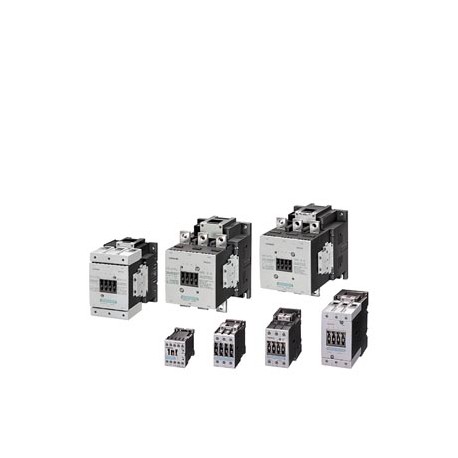

3TX4413-1A SIEMENS Auxiliary switch block, with screw terminal for motor contactors EN 50012 Ident. no. 23 E..
3TX4413-1A
44131
SIEMENS
1 Pcs.
Automation > Auxiliary contact block
Contactor relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Siemens Auxiliary switch block, with screw terminal for motor contactors EN 50012 Ident. no. 23 E.. is an add-on device mounted onto industrial motor contactors to expand control logic capabilities and signal states across automated systems. These blocks are widely deployed in motor control centers for auxiliary interlocking and status feedback. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of contacts as change-over contact (EF008257): 0
- Number of contacts as normally open contact (EF008256): 1
- Number of contacts as normally closed contact (EF008255): 3
- Number of fault-signal switches (EF007613): 0
- Rated operation current Ie at AC-15, 230 V (EF001385): 5.6
- Type of electric connection (EF003961): Screw connection
- Protection class IP on the front: IP20
- ● during storage: -55 ... +80 °C
- ● during operation: -25 ... +55 °C
- Mechanical service life (switching cycles) typical: 10 000 000
- Surge voltage resistance rated value: 6 kV
- ● instantaneous contact: 3
- ● lagging switching: 0
- ● instantaneous contact: 1
- ● leading contact: 0
- ● at 24 V: 10 A
More info
▲ETIM: EC000041 - Auxiliary contact block
| Value | Unit | |
|---|---|---|
| Model (EF000010) | - | |
| Number of contacts as change-over contact (EF008257) | 0 | |
| Number of contacts as normally open contact (EF008256) | 1 | |
| Number of contacts as normally closed contact (EF008255) | 3 | |
| Number of fault-signal switches (EF007613) | 0 | |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 5.6 | A |
| Type of electric connection (EF003961) | Screw connection | |
| Mounting method (EF000003) | Other | |
| Lamp holder (EF000048) | None |
| Product | ||
| Article Number (Market Facing Number) | 3TX4413-1A | |
| Product Description | Auxiliary switch block, with screw terminal for motor contactors EN 50012 Ident. no. 23 E, 1 NO + 3 NC | |
| Product family | Not available | |
| Product Lifecycle (PLM) | PM410:Product cancellation | |
| PLM Effective Date | Product is cancelled since: 01.04.2020 | |
| Price data | ||
| Price Group | 41A | |
| Surcharge for Raw Materials | None | |
| Metal Factor | LDP----- | |
| Delivery information | ||
| Export Control Regulations | ECCN : N / AL : N | |
| Standard lead time ex-works | 5 Day/Days | |
| Net Weight (kg) | 0,046 Kg | |
| Product Dimensions (W x L x H) | Not available | |
| Packaging Dimension | 44,00 x 42,00 x 57,00 | |
| Package size unit of measure | MM | |
| Quantity Unit | 1 Piece | |
| Packaging Quantity | 1 | |
| Additional Product Information | ||
| EAN | 4011209054233 | |
| UPC | 754554402147 | |
| Commodity Code | 85365080 | |
| LKZ_FDB/ CatalogID | CC-IC10 | |
| Product Group | 5800 | |
| Group Code | R711 | |
| Country of origin | Turkey | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 | |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |
| Classifications | ||
| Not available | ||
