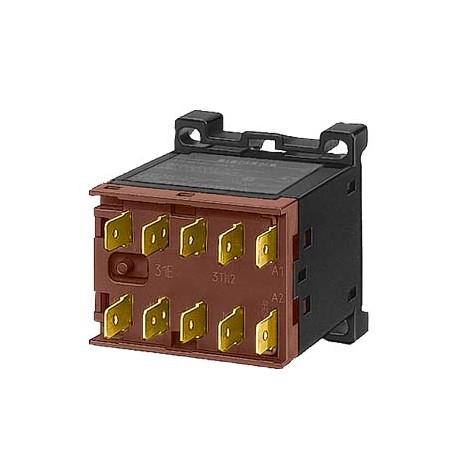

SIEMENS 3TK2022-3BF4 3TK2022-3BF4 SIEMENS Miniature contactor, Flat connector terminal 2 NO + 2 NC Snap-on mounting standard moun.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3TK2022-3BF4 SIEMENS Miniature contactor, Flat connector terminal 2 NO + 2 NC Snap-on mounting standard moun..

3TK2022-3BF4

20223

SIEMENS

1 Pcs.

Miniature contactor, Flat connector terminal 2 NO + 2 NC Snap-on mounting standard mounting rail 110 V DC DC operation !!! Phased-out product !!! Successor is SIRIUS 3RT23/25

Automation > Power contactor, AC switching
Contactors for switching motors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

ETIM: EC000066 - Power contactor, AC switching

Value Unit
Rated operation power NEMA (EF011960) -kW
Rated operation current Ie at AC-1, 400 V (EF001393) -A
Rated control supply voltage Us at DC (EF003980) ['-', '110']V
Voltage type for actuating (EF008242) DC
Rated operation current Ie at AC-3, 400 V (EF001392) 9A
Rated operation power at AC-3, 400 V (EF001364) 4.0kW
Rated operation current Ie at AC-4, 400 V (EF008495) -A
Modular version (EF001126) true
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as normally closed contact (EF001377) 0
Type of electrical connection of main circuit (EF006819) Flat plug-in connection
Number of normally closed contacts as main contact (EF001375) 2
Number of main contacts as normally open contact (EF001374) 2
Rated operation power at AC-4, 400 V (EF008496) -kW
Rated control supply voltage Us at AC 50HZ (EF003978) -V
Rated control supply voltage Us at AC 60HZ (EF003979) -V


Miniature contactor, Flat connector terminal 2 NO + 2 NC Snap-on mounting standard mounting rail 110 V DC DC operation !!! Phased-out product !!! Successor is SIRIUS 3RT23/25
product designationMiniature contactor
product type designation3TK20
Size of contactor0
protection class IP on the frontIP00
reference code acc. to DIN EN 81346-2Q
● ambient temperature during operation-25 ... +55 °C
number of poles for main current circuit4
Number of NO contacts for main contacts2
Number of NC contacts for main contacts2
● Operating current at AC-1 at 400 V
— at ambient temperature 40 °C rated value16 A
● operating current at AC-3 at 400 V rated value9 A
● Operating power at AC-1 at 400 V rated value10 kW
● operating power at AC-3 at 400 V rated value4 kW
Type of voltage of the control supply voltageDC
control supply voltage at DC
● rated value110 V
Control version of the switch operating mechanismconventional
● number of NC contacts for auxiliary contacts0
● Number of NC contacts for auxiliary contacts instantaneous contact0
● Number of NC contacts for auxiliary contacts lagging switching0
Number of NO contacts for auxiliary contacts
● instantaneous contact0
● leading contact0
mounting typescrew and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022
● side-by-side mountingYes
height48 mm
width45 mm
depth64.5 mm
type of electrical connection
● for main current circuittab terminals 6,3 mm
● for auxiliary and control current circuittab terminals 6.3 mm
Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
Characteristic: Tripping characteristics, I²t, Let-through current
Further characteristics (e.g. electrical endurance, switching frequency)
last modified:08/25/2020


Product
Article Number (Market Facing Number)3TK2022-3BF4
Product DescriptionMiniature contactor, Flat connector terminal 2 NO + 2 NC Snap-on mounting standard mounting rail 110 V DC DC operation !!! Phased-out product !!! Successor is SIRIUS 3RT23/25
Product familyNot available
Product Lifecycle (PLM)PM490:Start of final year of support
PLM Effective DateProduct discontinued since: 01.10.2019
Notes
Product was deleted without replacement
If you need assistance please contact our local Siemens office
Price data
Price Group41B
Surcharge for Raw MaterialsNone
Metal FactorL-P-----
Delivery information
Export Control RegulationsECCN : N / AL : N
Standard lead time ex-worksOn request
Net Weight (kg)0,182 Kg
Product Dimensions (W x L x H)Not available
Packaging DimensionNot available
Package size unit of measureNot available
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EANNot available
UPCNot available
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group5809
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
