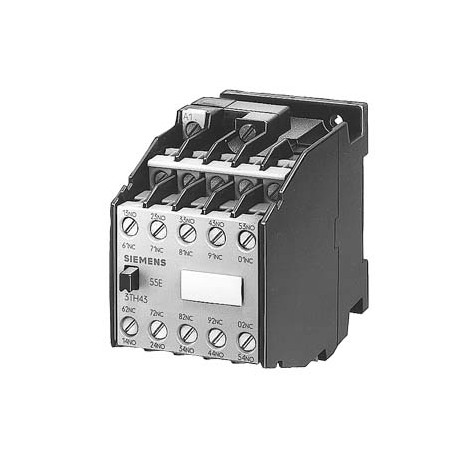

3TH4373-4MF0 SIEMENS Contactor relay, 73E, EN 50011, 7 NO + 3 NC, flat connector terminal AC operation 110 V..
3TH4373-4MF0
43734
SIEMENS
1 Pcs.
Automation > Contactor relay
Contactor relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Siemens 3TH4373-4MF0 SIEMENS Contactor relay, 73E, EN 50011, 7 NO + 3 NC, flat connector terminal AC operation 110 V.. is an industrial contactor relay designed to provide extensive auxiliary contact switching for complex control systems. These relays allow engineers to route multiple control signals reliably across industrial machinery.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- product type designation: 3TH4
- size of contactor: 0
- reference code according to IEC 81346-2: K
- Substance Prohibitance (Date): 03/01/2017
- ambient temperature during operation: -25 ... +55 °C
- type of voltage of the control supply voltage: AC
- ● at 50 Hz rated value: 110 V
- ● at 60 Hz rated value: 132 V
- ● 1 rated value: 50 Hz
- ● 2 rated value: 60 Hz
- number of NC contacts for auxiliary contacts: 3
- ● delayed switching: 0
- ● lagging switching: 0
- ● make-before-break switching: 0
- number of NO contacts for auxiliary contacts: 7
- ● delayed switching: 0
More info
▲Technical data
Additional data
| Product | |||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3TH4373-4MF0 | ||||||||||||||||||||||||||||||||||||
| Product Description | Contactor relay, 73E, EN 50011, 7 NO + 3 NC, flat connector terminal AC operation 110 V AC 50 Hz/132 V AC 60 Hz | ||||||||||||||||||||||||||||||||||||
| Product family | 3TH4 contactor relays, 8- and 10-pole | ||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 41A / 41A | ||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
| Metal Factor | LDO----- | ||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 5 Day/Days | ||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,465 Kg | ||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 62,00 x 97,00 x 135,00 | ||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||
| EAN | 4011209108486 | ||||||||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||||||||
| Commodity Code | 85364900 | ||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | NSE | ||||||||||||||||||||||||||||||||||||
| Product Group | 5801 | ||||||||||||||||||||||||||||||||||||
| Group Code | R711 | ||||||||||||||||||||||||||||||||||||
| Country of origin | Turkey | ||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.03.2017 | ||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000196 - Contactor relay
| Value | Unit | |
|---|---|---|
| Manual operation possible (EF005881) | - | |
| Interface (EF000594) | - | |
| Mounting method (EF000003) | - | |
| With LED indication (EF005950) | - | |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] | V |
| Voltage type for actuating (EF008242) | AC | |
| Rated operation current Ie, 400 V (EF001378) | 6 | A |
| Connection type auxiliary circuit (EF006820) | Other | |
| Number of auxiliary contacts as normally closed contact (EF001377) | 3 | |
| Number of auxiliary contacts as normally open contact (EF001376) | 7 | |
| Number of auxiliary contacts as normally closed contact, delayed switching (EF007281) | 0 | |
| Number of auxiliary contacts as normally open contact, leading (EF007282) | 0 | |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 | |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - | V |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - | V |
