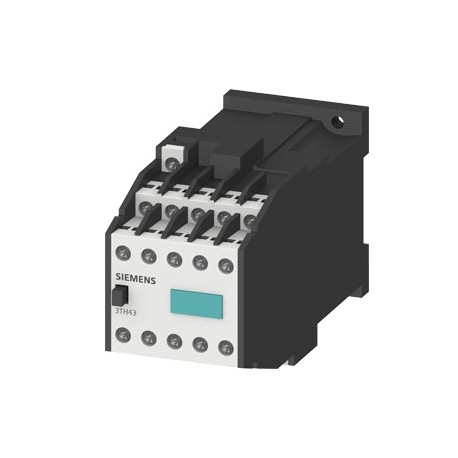

3TH4346-4KB4 SIEMENS Contactor relay, 73E, EN 50011, 7 NO + 3 NC, screw terminal with surge suppression (int..
3TH4346-4KB4
43464
SIEMENS
1 Pcs.
Automation > Contactor relay
Contactor relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing dependable signal routing in industrial environments, the Siemens 3TH4346-4KB4 SIEMENS Contactor relay, 73E, EN 50011, 7 NO + 3 NC, screw terminal with surge suppression (int.. safely handles control circuit switching tasks. Such components are typically deployed in manufacturing automation to expand contact capacities and establish reliable interlocking systems between actuators and controllers. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated control supply voltage Us at DC (EF003980): ['-', '24']
- Voltage type for actuating (EF008242): DC
- Rated operation current Ie, 400 V (EF001378): 6
- Connection type auxiliary circuit (EF006820): Screw connection
- product type designation: 3TH4
- Size of contactor: 0
- protection class IP on the front: IP20
- reference code acc. to DIN EN 81346-2: K
- ● ambient temperature during operation: -25 ... +55 °C
- Type of voltage of the control supply voltage: DC
- ● rated value: 24 V
- Design of the surge suppressor: with diode
- ● number of NC contacts for auxiliary contacts: 2
- ● number of NO contacts for auxiliary contacts: 6
- number of CO contacts for auxiliary contacts: 0
- Identification number and letter for switching elements: 73 E, 1U
More info
▲ETIM: EC000196 - Contactor relay
| Value | Unit | |
|---|---|---|
| Manual operation possible (EF005881) | - | |
| Mounting method (EF000003) | - | |
| Interface (EF000594) | - | |
| With LED indication (EF005950) | - | |
| Rated control supply voltage Us at DC (EF003980) | ['-', '24'] | V |
| Voltage type for actuating (EF008242) | DC | |
| Rated operation current Ie, 400 V (EF001378) | 6 | A |
| Connection type auxiliary circuit (EF006820) | Screw connection | |
| Number of auxiliary contacts as normally closed contact (EF001377) | 2 | |
| Number of auxiliary contacts as normally open contact (EF001376) | 6 | |
| Number of auxiliary contacts as normally closed contact, delayed switching (EF007281) | 0 | |
| Number of auxiliary contacts as normally open contact, leading (EF007282) | 1 | |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 | |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - | V |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - | V |
| Product | |||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3TH4346-4KB4 | ||||||||||||||||||||||||||||||||||||
| Product Description | Contactor relay, 73E, EN 50011, 7 NO + 3 NC, screw terminal with surge suppression (interference suppression diode) 1U DC operation 24 V DC | ||||||||||||||||||||||||||||||||||||
| Product family | 3TH4 contactor relays, 8- and 10-pole | ||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||
| Price Group | 41A | ||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
| Metal Factor | LBP----- | ||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 50 Day/Days | ||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,707 Kg | ||||||||||||||||||||||||||||||||||||
| Product Dimensions (W x L x H) | Not available | ||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 58,00 x 82,00 x 153,00 | ||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||
| EAN | 4011209333253 | ||||||||||||||||||||||||||||||||||||
| UPC | 804766683244 | ||||||||||||||||||||||||||||||||||||
| Commodity Code | 85364900 | ||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | ||||||||||||||||||||||||||||||||||||
| Product Group | 5801 | ||||||||||||||||||||||||||||||||||||
| Group Code | R711 | ||||||||||||||||||||||||||||||||||||
| Country of origin | Turkey | ||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.03.2017 | ||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||
