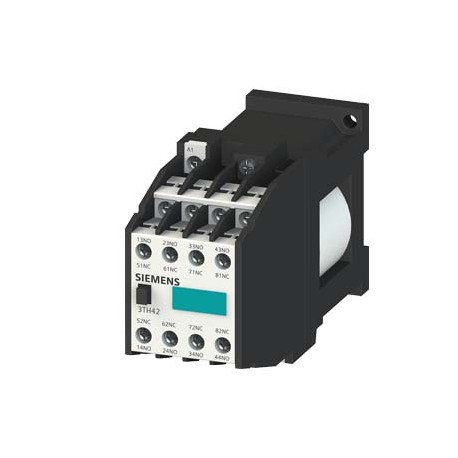

3TH4253-5KB4 SIEMENS Contactor relay, 53E, DIN EN 50011, 5NO + 3NC, screw terminal DC magnet system with int..
3TH4253-5KB4
42535
SIEMENS
1 Pcs.
Automation > Contactor relay
Contactor relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Siemens Contactor relay, 53E, DIN EN 50011, 5NO + 3NC, screw terminal DC magnet system with int features integrated varistor surge suppression to safeguard control architecture from transient voltage spikes. Industrial automation technicians rely on these units for precise logic operations.
Final pricing, availability and lead time are confirmed per enquiry through an RFQ.
- product type designation: 3TH4
- size of contactor: 0
- reference code according to IEC 81346-2: K
- Substance Prohibitance (Date): 03/01/2017
- ambient temperature during operation: -25 ... +55 °C
- type of voltage of the control supply voltage: DC
- ● rated value: 24 V
- design of the surge suppressor: with varistor
- number of NC contacts for auxiliary contacts: 3
- ● delayed switching: 0
- ● lagging switching: 0
- ● make-before-break switching: 0
- number of NO contacts for auxiliary contacts: 5
- ● delayed switching: 0
- ● leading contact: 0
- ● make-before-break switching: 0
More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3TH4253-5KB4 | |||||||||||||||||||||||||||||||||||||||
| Product Description | Contactor relay, 53E, DIN EN 50011, 5NO + 3NC, screw terminal DC magnet system with integr. varistor 24 V DC | |||||||||||||||||||||||||||||||||||||||
| Product family | 3TH4 contactor relays, 8- and 10-pole | |||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 41A / 41A | |||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
| Metal Factor | LBP----- | |||||||||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 5 Day/Days | |||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,684 Kg | |||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 48,00 x 82,00 x 153,00 | |||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4011209048294 | |||||||||||||||||||||||||||||||||||||||
| UPC | 040892905595 | |||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85364900 | |||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | |||||||||||||||||||||||||||||||||||||||
| Product Group | 5801 | |||||||||||||||||||||||||||||||||||||||
| Group Code | R711 | |||||||||||||||||||||||||||||||||||||||
| Country of origin | Turkey | |||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.03.2017 | |||||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000196 - Contactor relay
| Value | Unit | |
|---|---|---|
| Mounting method (EF000003) | - | |
| Interface (EF000594) | - | |
| Manual operation possible (EF005881) | - | |
| With LED indication (EF005950) | - | |
| Rated control supply voltage Us at DC (EF003980) | ['-', '24'] | V |
| Voltage type for actuating (EF008242) | DC | |
| Rated operation current Ie, 400 V (EF001378) | 6 | A |
| Connection type auxiliary circuit (EF006820) | Screw connection | |
| Number of auxiliary contacts as normally closed contact (EF001377) | 3 | |
| Number of auxiliary contacts as normally open contact (EF001376) | 5 | |
| Number of auxiliary contacts as normally closed contact, delayed switching (EF007281) | 0 | |
| Number of auxiliary contacts as normally open contact, leading (EF007282) | 0 | |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 | |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - | V |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - | V |
