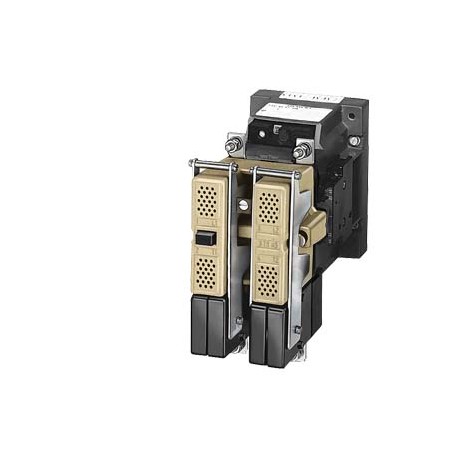

3TC5614-0BK1 SIEMENS Contactor, size 12, 2-pole, Rated operating current 400 A Auxiliary switch 44E (4 NO+4 ..
3TC5614-0BK1
56140
SIEMENS
1 Pcs.
Automation > Power contactor, DC switching
Contactors for switching motors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for heavy-duty industrial switching, the 3TC5614-0BK1 Siemens contactor is a robust 2-pole device designed to handle high-current electrical loads within power distribution and motor control architectures. Large-scale installations rely on these components to safely manage high power levels across demanding operational cycles.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- product type designation: 3TC
- General technical data size of contactor: 12
- ● function module for communication: No
- ● auxiliary switch: No
- insulation voltage rated value: 1 000 V
- ● at AC: 12g / 5 ms, 5,6g / 10 ms
- ● of contactor typical: 10 000 000
- ● of the contactor with added auxiliary switch block typical: 10 000 000
- reference code according to IEC 81346-2: Q
- Substance Prohibitance (Date): 05/01/2012
- ● during operation: -25 ... +55 °C
- ● during storage: -50 ... +80 °C
- relative humidity minimum: 10 %
- Main circuit number of poles: 2
- number of poles for main current circuit: 2
- number of NO contacts for main contacts: 2
More info
▲Technical data
Additional data
| Product | |||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3TC5614-0BK1 | ||||||||||||||||||||||||||||||||||||
| Product Description | Contactor, size 12, 2-pole, Rated operating current 400 A Auxiliary switch 44E (4 NO+4 NC) 120 V AC 60 Hz/100 V AC 50 Hz AC operation AC operation | ||||||||||||||||||||||||||||||||||||
| Product family | 3TC contactors for switching DC voltage, 1-pole and 2-pole | ||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 41B / 41B | ||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
| Metal Factor | LDO----- | ||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | On request | ||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 14,672 Kg | ||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 374,00 x 404,00 x 298,00 | ||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||
| EAN | 4011209208360 | ||||||||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||||||||
| Commodity Code | 85364900 | ||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | ||||||||||||||||||||||||||||||||||||
| Product Group | 5807 | ||||||||||||||||||||||||||||||||||||
| Group Code | R711 | ||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | ||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 | ||||||||||||||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | ||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC002552 - Power contactor, DC switching
| Value | Unit | |
|---|---|---|
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['100.0', '100.0'] | V |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['120.0', '120.0'] | V |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] | V |
| Voltage type for actuating (EF008242) | AC | |
| Rated operation power at DC-3 / DC-5 at 440 V (EF007026) | 140.0 | kW |
| Rated operation current Ie at DC-3 / DC-5 at 440 V (EF007035) | 400 | A |
| Modular version (EF001126) | true | |
| Number of auxiliary contacts as normally open contact (EF001376) | 4 | |
| Number of auxiliary contacts as normally closed contact (EF001377) | 4 | |
| Type of electrical connection of main circuit (EF006819) | Screw connection | |
| Number of normally closed contacts as main contact (EF001375) | 0 | |
| Number of main contacts as normally open contact (EF001374) | 2 |
