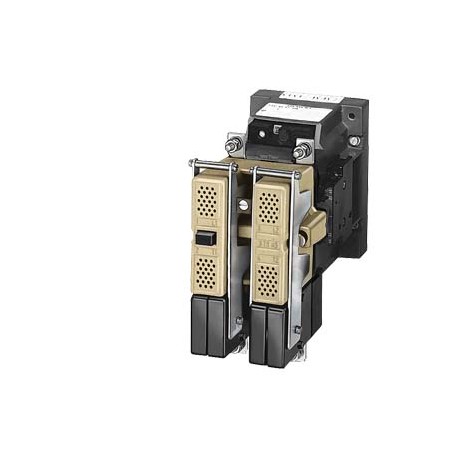

3TC4814-0BM0 SIEMENS Contactor size 4, 2-pole DC-4, Rated operating current 75 A Auxiliary switch 44 E(4 NO ..
3TC4814-0BM0
48140
SIEMENS
1 Pcs.
Automation > Power contactor, DC switching
Contactors for switching motors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Siemens 3TC4814-0BM0 contactor serves as a heavy-duty switching component built to manage direct current loads within automated systems. Engineers implement this hardware in industrial control panels to handle high-power electrical switching reliably. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated control supply voltage Us at AC 50HZ (EF003978): ['220.0', '220.0']
- Rated control supply voltage Us at AC 60HZ (EF003979): ['264.0', '264.0']
- Rated control supply voltage Us at DC (EF003980): ['-', '-']
- Voltage type for actuating (EF008242): AC
- Rated operation power at DC-3 / DC-5 at 440 V (EF007026): 27.0
- Modular version (EF001126): true
- Type of electrical connection of main circuit (EF006819): Screw connection
- Number of main contacts as normally open contact (EF001374): 2
- Product type designation: 3TC
- General technical data Size of contactor: 4
- ● function module for communication: No
- ● Auxiliary switch: Yes
- Insulation voltage rated value: 800 V
- ● Protection class IP: IP00
- ● protection class IP on the front: IP00
- ● Protection class IP of the terminal: IP00
More info
▲ETIM: EC002552 - Power contactor, DC switching
| Value | Unit | |
|---|---|---|
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['220.0', '220.0'] | V |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['264.0', '264.0'] | V |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] | V |
| Voltage type for actuating (EF008242) | AC | |
| Rated operation power at DC-3 / DC-5 at 440 V (EF007026) | 27.0 | kW |
| Rated operation current Ie at DC-3 / DC-5 at 440 V (EF007035) | 75 | A |
| Modular version (EF001126) | true | |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 | |
| Number of auxiliary contacts as normally closed contact (EF001377) | 2 | |
| Type of electrical connection of main circuit (EF006819) | Screw connection | |
| Number of normally closed contacts as main contact (EF001375) | 0 | |
| Number of main contacts as normally open contact (EF001374) | 2 |
| Product | ||
| Article Number (Market Facing Number) | 3TC4814-0BM0 | |
| Product Description | Contactor size 4, 2-pole DC-4, Rated operating current 75 A Auxiliary switch 44 E(4 NO + 4 NC) Alternating current operation 220 V AC 50 Hz/264 V AC 60 Hz | |
| Product family | Not available | |
| Product Lifecycle (PLM) | PM300:Active Product | |
| Price data | ||
| Price Group | 41B | |
| Surcharge for Raw Materials | None | |
| Metal Factor | LDO----- | |
| Delivery information | ||
| Export Control Regulations | ECCN : N / AL : N | |
| Standard lead time ex-works | 15 Day/Days | |
| Net Weight (kg) | 3,530 Kg | |
| Product Dimensions (W x L x H) | Not available | |
| Packaging Dimension | 329,00 x 329,00 x 210,00 | |
| Package size unit of measure | MM | |
| Quantity Unit | 1 Piece | |
| Packaging Quantity | 1 | |
| Additional Product Information | ||
| EAN | 4011209099517 | |
| UPC | Not available | |
| Commodity Code | 85364900 | |
| LKZ_FDB/ CatalogID | CC-IC10 | |
| Product Group | 5807 | |
| Group Code | R711 | |
| Country of origin | Germany | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.03.2017 | |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |
| Classifications | ||
| Not available | ||
