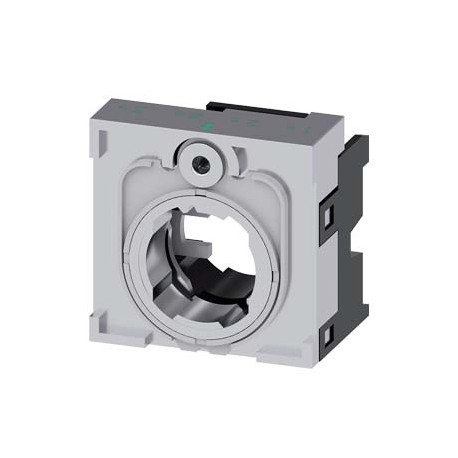

3SU1550-0AA10-0AA0 SIEMENS Holder for 3 modules, metal, Minimum order quantity 5 or a multiple thereof
3SU1550-0AA10-0AA0
15500
SIEMENS
5 Pcs.
Automation > Auxiliary contact block
Commanding and signaling devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A holder for control modules, specifically the Siemens 3SU1550-0AA10-0AA0 unit, serves as the structural mounting base for pushbuttons, indicator lights, and electrical contact blocks in operator control panels. Modular mounting adapters allow engineers to organize and secure multiple control and signaling elements efficiently on enclosure doors.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- product designation: Holders
- product type designation: 3SU1
- ● of the supplied holder: 3SU1550-0AA10-0AA0
- Actuator design of the actuating element: 3-way without module
- number of contact modules: 0
- Holder material of the holder: Plastic
- Display number of LED modules: 0
- General technical data product function positive opening: No
- ● diode: No
- ● lamp transformer: No
- ● light source: No
- ● series resistor: No
- insulation voltage rated value: 500 V
- degree of pollution: 3
- surge voltage resistance rated value: 6 kV
- ● according to IEC 60068-2-27: sinusoidal half-wave 15g / 11 ms
More info
▲Technical data
| holder, universal, 3-way, plastic/metal, minimum order quantity 5 or a multiple thereof >>new design<< | ||||||||||||||||||||||||||||||||||||||
| product brand name | SIRIUS ACT | |||||||||||||||||||||||||||||||||||||
| product designation | Holders | |||||||||||||||||||||||||||||||||||||
| product type designation | 3SU1 | |||||||||||||||||||||||||||||||||||||
| manufacturer's article number | ||||||||||||||||||||||||||||||||||||||
| ● of the supplied holder | 3SU1550-0AA10-0AA0 | |||||||||||||||||||||||||||||||||||||
| Actuator | ||||||||||||||||||||||||||||||||||||||
| design of the actuating element | 3-way without module | |||||||||||||||||||||||||||||||||||||
| number of contact modules | 0 | |||||||||||||||||||||||||||||||||||||
| Holder | ||||||||||||||||||||||||||||||||||||||
| material of the holder | Plastic | |||||||||||||||||||||||||||||||||||||
| Display | ||||||||||||||||||||||||||||||||||||||
| number of LED modules | 0 | |||||||||||||||||||||||||||||||||||||
| General technical data | ||||||||||||||||||||||||||||||||||||||
| product function positive opening | No | |||||||||||||||||||||||||||||||||||||
| product component | ||||||||||||||||||||||||||||||||||||||
| ● diode | No | |||||||||||||||||||||||||||||||||||||
| ● lamp transformer | No | |||||||||||||||||||||||||||||||||||||
| ● light source | No | |||||||||||||||||||||||||||||||||||||
| ● series resistor | No | |||||||||||||||||||||||||||||||||||||
| insulation voltage rated value | 500 V | |||||||||||||||||||||||||||||||||||||
| degree of pollution | 3 | |||||||||||||||||||||||||||||||||||||
| surge voltage resistance rated value | 6 kV | |||||||||||||||||||||||||||||||||||||
| shock resistance | ||||||||||||||||||||||||||||||||||||||
| ● according to IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms | |||||||||||||||||||||||||||||||||||||
| ● for railway applications according to EN 61373 | Category 1, Class B | |||||||||||||||||||||||||||||||||||||
| vibration resistance | ||||||||||||||||||||||||||||||||||||||
| ● according to IEC 60068-2-6 | 10 ... 500 Hz: 5g | |||||||||||||||||||||||||||||||||||||
| ● for railway applications according to EN 61373 | Category 1, Class B | |||||||||||||||||||||||||||||||||||||
| reference code according to IEC 81346-2 | U | |||||||||||||||||||||||||||||||||||||
| Substance Prohibitance (Date) | 10/01/2014 | |||||||||||||||||||||||||||||||||||||
| Auxiliary circuit | ||||||||||||||||||||||||||||||||||||||
| number of NC contacts for auxiliary contacts | 0 | |||||||||||||||||||||||||||||||||||||
| number of NO contacts for auxiliary contacts | 0 | |||||||||||||||||||||||||||||||||||||
| Connections/ Terminals | ||||||||||||||||||||||||||||||||||||||
| tightening torque of the screws in the bracket | 1 ... 1.2 N·m | |||||||||||||||||||||||||||||||||||||
| tightening torque | ||||||||||||||||||||||||||||||||||||||
| ● for grounding | 0.8 ... 1 N·m | |||||||||||||||||||||||||||||||||||||
| Ambient conditions | ||||||||||||||||||||||||||||||||||||||
| ambient temperature | ||||||||||||||||||||||||||||||||||||||
| ● during operation | -25 ... +70 °C | |||||||||||||||||||||||||||||||||||||
| ● during storage | -40 ... +80 °C | |||||||||||||||||||||||||||||||||||||
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted) | |||||||||||||||||||||||||||||||||||||
| Installation/ mounting/ dimensions | ||||||||||||||||||||||||||||||||||||||
| fastening method | without | |||||||||||||||||||||||||||||||||||||
| ● of modules and accessories | Front plate mounting | |||||||||||||||||||||||||||||||||||||
| height | 40 mm | |||||||||||||||||||||||||||||||||||||
| width | 30 mm | |||||||||||||||||||||||||||||||||||||
| shape of the installation opening | round | |||||||||||||||||||||||||||||||||||||
| installation width | 30 mm | |||||||||||||||||||||||||||||||||||||
| installation depth | 30.1 mm | |||||||||||||||||||||||||||||||||||||
| thickness of the front plate usable | 1 ... 6 mm | |||||||||||||||||||||||||||||||||||||
| Certificates/ approvals | ||||||||||||||||||||||||||||||||||||||
Downloads and manuals | ||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||
| Further information | ||||||||||||||||||||||||||||||||||||||
Information- and Downloadcenter (Catalogs, Brochures,…) | ||||||||||||||||||||||||||||||||||||||
Industry Mall (Online ordering system) | ||||||||||||||||||||||||||||||||||||||
Cax online generator | ||||||||||||||||||||||||||||||||||||||
Service&Support (Manuals, Certificates, Characteristics, FAQs,...) | ||||||||||||||||||||||||||||||||||||||
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...) | ||||||||||||||||||||||||||||||||||||||
| last modified: | 3/9/2022 | |||||||||||||||||||||||||||||||||||||
| Date 5/2/2022 | Subject to change without notice © Copyright Siemens 2022 | |||||||||||||||||||||||||||||||||||||
Additional data
| Product | |||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3SU1550-0AA10-0AA0 | ||||||||||||||||||||||||||||||
| Product Description | holder, universal, 3-way, plastic/metal, minimum order quantity 5 or a multiple thereof >>new design<< | ||||||||||||||||||||||||||||||
| Product family | Holders | ||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J | ||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||
| Standard lead time ex-works | 55 Day/Days | ||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,044 Kg | ||||||||||||||||||||||||||||||
| Packaging Dimension | 30,00 x 40,00 x 30,00 | ||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||
| Minimum order quantity | 5 | ||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||
| EAN | 4011209947733 | ||||||||||||||||||||||||||||||
| UPC | 804766074950 | ||||||||||||||||||||||||||||||
| Commodity Code | 85389099 | ||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | ||||||||||||||||||||||||||||||
| Product Group | 5452 | ||||||||||||||||||||||||||||||
| Group Code | R711 | ||||||||||||||||||||||||||||||
| Country of origin | Germany | ||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 | ||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000041 - Auxiliary contact block
| Value | Unit | |
|---|---|---|
| Type of electric connection (EF003961) | - | |
| Mounting method (EF000003) | - | |
| Number of fault-signal switches (EF007613) | - | |
| Number of contacts as change-over contact (EF008257) | 0 | |
| Number of contacts as normally open contact (EF008256) | 0 | |
| Number of contacts as normally closed contact (EF008255) | 0 | |
| Rated operation current Ie at AC-15, 230 V (EF001385) | - | A |
| Model (EF000010) | - | |
| Lamp holder (EF000048) | None |
