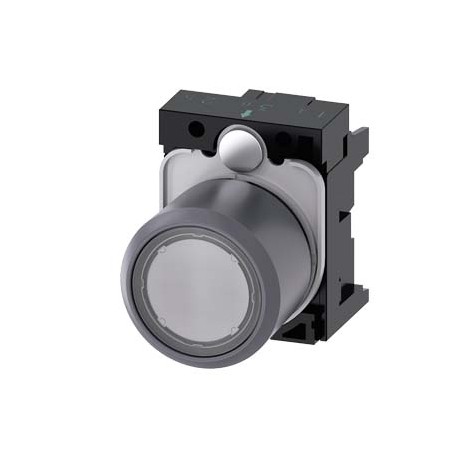

3SU1231-0EB70-0AA0 SIEMENS Pushbutton, compact, with extended stroke (12 mm), 22 mm, round, plastic with met..
3SU1231-0EB70-0AA0
12310
SIEMENS
1 Pcs.
Automation > Front element for push button
Commanding and signaling devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Siemens 3SU1231-0EB70-0AA0 Pushbutton is engineered for industrial control panels, offering operators a dependable tactile interface for managing machinery states and automation workflows. Compact modular control units streamline installation on control consoles and equipment doors.
Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Clear
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.3
- Width opening (EF004565): 29.5
- Height opening (EF004778): 20.3
- Suitable for illumination (EF001142): true
- Switching function latching (EF007447): FALSE
- Spring-return (EF001407): FALSE
- With front ring (EF006014): true
- Material front ring (EF005972): Metal
- Colour front ring (EF002429): Grey
- Product designation: Pushbuttons
- Design of the product: Complete unit
- Product type designation: 3SU1
- Product line: Plastic with metal front ring, matt, 22 mm
More info
▲ETIM: EC000221 - Front element for push button
| Value | Unit | |
|---|---|---|
| Degree of protection (NEMA), front side (EF011961) | - | |
| With protective cover (EF005500) | - | |
| Labelled (EF001537) | - | |
| Colour button (EF000190) | Clear | |
| Number of command positions (EF001372) | 1 | |
| Construction type lens (EF006253) | Round | |
| Hole diameter (EF000079) | 22.3 | mm |
| Width opening (EF004565) | 29.5 | mm |
| Height opening (EF004778) | 20.3 | mm |
| Type of button (EF001546) | Other | |
| Suitable for illumination (EF001142) | true | |
| Switching function latching (EF007447) | FALSE | |
| Spring-return (EF001407) | FALSE | |
| With front ring (EF006014) | true | |
| Material front ring (EF005972) | Metal | |
| Colour front ring (EF002429) | Grey | |
| Degree of protection (IP), front side (EF003118) | Other |
| Product | |||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3SU1231-0EB70-0AA0 | ||||||||||||||||||||||||||||||||||||
| Product Description | Pushbutton, compact, with extended stroke (12 mm), 22 mm, round, plastic with metal front ring, clear, pushbutton, flat, momentary contact type, with holder | ||||||||||||||||||||||||||||||||||||
| Product family | Actuators and indicators, 22 mm, plastic with metal front ring, matte | ||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||
| Price Group | 41J | ||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 3 Day/Days | ||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,070 Kg | ||||||||||||||||||||||||||||||||||||
| Product Dimensions (W x L x H) | Not available | ||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 60,00 x 130,00 x 40,00 | ||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||
| EAN | 4011209961524 | ||||||||||||||||||||||||||||||||||||
| UPC | 804766073205 | ||||||||||||||||||||||||||||||||||||
| Commodity Code | 85389099 | ||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | ||||||||||||||||||||||||||||||||||||
| Product Group | 5452 | ||||||||||||||||||||||||||||||||||||
| Group Code | R711 | ||||||||||||||||||||||||||||||||||||
| Country of origin | China | ||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 | ||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
