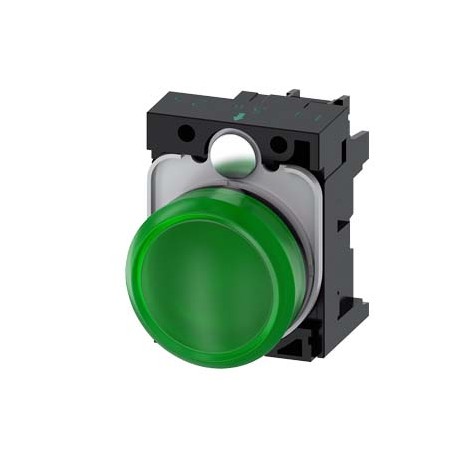

SIEMENS 3SU1102-6AA60-3AA0 3SU1102-6AA60-3AA0 SIEMENS Indicator lights, 22 mm, round, plastic, white, lens, smooth, with holder, LED mo.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3SU1102-6AA60-3AA0 SIEMENS Indicator lights, 22 mm, round, plastic, white, lens, smooth, with holder, LED mo..

3SU1102-6AA60-3AA0

11026

SIEMENS

1 Pcs.

Indicator lights, 22 mm, round, plastic, white, lens, smooth, with holder, LED module, with integrated LED 24 V AC/DC, Spring-type terminal 22MM SIGNALING LAMP, ROUND, PLASTIC, WHITE, LENS, SMOOTH, WITH STAND, LED MODULE, WITH INTEGRATED 24V AC/DC LED, SPRING TERMINALS.

Automation > Indicator light complete
Commanding and signaling devices

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Technical data

Indicator lights, 22 mm, round, plastic, white, lens, smooth, with holder, LED module, with integrated LED 24 V AC/DC, Spring-type terminal
product brand nameSIRIUS ACT
product designationIndicator lights
design of the productComplete unit
product type designation3SU1
product linePlastic, black, 22 mm
manufacturer's article number
● of supplied LED module3SU1401-1BB60-3AA0
● of the supplied holder3SU1550-0AA10-0AA0
● of supplied repeater3SU1001-6AA60-0AA0
Enclosure
number of command points1
Actuator
product extension optional light sourceYes
color
● of the actuating elementwhite
material of the actuating elementplastic
shape of the actuating elementround
outer diameter of the actuating element29.45 mm
Front ring
product component front ringNo
Holder
material of the holderPlastic
Display
number of LED modules1
General technical data
product component light sourceYes
insulation voltage rated value320 V
degree of pollution3
surge voltage resistance rated value4 kV
protection class IPIP66, IP67, IP69(IP69K)
● of the terminalIP20
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
shock resistance
● according to IEC 60068-2-27sinusoidal half-wave 15g / 11 ms
● for railway applications according to EN 61373Category 1, Class B
vibration resistance
● according to IEC 60068-2-610 ... 500 Hz: 5g
● for railway applications according to EN 61373Category 1, Class B
reference code according to IEC 81346-2P
Substance Prohibitance (Date)10/01/2014
Supply voltage
type of voltage of the supply voltage of the light sourceAC/DC
supply voltage of the light source at AC
● at 50 Hz rated value24 V
● at 60 Hz rated value24 V
● at 60 Hz rated value24 ... 24 V
supply voltage of the light source at DC
● rated value24 V
● rated value24 ... 24 V
relative negative tolerance of the supply voltage30 %
relative positive tolerance of the supply voltage25 %
Control circuit/ Control
inrush current maximum2 A
Connections/ Terminals
type of electrical connectionother
● of modules and accessoriesSpring-type terminal
type of connectable conductor cross-sections
● solid without core end processing2x (0.25 ... 1.5 mm²)
● finely stranded with core end processing2x (0.25 ... 0.75 mm²)
● finely stranded without core end processing2x (0.25 ... 1.5 mm²)
● at AWG cables2x (24 ... 16)
tightening torque of the screws in the bracket1 ... 1.2 N·m
Lamp
type of light sourceLED
color of the light sourcewhite
light intensity900 ... 1 400 mcd
Ambient conditions
ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)
Installation/ mounting/ dimensions
fastening methodfront plate mounting
● of modules and accessoriesFront plate mounting
height40 mm
width30 mm
shape of the installation openinground
mounting diameter22.3 mm
positive tolerance of installation diameter0.4 mm
mounting height11.8 mm
installation width29.5 mm
installation depth49.7 mm
Certificates/ approvals

Downloads and manuals

General Product ApprovalDeclaration of Conformity

CSA

CCC

Confirmation

UL

EAC

UK Declaration of Conformity

Declaration of ConformityTest CertificatesMarine / Shipping

EC/EU-Declaration of Conformity

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

Marine / Shippingother

RMRS / Russian Maritime Register

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/26/2022
Date
5/14/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SU1102-6AA60-3AA0
Product DescriptionIndicator lights, 22 mm, round, plastic, white, lens, smooth, with holder, LED module, with integrated LED 24 V AC/DC, Spring-type terminal
Product familyActuators and indicators, 22 mm, round, plastic, black
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorL-O-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works55 Day/Days
Net Weight (kg)0,042 Kg
Packaging Dimension60,00 x 80,00 x 30,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209958074
UPC804766070747
Commodity Code85318070
LKZ_FDB/ CatalogIDCC-IC10
Product Group5452
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2014
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-12-23
eClass7.127-37-12-23
eClass827-37-12-23
eClass927-37-12-23
eClass9.127-37-12-23
ETIM5EC000272
ETIM6EC000272
ETIM7EC000272
ETIM8EC000272
IDEA44766
UNSPSC1539-12-15-34

ETIM data

ETIM: EC000272 - Indicator light complete

Value Unit
Type of electric connection (EF003961) -
Degree of protection (IP) (EF005474) -
Voltage type (EF000187) -
Number of indicator lights (EF001965) 1
Colour lens (EF000207) -
Type of lamp socket (EF008229) -
With light source (EF005905) true
Rated operating voltage Ue (EF002418) ['-', '-']V
Construction type lens (EF006253) Round
Type of lens (EF008343) Flat
Hole diameter (EF000079) 22.3mm
Width opening (EF004565) 29.5mm
Height opening (EF004778) 11.8mm
With front ring (EF006014) false
Material front ring (EF005972) -
Colour front ring (EF002429) -
Degree of protection (NEMA) (EF011959) NEMA 1, 2, 3, 3R, 4, 4X, 12, 13



Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
