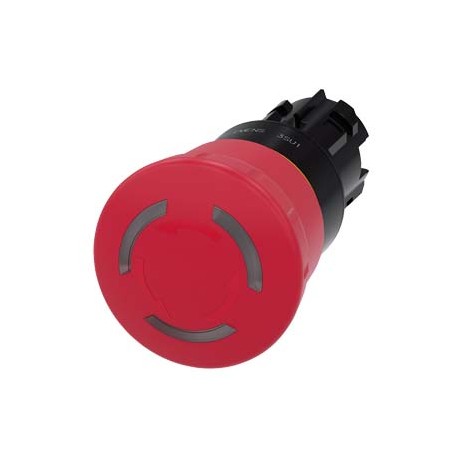

3SU1001-1HB20-0AA0 SIEMENS EMERGENCY STOP mushroom pushbutton, illuminable, 22 mm, round, plastic, red, 40 m..
3SU1001-1HB20-0AA0
3SU1001-1HB20-0AA0
SIEMENS
1 unit
Automation > CONTROL AND CONTACTORS
Commanding and signaling devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for safety-critical applications, the Siemens 3SU1001-1HB20-0AA0 SIEMENS EMERGENCY STOP mushroom pushbutton provides dependable mechanical latching to instantly interrupt power to industrial equipment during an emergency. Such operator controls are standard requirements on industrial machinery to protect personnel and satisfy plant safety regulations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- product designation: EMERGENCY STOP mushroom pushbuttons
- design of the product: Actuating/signaling element
- product type designation: 3SU1
- product line: Plastic, black, 22 mm
- Enclosure number of command points: 1
- Actuator design of the actuating element: positive latching
- principle of operation of the actuating element: latching
- light source: Yes
- contact module: Yes
- of the actuating element: red
- material of the actuating element: plastic
- shape of the actuating element: round
- outer diameter of the actuating element: 40 mm
- type of unlocking device: rotate-to-unlatch mechanism
- number of switching positions: 2
- Front ring product component front ring: No
More info
▲Technical data
Additional data
| Product | |||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3SU1001-1HB20-0AA0 | ||||||||||||||||||||||||||||||||||||
| Product Description | EMERGENCY STOP mushroom pushbutton, illuminable, 22 mm, round, plastic, red, 40 mm, positive latching, acc. to EN ISO 13850, rotate-to-unlatch | ||||||||||||||||||||||||||||||||||||
| Product family | Actuators and indicators, 22 mm, round, plastic, black | ||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J | ||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 55 Day/Days | ||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,052 Kg | ||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 45,00 x 85,00 x 45,00 | ||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||
| EAN | 4011209964198 | ||||||||||||||||||||||||||||||||||||
| UPC | 804766064029 | ||||||||||||||||||||||||||||||||||||
| Commodity Code | 85389099 | ||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | ||||||||||||||||||||||||||||||||||||
| Product Group | 5454 | ||||||||||||||||||||||||||||||||||||
| Group Code | R711 | ||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | ||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 | ||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC002034 - Emergency stop complete
| Value | Unit | |
|---|---|---|
| Degree of protection (IP) (EF005474) | - | |
| Number of contacts as normally closed contact (EF008255) | - | |
| Connection type auxiliary circuit (EF006820) | - | |
| Hole diameter (EF000079) | - | mm |
| Diameter cap (EF001423) | - | mm |
| With lighting (EF003829) | - | |
| Number of contacts as normally open contact (EF008256) | - | |
| Mounting method (EF000003) | - | |
| Unlocking method (EF001403) | - |
